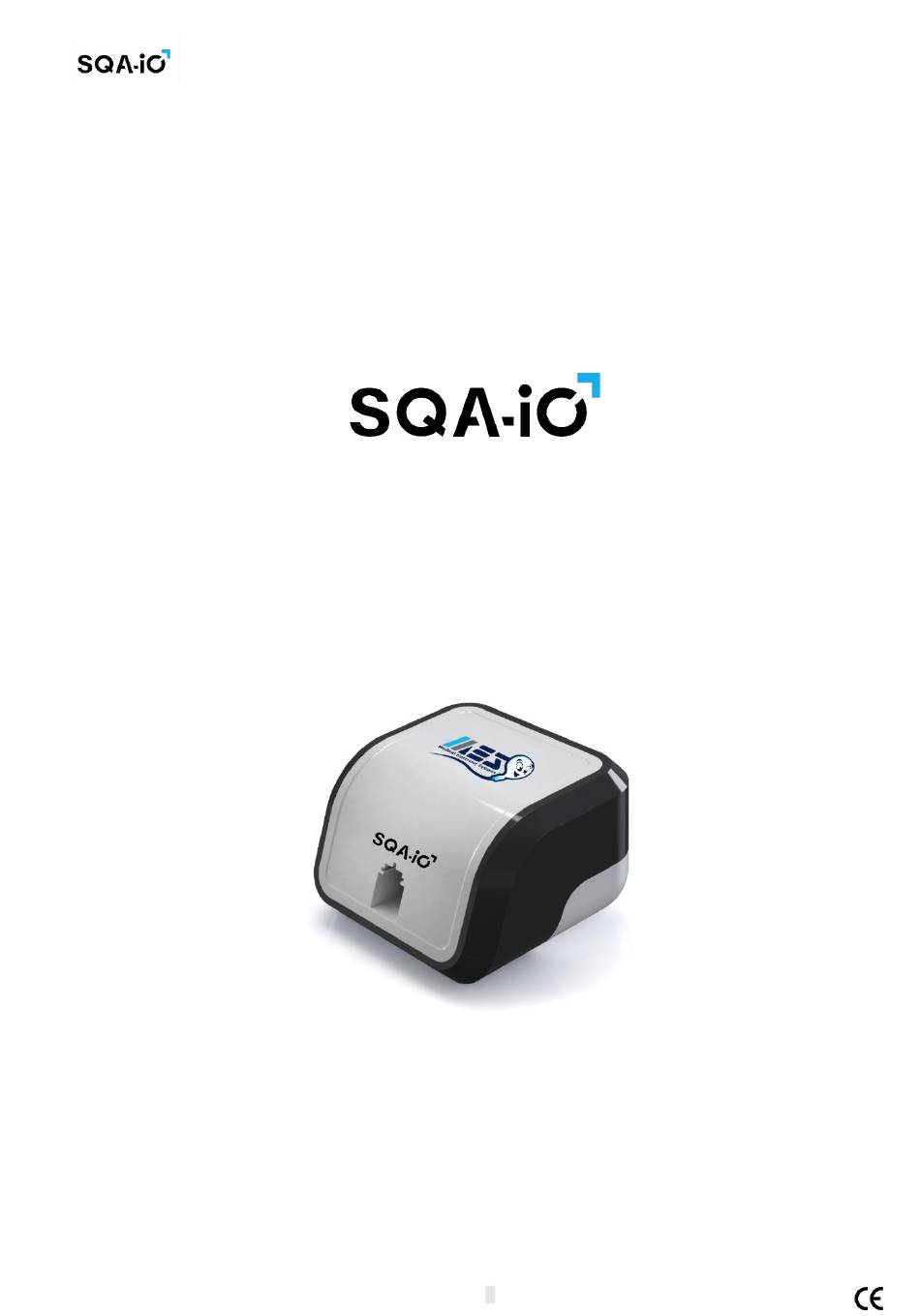

- Page 1 Service Manual Version 187.5.1 Service Manual Version: 187.5.1 Catalog#: IO-ML-01678-00 Rev: August 2021 AUGUST 3, 2021 SQA-iO Service Manual...
-
Page 2: Table Of Contents
Internal QC Printing the Service Report SECTION IV: Troubleshooting Troubleshooting SECTION IX: Appendixes Cleaning the SQA-iO Troubleshooting Guide Filling the Testing Capillary with a Normal Volume Sample Filling the Testing Capillary with a Low Volume Sample AUGUST 3, 2021 SQA-iO Service Manual... - Page 3 Service Manual Version 187.5.1 SECTION I: Introduction The SQA-iO is a high-performance PC-based analytical medical device that tests FRESH semen samples. The device works with a computer application that contains the device, patient, sample, test results and facility information. After collection and preparation, a ~1 ml semen sample is withdrawn into an SQA capillary disposable delivery system, inserted into the SQA-iO where key parameters are collected, and sample test results are processed utilizing proprietary technology and algorithms.
-
Page 4: Section Ii: System Specifications And Requirements
• Operating system compatibility: Windows 7 Professional x32 or above • Communication Ports: one USB port • Internet Access: 5mb per second Front Panel: Measurement Compartment (Capillary insertion for testing) Measurement Compartment Capillary chamber AUGUST 3, 2021 SQA-iO Service Manual... -
Page 5: Usb Port
DAILY: When running samples AFTER EVERY 10-15 tests and/or for ANY spillage Use only manufacturer’s cleaning kit/supplies to prevent damaging the device Refer to the “Cleaning the Capillary Compartment” Appendix in this manual for detailed instructions AUGUST 3, 2021 SQA-iO Service Manual... -
Page 6: Testing And Operting Requirements
SECTION III: Quality Control Controls Overview Internal Controls: A series of tests are automatically run when the SQA-iO is turned on and prior to testing. These internal QC tests check the calibration settings and the internal operating system. PASS/FAIL QC... -
Page 7: Printing The Service Report
Instructions for printing the SQA-iO SERVICE parameters to prepare for technical support: If a Self-Test failure occurs, the related status icon in the SQA-iO HOME SCREEN will turn red. Click on the icon to view instructions for how to resolve the problem:... -
Page 8: Cleaning The Sqa-Io
Fig. 2 Clean the chamber • Insert the long brush supplied in your device kit (bristle side down) into the chamber of the SQA-iO in the same way a testing capillary would be inserted (Fig 1 and 2). • Pull the brush out, applying downward pressure to sweep or ‘dust off’... -
Page 9: Troubleshooting Guide
TROUBLESHOOTING OPERATING ERRORS: This table describes what to do when a problem occurs with the SQA-iO app access or when running a test or receiving an error message. It is important to note: If the SQA-iO case is opened by the user, it is no longer under warranty. - Page 10 Suggestion: Clean the device Zero Level passed the self-test Zero Level failed the self-test ZERO LEVEL 500 – 525 Suggestion: Clean the SQA-iO. Maintain ambient temperature between 20 – 25°C / 68 – 77°C Reference 2 passed the self-test OPTIMAL: 2800 –...
-
Page 11: Filling The Testing Capillary With A Normal Volume Sample
(Figure 1). Continue to aspirate the sample until it appears in the Luer adaptor (Figure 2). Figure 2 AUGUST 3, 2021 SQA-iO Service Manual... - Page 12 6. The capillary is now ready. 7. Insert the testing capillary into the measurement compartment with the blue stopper down. Push it in as far as it will go to ensure that the capillary is properly seated. AUGUST 3, 2021 SQA-iO Service Manual...
-
Page 13: Filling The Testing Capillary With A Low Volume Sample
SQA-iO Figure 2: Detach the syringe Figure 3: Push the piston out Figure 4: Remove the piston PLEASE NOTE: Test Low Volume samples as soon as the sample is aspirated into the capillary. AUGUST 3, 2021 SQA-iO Service Manual...
