SQA-Vision
SQA-Vision

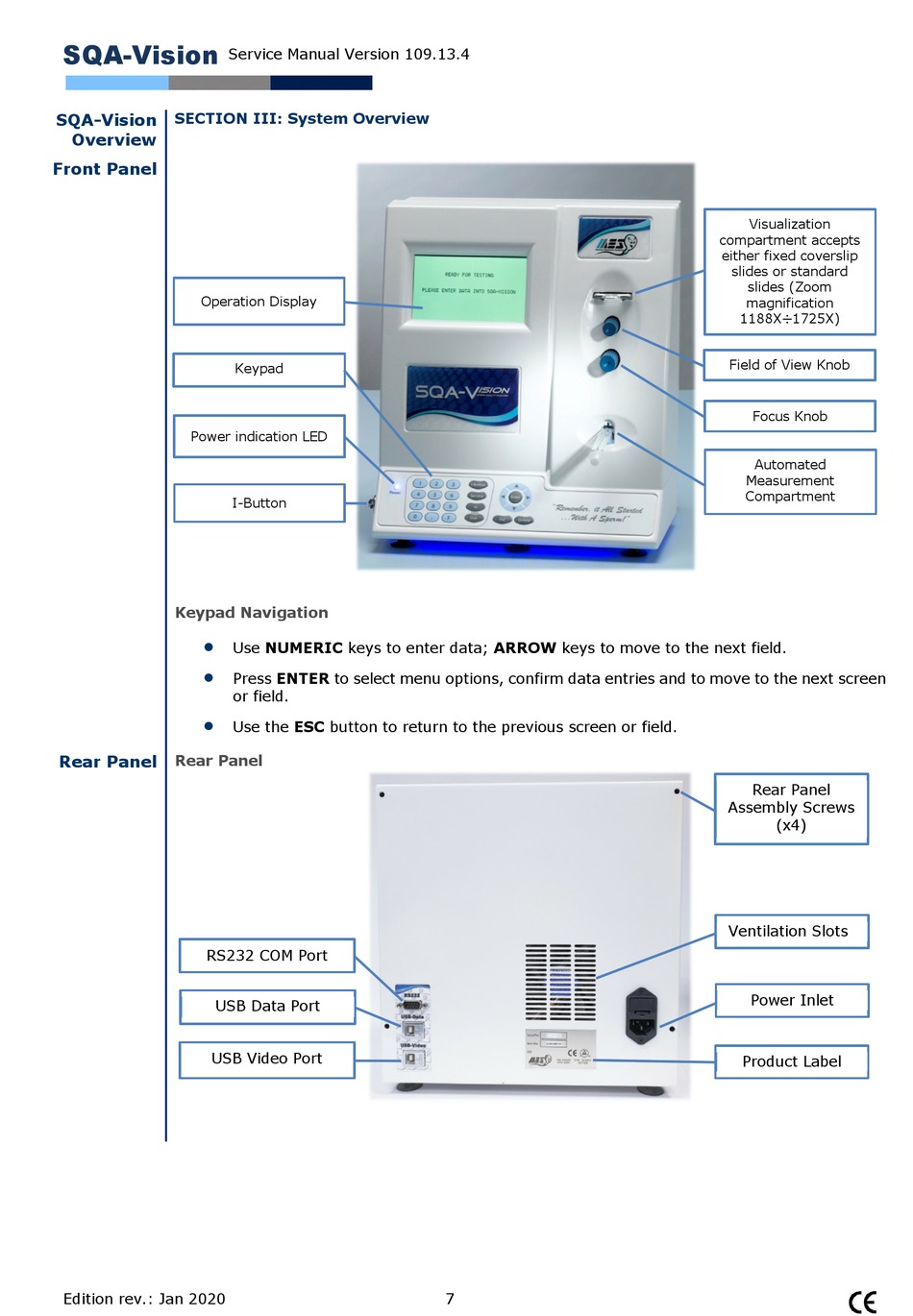

SECTION III: System Overview

Overview

Front Panel

Operation Display
Power indication LED
Keypad Navigation




Rear Panel

Rear Panel
RS232 COM Port
USB Data Port
USB Video Port
Edition rev.: Jan 2020
Service Manual Version 109.13.4
Keypad
I-Button
Use NUMERIC keys to enter data; ARROW keys to move to the next field.
Press ENTER to select menu options, confirm data entries and to move to the next screen
or field.
Use the ESC button to return to the previous screen or field.
7
Visualization
compartment accepts
either fixed coverslip
slides or standard
slides (Zoom
magnification
1188X÷1725X)
Field of View Knob
Focus Knob
Automated
Measurement
Compartment
Rear Panel
Assembly Screws
(x4)
Ventilation Slots
Power Inlet
Product Label
