2.7.4 Drum brake

The drum brake, unlike the wheel lock, is also suitable as
a driving brake.

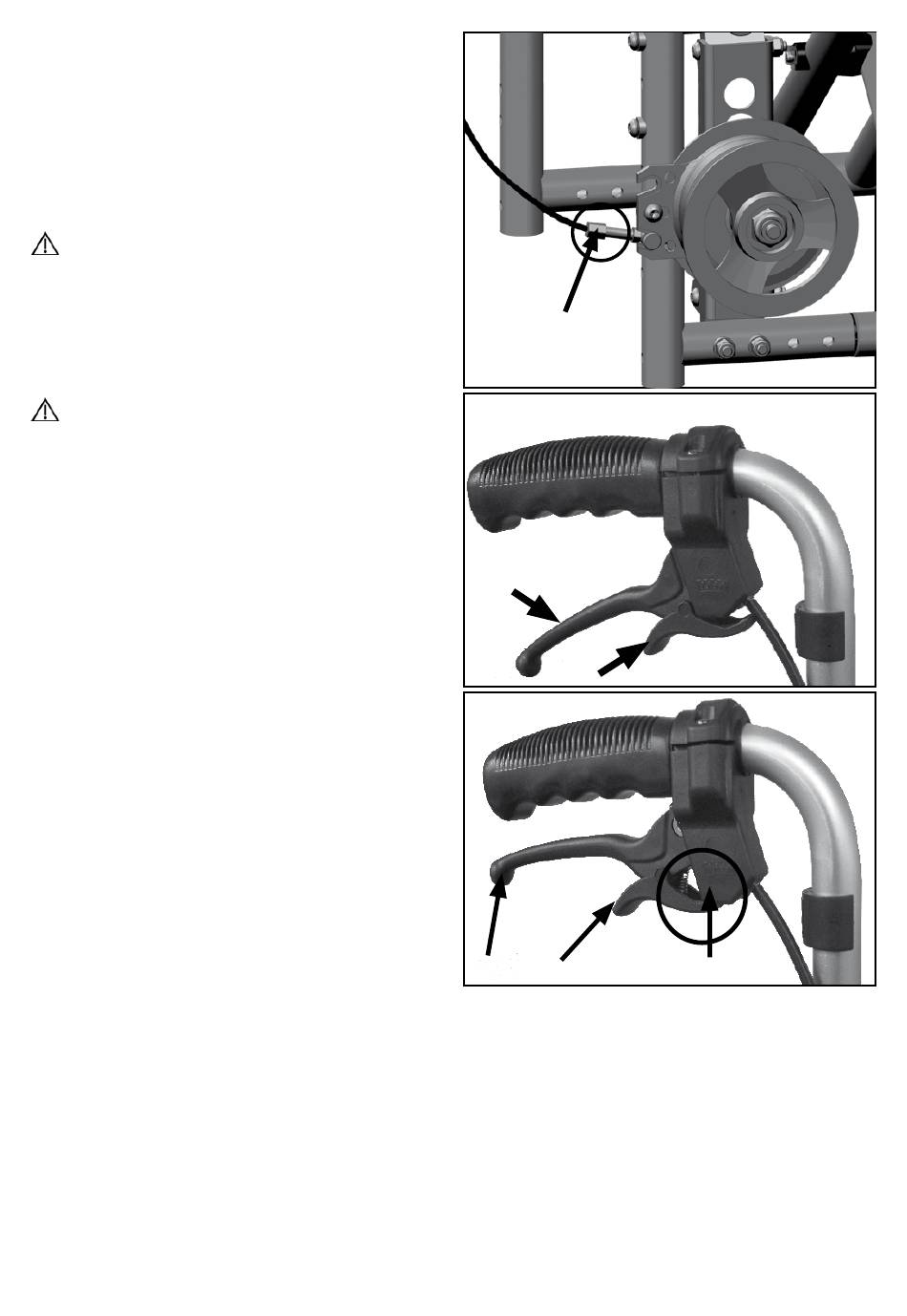

(1) The adjustment of the drum brake occurs through a
screw on the bottom end of the brake cable (A). By turning
the screw counter clockwise the brake cable can be tight-
ened.
ATTENTION
The brake shoe of the drum brake can react very sensitive
to dirt and lint etc. Be sure to clean the brake pad regu-
larly with a dry paint brush or with a blow dryer. Be sure
when removing or attaching the wheels with the quick re-
lease axle that you do not break the brake pad. This would
cause a significant safety risk.
ATTENTION: RISK OF BRUISING
(2+3) When blocking the raster lever you can bruise your
fingers (C) under adverse circumstances.
