Hardware

Mechanical drawings

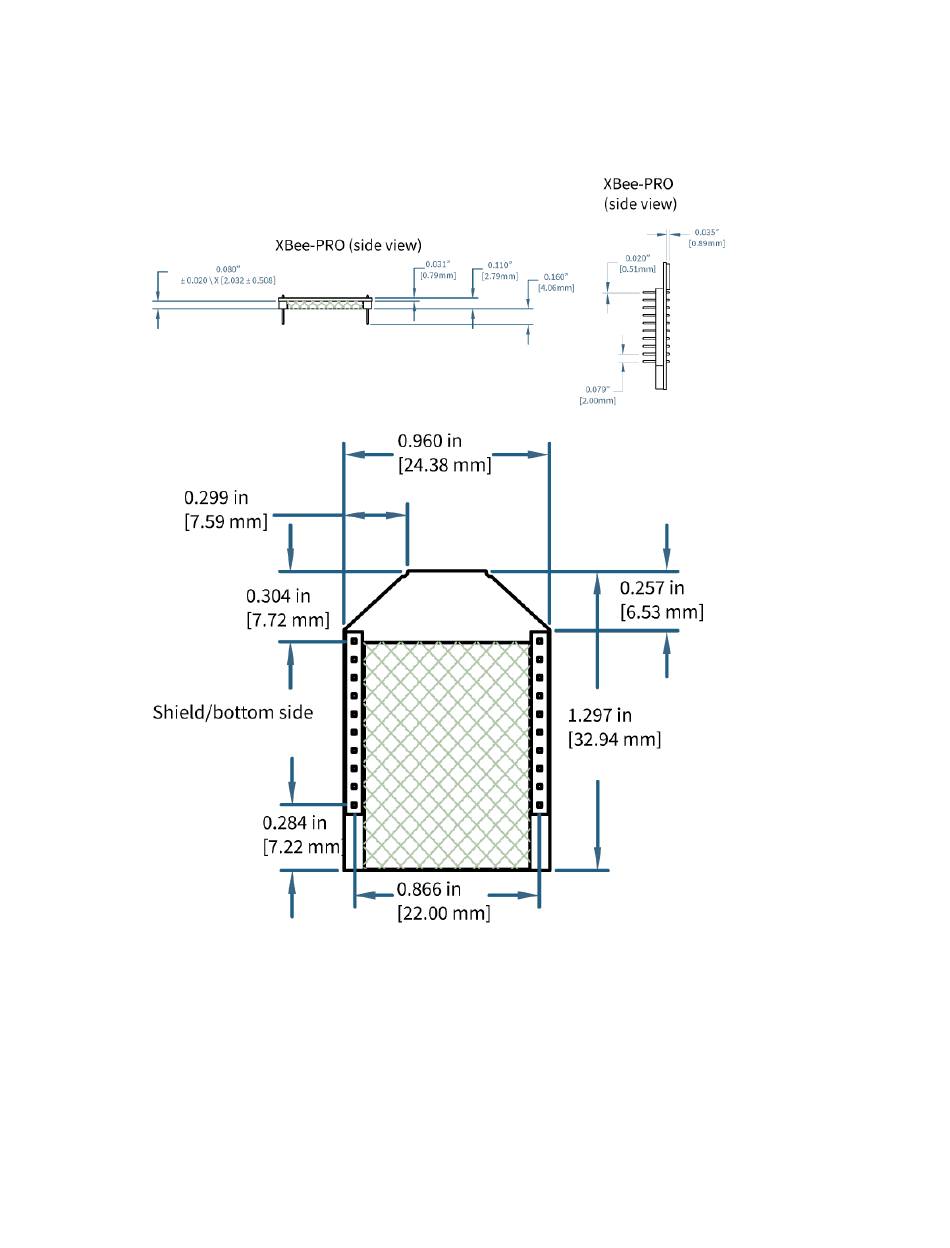

The following figures show the mechanical drawings for the XBee/XBee-PRO DigiMesh 2.4. The
drawings do not show antenna options.
The following drawings show the RPSMA device.
XBee/XBee-PRO DigiMesh 2.4 RF Module User Guide

Mechanical drawings
