A.3 Unit Dimensions (Rear View with Mounting Hole
Locations)

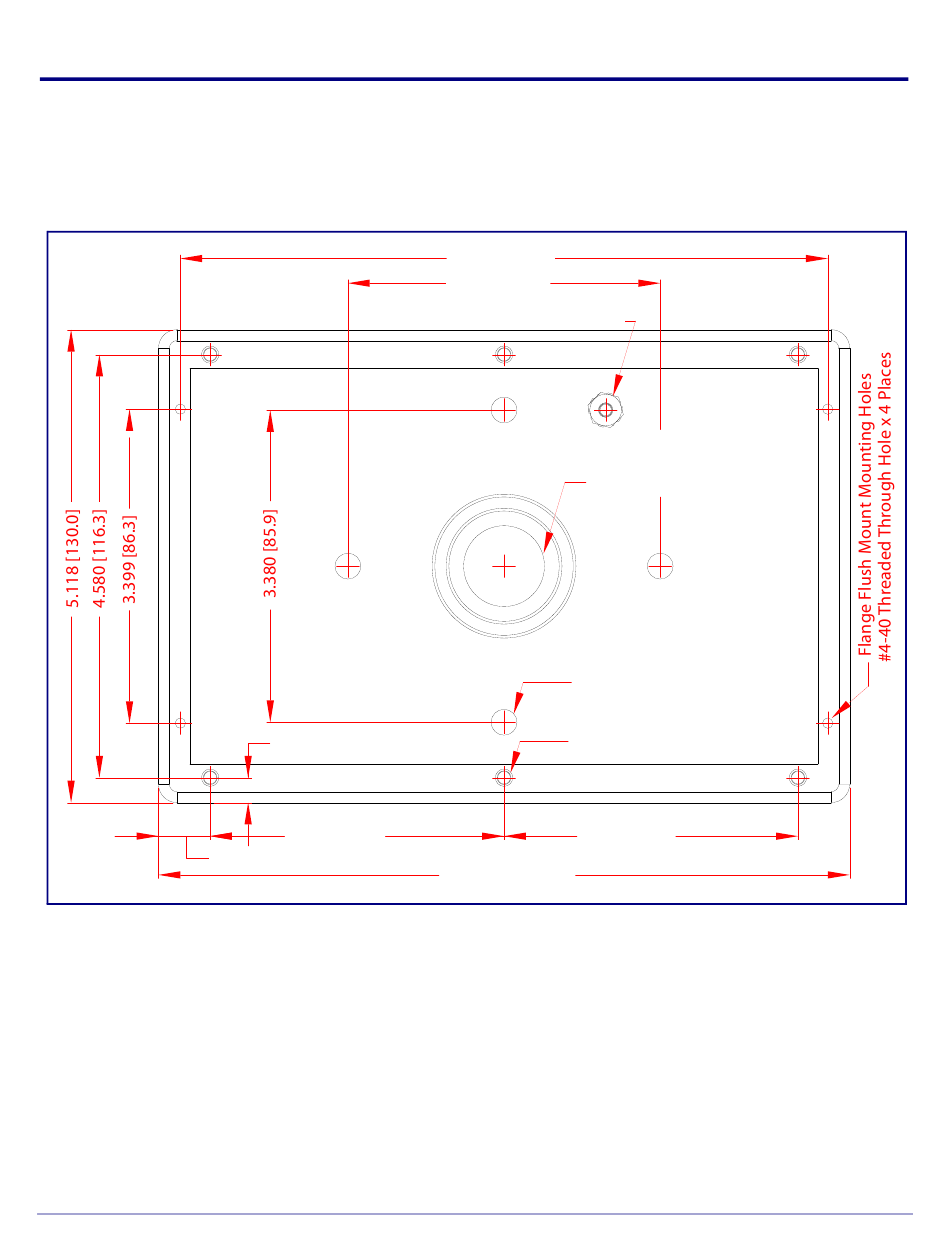

Figure A-2. Unit Dimensions—Rear View with Mounting Hole Locations
0.559 [14.2]
Operations Guide
7.008 [178.0]
3.380 [85.9]
Ground Lug Fits #8 Ring Terminal
Hex Nut Socket Size 5/16" or 8mm
0.269 [6.8]
3.181 [80.8]
Dimensions are in Inches [Millimeter]
931667A
Mounting the SIP Outdoor Video Intercom with RFID
Conduit Hole Fits
1/2" EMT Compression Connector
Ø0.875 [Ø22.2]
Mounting Holes Fits
1/4" Screws
Ø0.280 [Ø7.1]
#6-32 Threads
Faceplate Mounting Holes
3.181 [80.8]
7.480 [190.0]
Mount the Intercom
