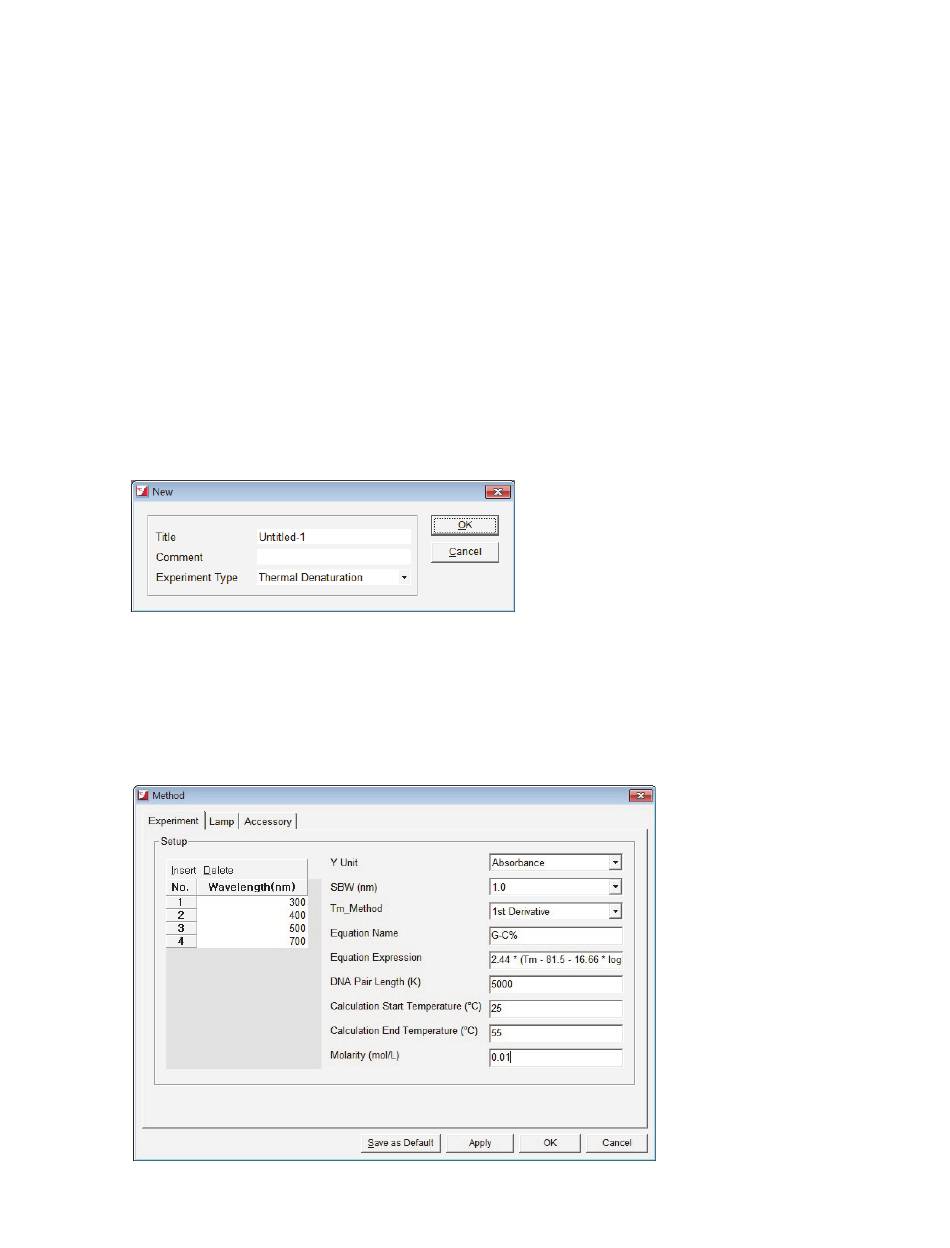

PerkinElmer Lambda 365 Peltier Temp Ctrl Unit Multi Installation Instructions Manual page 23

Measurement
Thermal Denaturation Mode
1. Install the 6-Position Peltier Controlled Cell Changer referring to section Installation (page 13).
2. Close the sample compartment cover and turn on the instrument.
Before System Self Test is performed, the 6-Position Peltier Controlled Cell Changer should be installed.
NOTE:
Otherwise, the instrument can be damaged electrically and do not operate properly.
Start the System Self Test after warming up the system for at least 20 minutes.
NOTE:
3. Double-click on the UV Express folder and select Thermal Denaturation mode.
4. Select OK after finishing the System Self Test.
5. Select New to open a new window and select OK.
When the 6-Position Peltier Controlled Cell Changer is connected for the first time, you need to correct
NOTE:
the cell position. Calibrate the beam position of the 6-Position Peltier Controlled Cell Changer, see
section Calibration of Multi-Cell Position (page 33).
6. Open the method in main menu or mode icon on the left side of the main window. Set parameters
for Experiment.
23
09931463A
