When the 6-Position Peltier Controlled Cell Changer is connected for the first time, you need to correct
NOTE:
the cell position. Calibrate the beam position of the 6-Position Peltier Controlled Cell Changer, referring
to the see section Calibration of Multi-Cell Position (page 33).

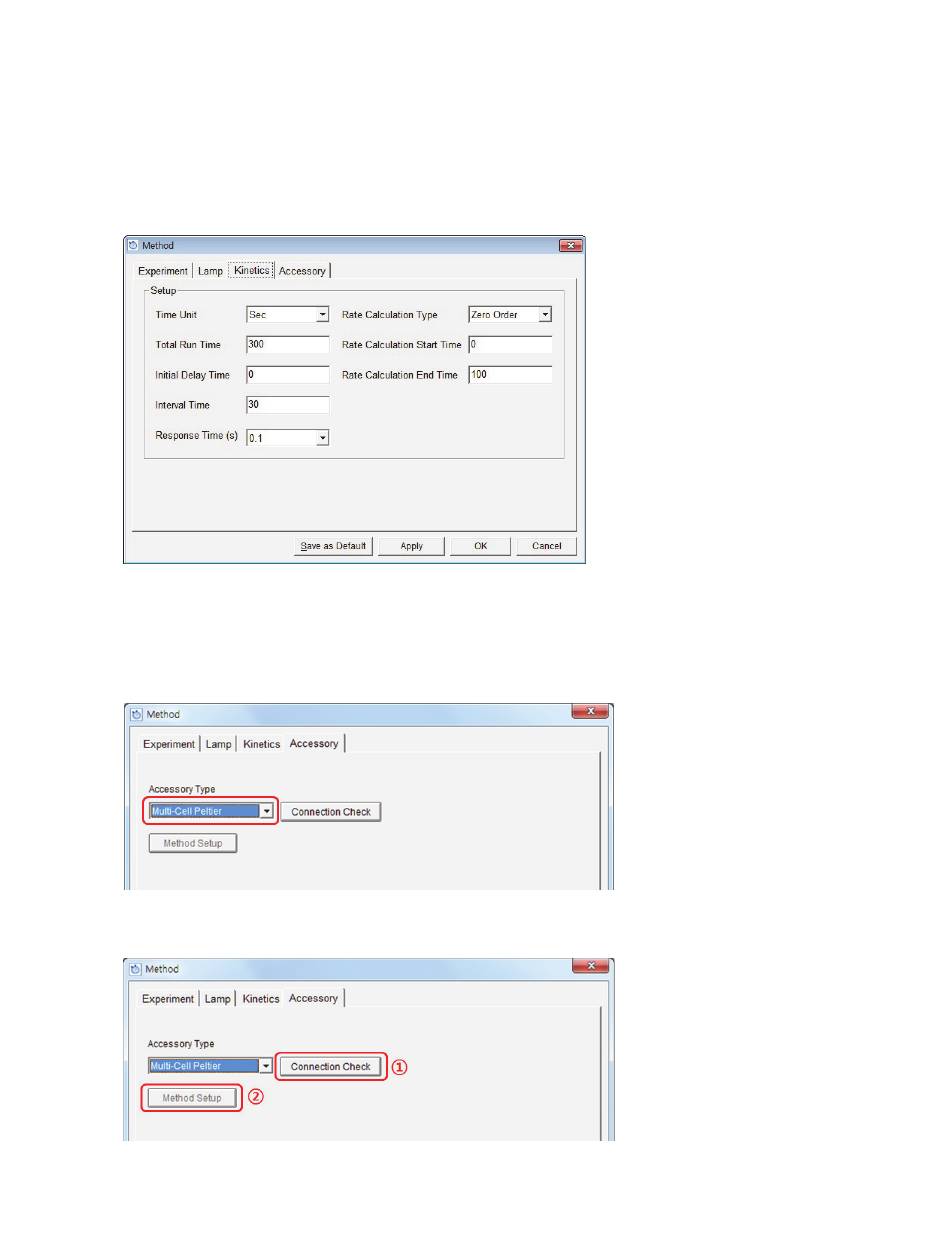

6. Open the method in main menu or click the mode icon on the left side of the main window. Set
parameters for Experiment.
If you want to know about the meaning of each parameter of method tabs and other modes more
NOTE:
detail, please refer to X. Measurement Modes of the UV Express Software User Guide.
7. After setting parameters for Experiment, Lamp and Kinetics, click Accessory tab. Select Multi-Cell
Peltier.
8. Select Connection check, the Method Setup will be activated. Select Method Setup.
