After filling up the coolant, check the 'LOW LEVEL' LED is not lit on.

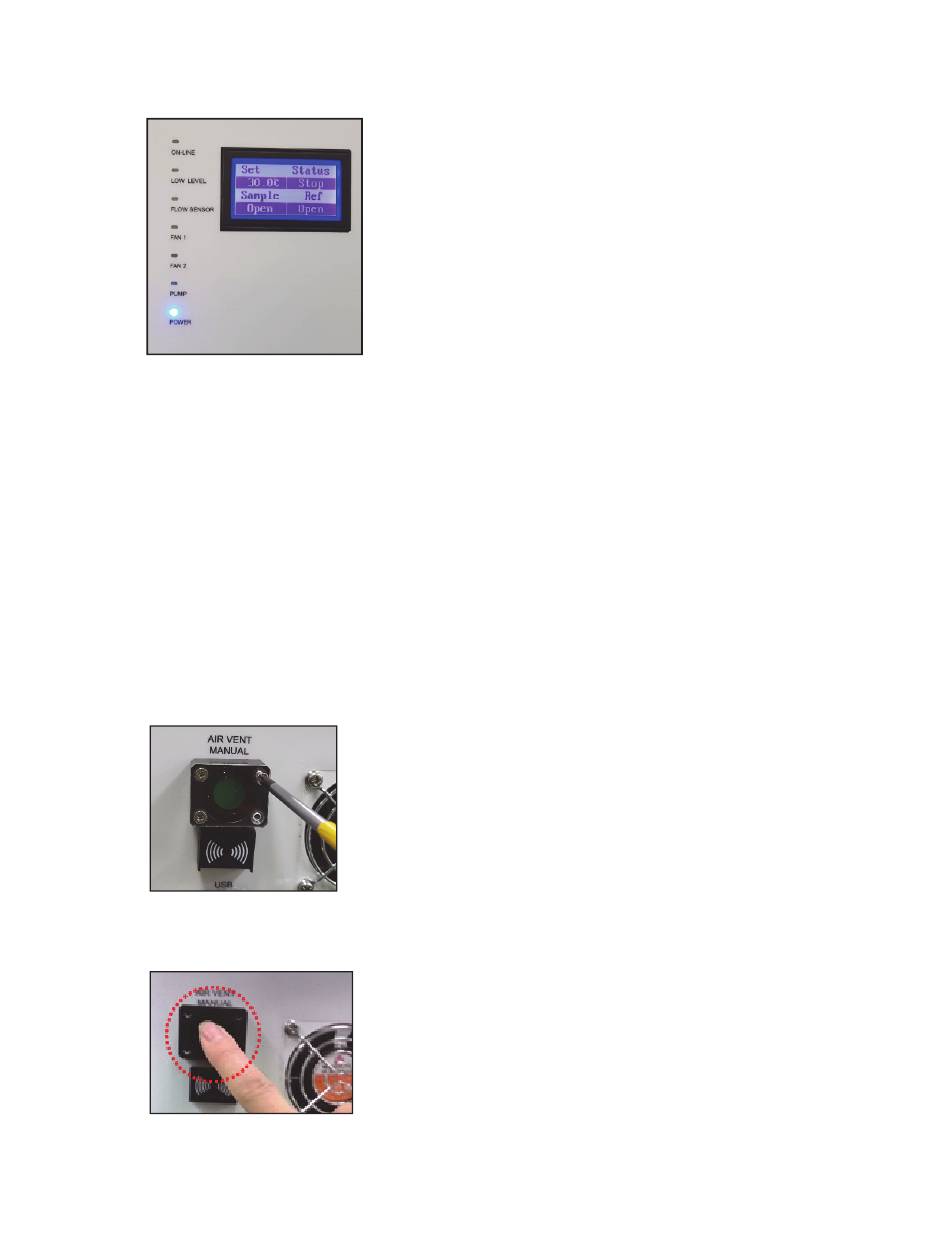

Figure 16 Coolant level
11.
Close the lid of the coolant inlet.
12.
Turn off the AC power switch of the Peltier Temperature Controller 201.
13.
Push the Air Vent Manual button off.
14.
Fasten Phillips screws (4 each) on the Air Vent Manual button cover using Phillips screwdriver.
15.
Install the 6-Position Peltier Controlled Cell Changer referring to the Installation section (page
13).
How to Drain the Coolant
1.
Turn off the Peltier Temperature Controller 201.
2.
Remove the Phillips screws (4 each) on the Air Vent Manual cover using Phillips screwdriver.
Figure 17 Removing Phillips screws
3.
Push the Air Vent Manual button on.
Figure 18 Push the button
11
09931463A
