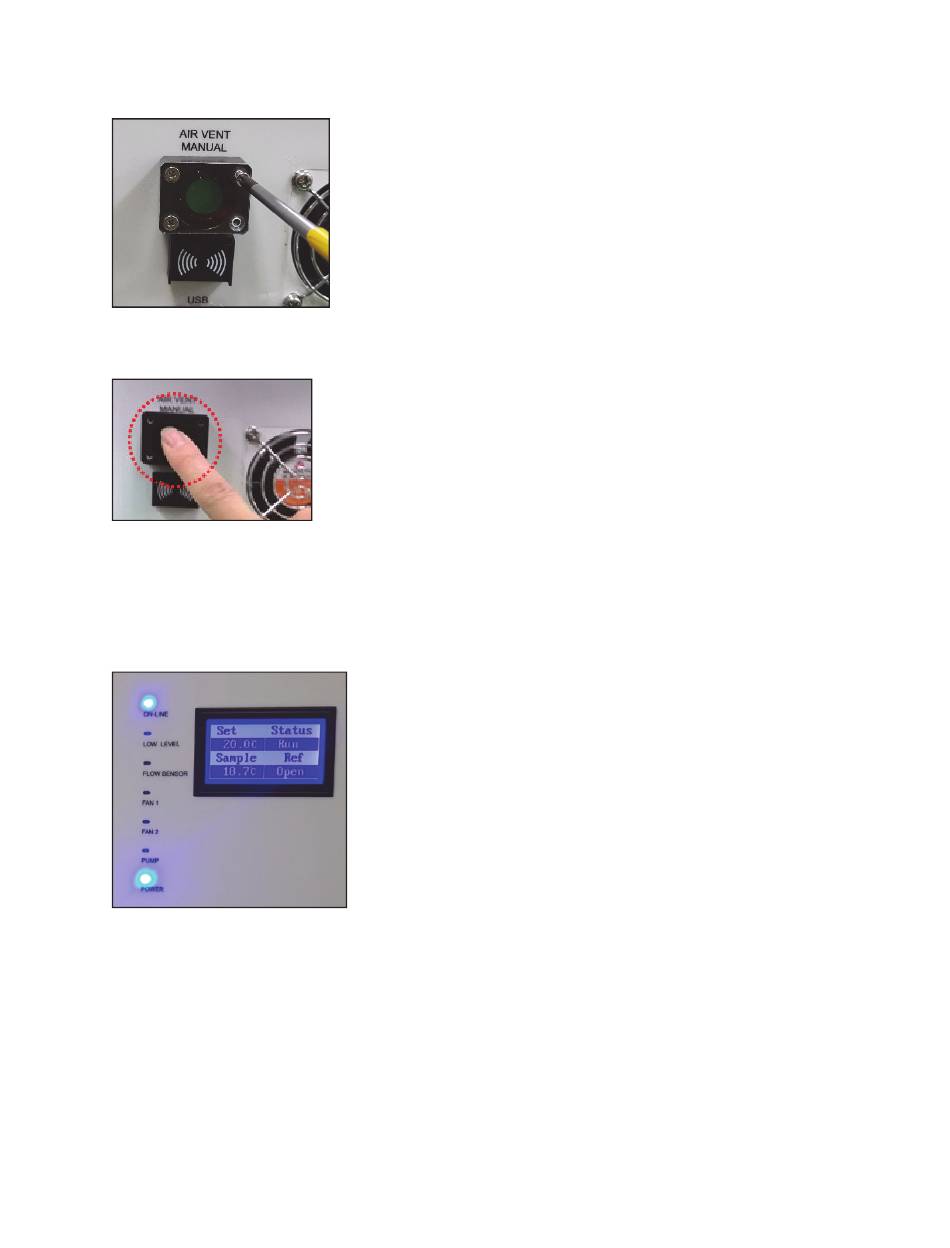

2. Remove Phillips screws (4 each) of Air Vent Manual button cover using Phillips screwdriver.
3. Push the Air Vent Manual button on.
4. Restart the Peltier Temperature Controller 201.
5. Check whether the tubing is bent or it is connected correctly. And check if coolant flows properly for
about one minute.
6. Check if the LED blinks of FLOW SENSOR and PUMP stop.
7. Close the lid of the coolant inlet.
8. Turn off the AC power switch of the Peltier Temperature Controller 201.
9. Push the Air Vent Manual button off.
10. Fasten Phillips screws (4 each) on the Air Vent Manual button cover using Phillips screwdriver.
11. If the FLOW SENSOR and PUMP LED is continuously on, contact your PerkinElmer Service
representative.
