Fix and tighten the 6-Position Peltier Controlled Cell Changerwith the Phillips round head screws.

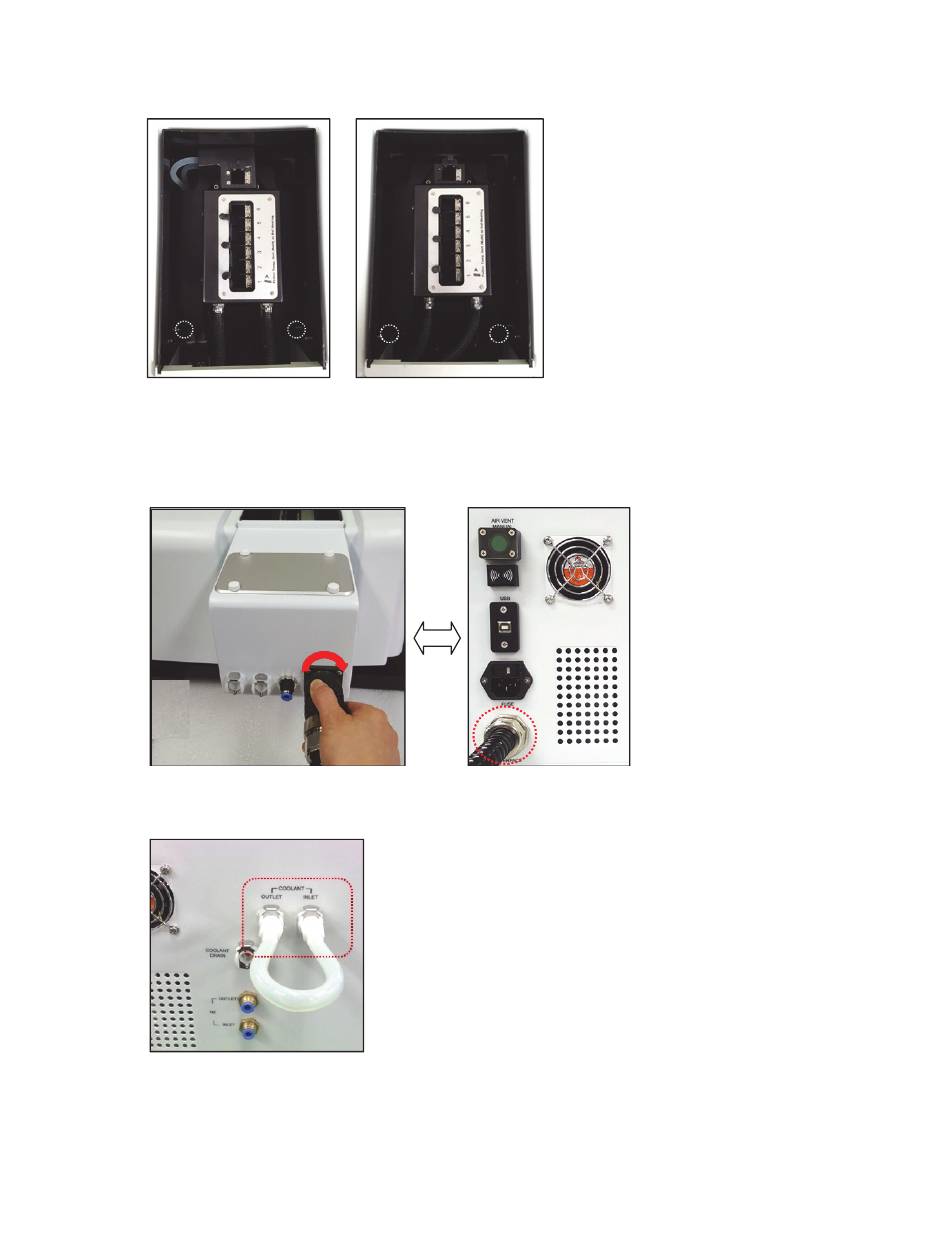

Figure 27 Location of screws (with heated reference or without heated reference)
8.
Connect the accessory interface cable of the Peltier Temperature Controller 201 to the interface
connector of the 6-Position Peltier Controlled Cell Changer.
Figure 28 Connecting the accessory interface cable
9.
Disconnect the hose for coolant circulation.
Figure 29 Disconnecting the hose for coolant circulation
If you disconnect the hose, the remaining coolant in the hose may flow out of the hose. Be careful not
NOTE:
to touch the coolant with your bare hands.
