4.

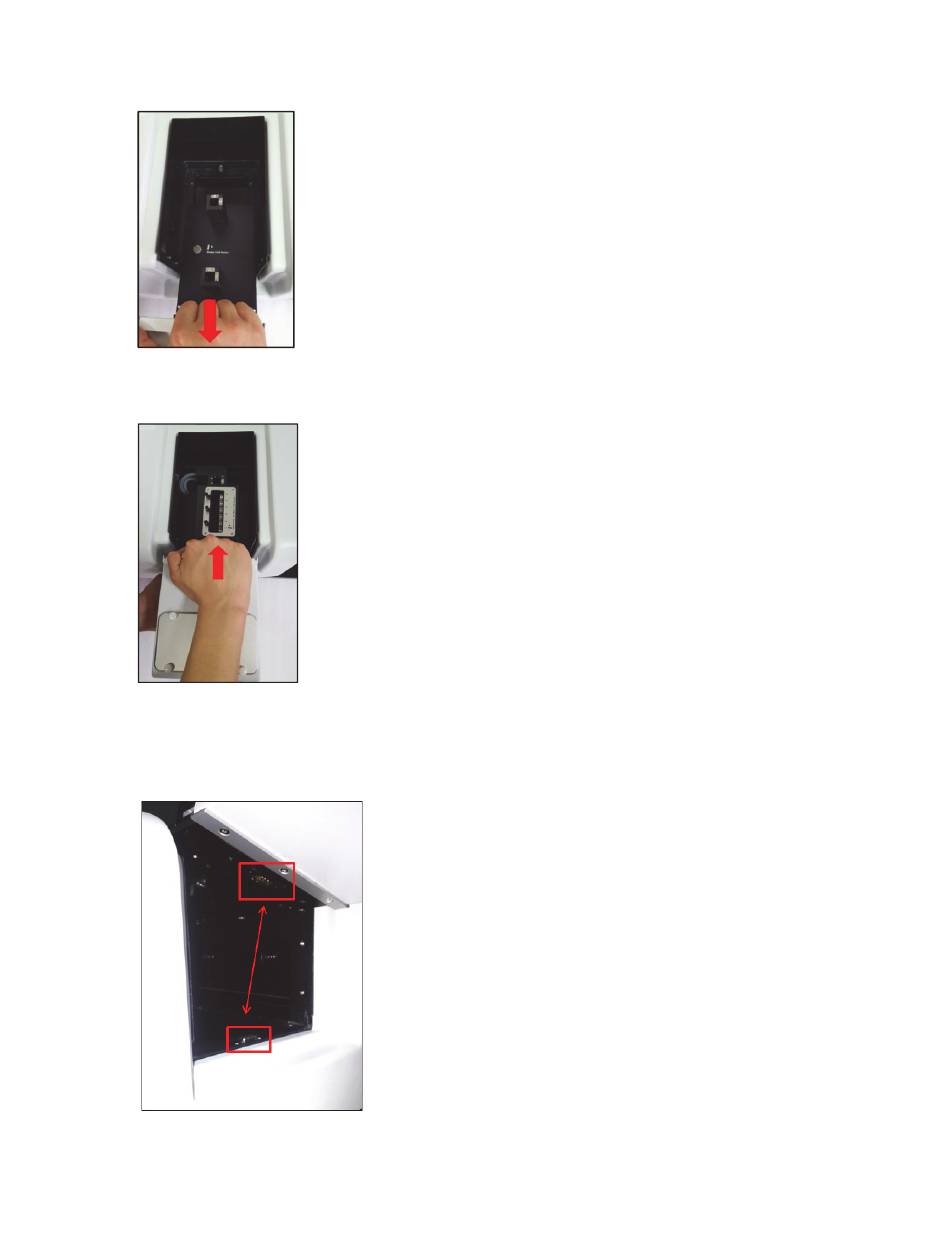

Pull out the cell holder and base plate by hand.
Figure 24 Pulling out the cell holder and base plate
5.
Insert the 6-Position Peltier Controlled Cell Changerin the sample compartment.
Figure 25 Inserting the 6-Position Peltier Controlled Cell Changer
6.
Gently press the 6-Position Peltier Controlled Cell Changer to connect the communication port
(male) under the bottom of the 6-Position Peltier Controlled Cell Changer to the port (female) in
the sample compartment.
Figure 26 Connecting the communication ports
14
09931463A
