Power-Supply Circuitry

Power-Supply
Circuitry

Clock Circuitry

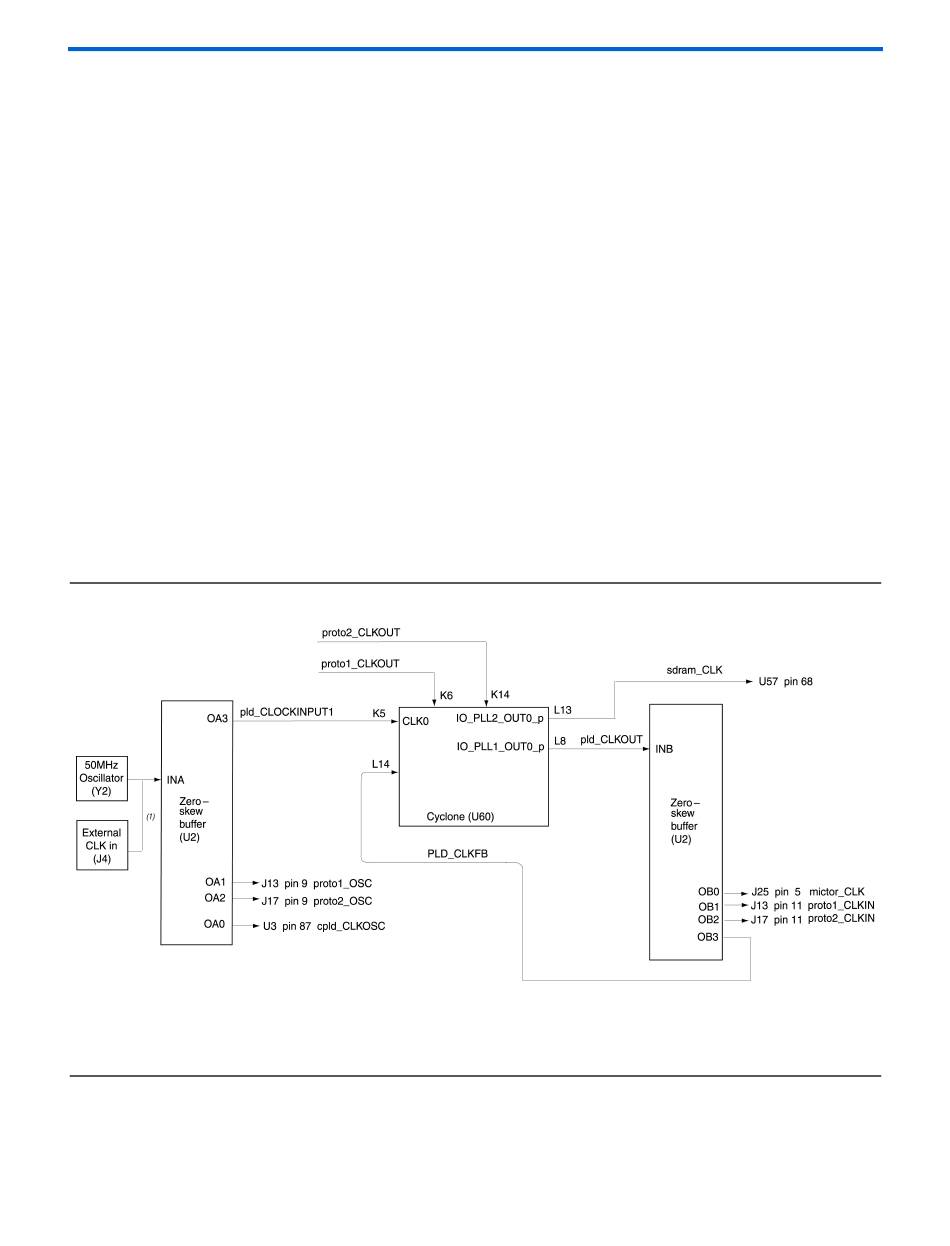

Figure 1–21. Clock Circuitry
Note to Figure 1–21:
(1) An external clock can be enabled by stuffing location R15 with a 49.9 ohm 0603 resistor and stuffing location R13
with a 330 ohm 0603 resistor.
1–28
Nios Development Board Reference Manual, Cyclone Edition
The Nios development board runs from a 9-V, unregulated, center-
negative input power supply. On-board circuitry generates 5-V, 3.3-V, and
1.5-V regulated power levels.
■
The 5-V supply is present on pin 2 of J12 and J15 for use by any device
plugged into the PROTO1 or PROTO2 expansion connectors.
■
The 3.3-V supply is used as the power source for all Cyclone device
I/O pins. The 3.3-V supply is also available to PROTO1 and PROTO2
daughter cards.
■
The 1.5-V supply is used only as the power supply for the Cyclone
device core (VCCINT) and it is not available on any connector or
header.
The Nios development board includes a 50 MHz free-running oscillator
and a zero-skew, point-to-point clock distribution network. The clock
network drives the Cyclone device and pins on the expansion prototype
connectors, the configuration controller device, and the Mictor connector.
The zero-skew buffer distributes both the free-running 50 MHz clock and
the clock-output from one of the Cyclone's device internal PLLs
(CLKLK_OUT1). See Figure 1–21.
