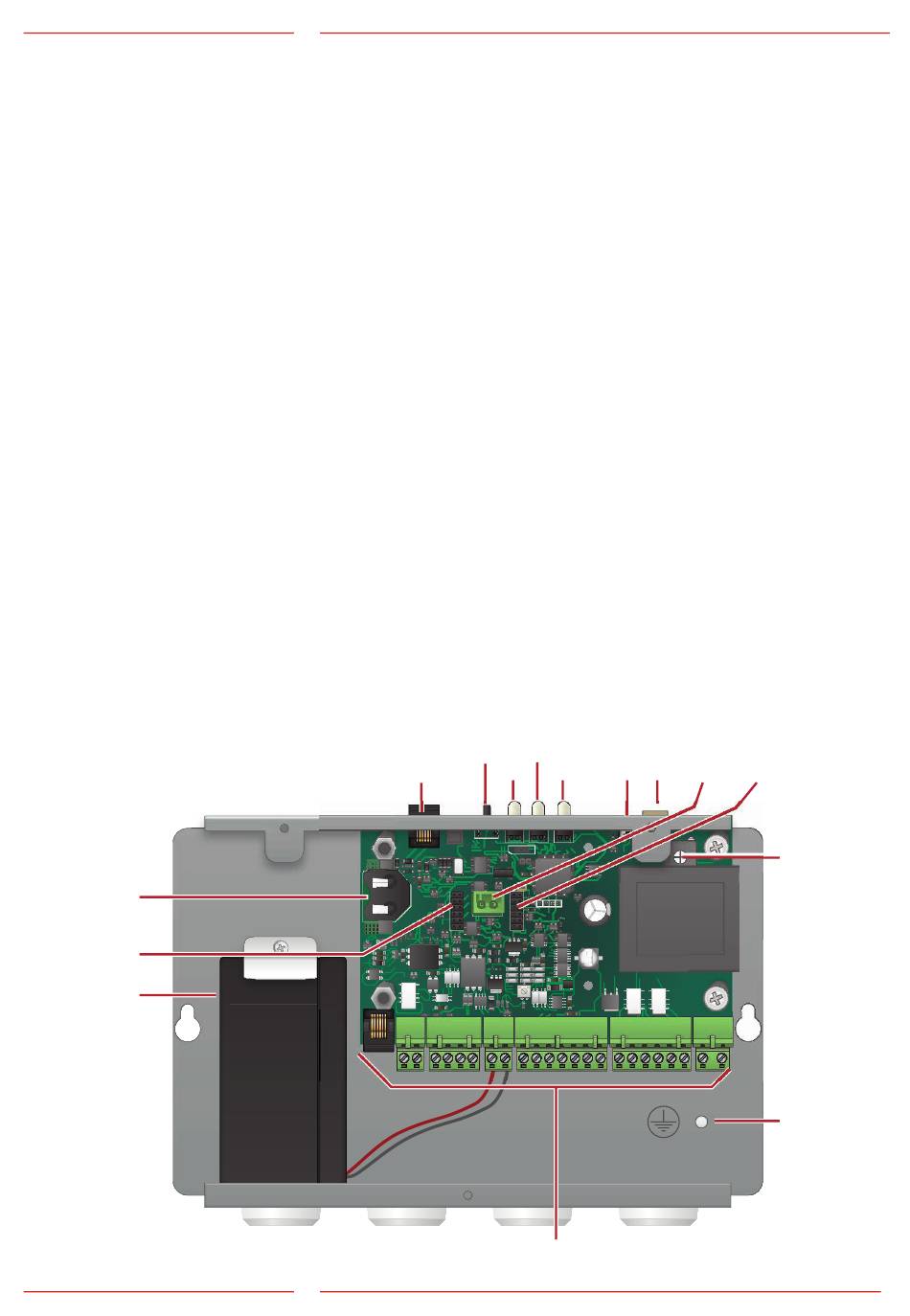

Overview SL6+
Main Unit
13
12
11
Overview
1.
Connector RJ12 for
optional telephone
handset
For confi guration and
intercom communication
Can also be used for
external calls. Any
standard analogue tone
dial telephone can be
used.
2.
Resets button
• Reset all alarms.
• Terminates a phone
call in progress.
• Triggers self test.
• Activates display of
GSM signal strength.
• Triggers battery test.
3.
LED indicators
a. Mains power
b. Active alarm/battery
status
c. PSTN/GSM Net, call
status
4.
USB Mini B PC connec-
tion
For fi rmware update and
confi guration.
5.
RS232 PC connection
For confi guration.
2
1
7
6.
Screw terminal for
optional telephone
handset
For confi guration and
intercom communication.
Can also be used for
external calls.
Any standard analogue
tone dial telephone can
be used.
7.
Slot for optional card
CANopen Lift
(*SL6-CAN-BOARD)
8.
Connector for external
system speaker
9.
GND
10.
Terminals
11.
12 V Battery, 1,2 Ah
12.
Slot for GSM interface
board
13.
Battery slot for RTC, Real
Time Clock
(not yet implemented)
3b
3a
3c
4
5
10
6
7
8
9
EN SL6+ v.3.04
