Safeline SL6+ Manual

Hide thumbs Also See for SL6+:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual
SafeLine SL6+
MANUAL

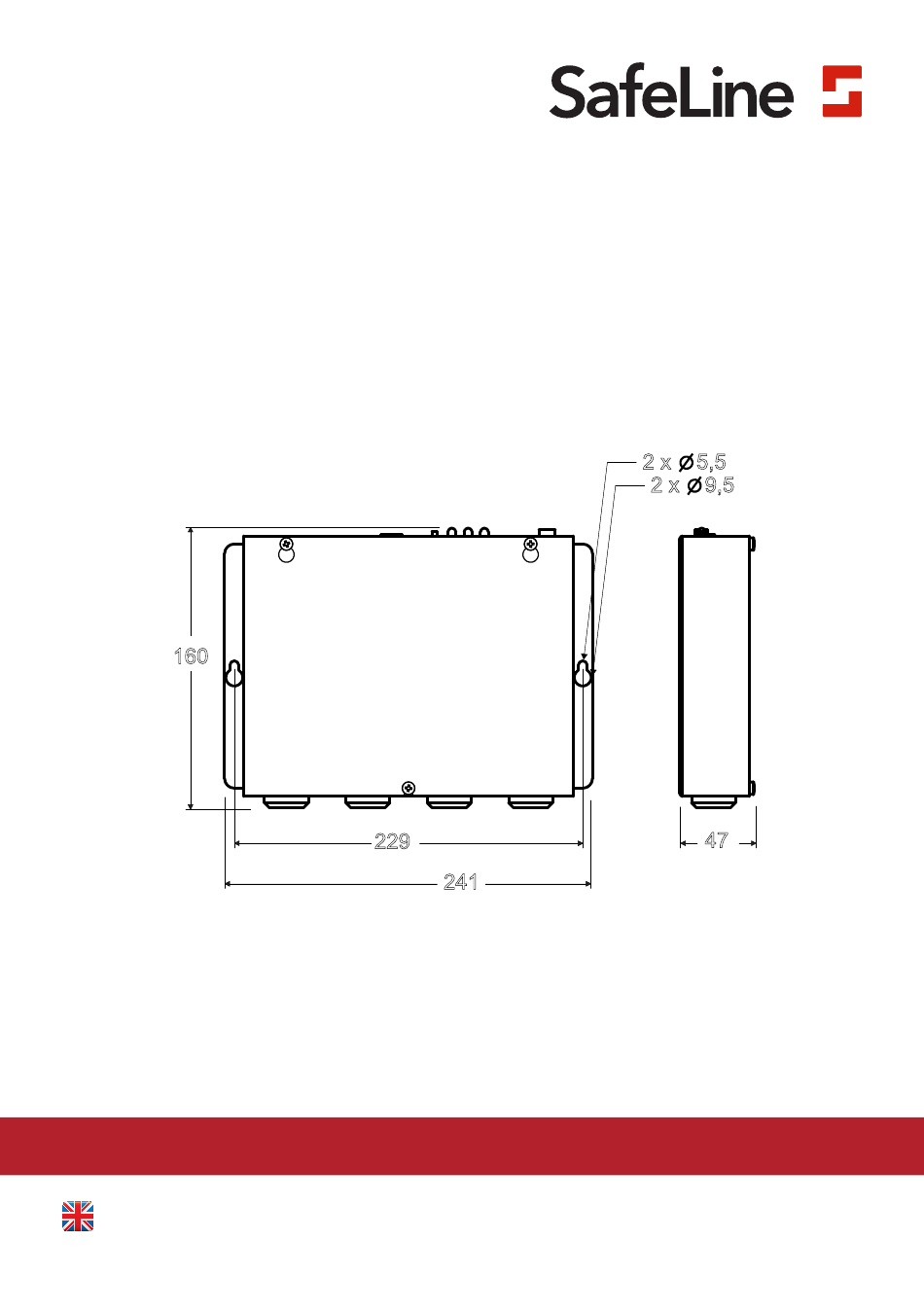

160
Complies to EN 81-28 and EN 81-70 standards.
PATENT 08163634.2
Lift emergency telephone
SL6+ v2.04 EN
10.2017
229
241
www.safeline-group.com
2 x
5,5
2 x
9,5
47
