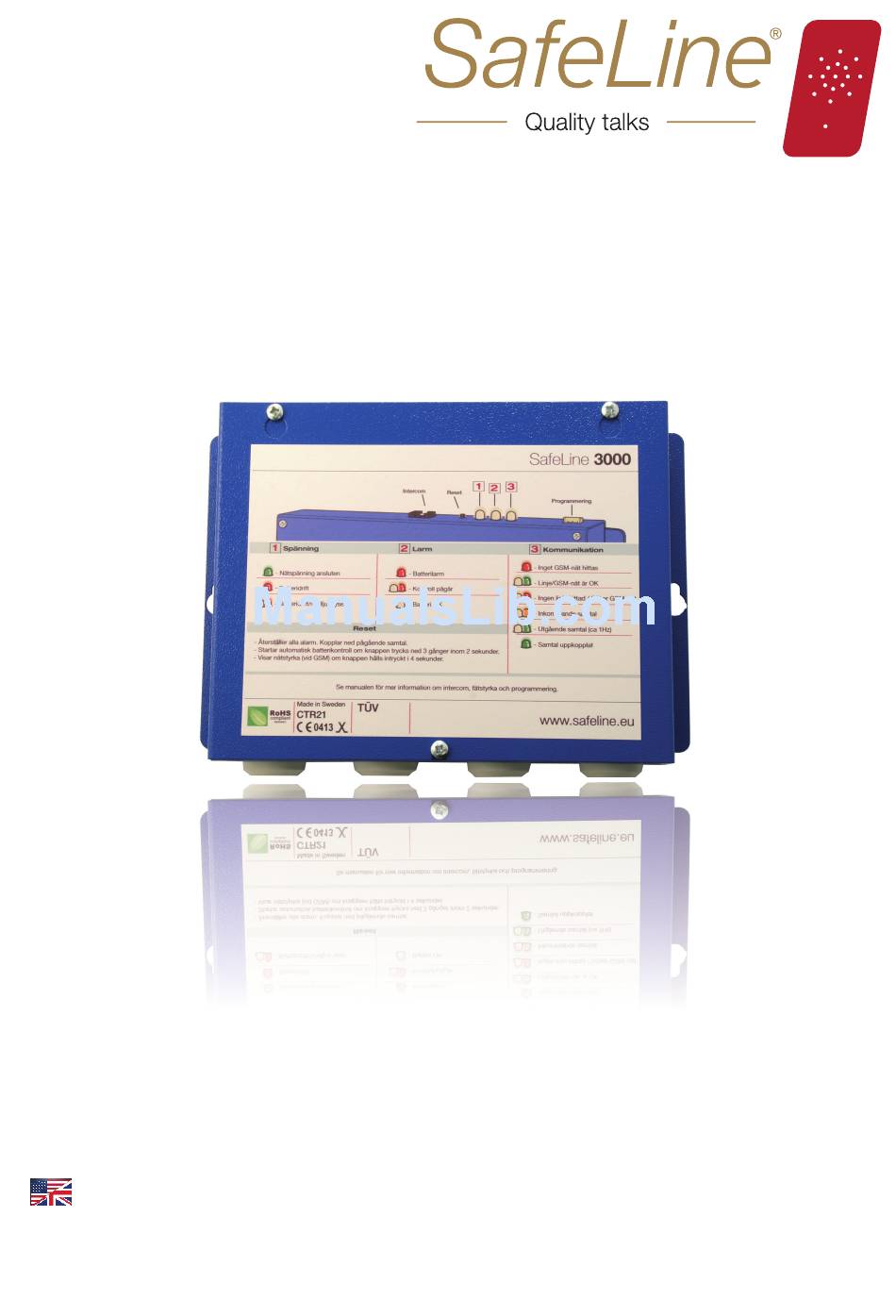

Safeline 3000 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SafeLine
Installation manual
Emergency telephone for lifts. Complies to EN81-28 and
EN81-70 standards.
ENGLISH V. 4.04
02.2011
PATENT PENDING
3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Safeline 3000

Summary of Contents for Safeline 3000

  • Page 1 3000 SafeLine Installation manual Emergency telephone for lifts. Complies to EN81-28 and EN81-70 standards. ENGLISH V. 4.04 02.2011 PATENT PENDING...
  • Page 2 Relay outputs: Max 2A/30V DC, 0,5A/125V AC potential free relay outputs. Pictogram outputs: Max 100mA, 12 VDC. Transistor outputs. Open collector. Size: 205 x 160 x 45 mm (L x W x H). Weight: 1,5 kg. safeline.eu ENGLISH V. 4.04...

  • Page 3: Table Of Contents

    Programming unit numbers Operating Front panel Emergency calling process LED indication in car Calling with SafeLine 3000 Testing Intercom Service Battery life Troubleshooting ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 4: General Information

    The SafeLine may only be used for its intended purpose. Note in particular that, no unauthorized changes or additions may be made inside the SafeLine or to individual components.

  • Page 5: Concerning Your Personal Safety

    When the station’s alarm button is pressed, an emergency call is emitted. The recorded message can be different for each unit. ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 6 81-28. Also available with emergency alarm button. Extra remote (max 2) Mounted in the lift shaft, on top, or under the car. GSM antenna © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 7: Measurements

    Flush mount car station with pictograms Article number: *SLRem_V2Pic 23,5 Flush mount car station with pictograms and emergency alarm button. Article number: *SLRem_V2PicB ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 8 Article number: *SL3000-XRemote 69,5 SafeLine 3000 car station COP, for in- stallation behind the car operating panel (COP) Article number: *SLRem_COP 12 12 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 9: Wiring

    OPTIONS Emergency light. Acoustic signal (buzzer or bell). INPUTS (signal has to be same low voltage given by the SafeLine 3000) Power feed for signals when existing button or pictograms are connected. Power feed for signals coming from the car.

  • Page 10: Wiring Diagram - Fl At Cable

    NO / NC SIGNAL BROWN BLUE YELLOW GREEN 230 VAC GREEN / YELLOW NOTE! Unconnected cables must be isolated, to avoid short circuiting. © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...
  • Page 11 EMERGENCY LIGHT GREEN + YELLOW (+12V) BROWN + BLUE RELAY 1 RELAY 2 For more information or settings refer to page 23 section outputs. ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 12: Wiring Diagram - Round Cable

    BROWN BROWN / WHITE GREEN BLUE / WHITE 230 VAC GREEN / YELLOW NOTE! Unconnected cables must be isolated, to avoid short circuiting. © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...
  • Page 13 EMERGENCY LIGHT GREEN + BLUE/WHITE (+12V) BROWN/WHITE + BROWN RELAY 1 RELAY 2 For more information or settings refer to page 23 section outputs. ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 14 Phone Line out to next safeline Phone line in Phone line with RJ12 Parallel-wiring Telephone line in Daisy-chain-wiring (Serial wiring) Telephone line in © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 15: Activating The Sim-Card

    If the PIN code is set to “0000” or if it is deactivated the SIM card can be moved from the SafeLine 3000 to any of SafeLine GSM products. If the code is set to “1234” the SIM card can be moved to another SafeLine 3000 unit if the software version is 2.00 or higher.

  • Page 16: Mounting

    To avoid GSM interference: Place the main unit, the stations and the GSM antenna more than 1.5 meters apart. >>1,5 m >>1,5 m >>1,5 m Mounting PSTN board/GSM board Adding an extra station board. © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 17: Programming

    The unit can be programmed on-site with the hand unit. Plug the hand unit into the SafeLine 3000, and enter function codes through the easy to use menu in the hand unit. ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 18: Programming Method

    Call disconnected or end of programming One long beep. Invalid input. Last code SL2 will restart with the new settings has to be reentered. © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 19: Programming Unit Numbers

    3 beeps Unit number The next unit answers Terminate programming Program unit as number [2-9] Hang up End Programming? Unit programming is done ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 20: Programming Example

    Telephone number to test alarm receiver: Enter number of days between test alarm: Set test alarm protocol to P100: Enter alarm button delay: End programming: © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 21: Parameter List

    Alarm character LMS *45* - - # LMS(Lift Monitoring System) (Battery alarm) Normally 17 Alarm character Test alarm *46* - - # Normally 26 ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 22 Select which message(s) to send to the alarm receiver at an alarm call. 0 = None (Default) 1 = Start of alarm 2 = Start+end of alarm © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...
  • Page 23 It is possible to enter manual voice switching mode although the unit is programmed as automatic by pressing ”*”. No ascending tones will be heard. ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 24: Operating

    Press 3 times - Start a battery service test 3 Yellow 1 Red, 2 Yellow Press once - Reset active alarm. 2 Red, 1 Yellow 3 Red © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 25: Led Indication In Car

    Green LED Yellow LED Green steady: Flashing twice every second: Call connected. Emergency signal button active. Yellow steady: Activated alarm. Remains lit until reset. ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 26: Testing

    Lift the handset Internal dial tone No tone Press Check the handset No connection Phone line dial tone Go to Troubleshoot, page 30. Dial out © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 27: Emergency Calling Process

    Calling 1st phone number Answer Calling 2nd phone number Answer Calling 3rd phone number Answer Calling 4th phone number Answer Alarm operator made connection ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 28: Calling With Safeline 3000

    Press the button on the station for less than one second (if you press longer an alarm call will be made). The SafeLine 3000 will ring for 5 seconds. © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law. ENGLISH V. 4.04...

  • Page 29: Intercom

    Press 1 to call the lift car. Press 2 to call the car-top. Press 3 to call the lift pit. Press 00 to enter programming mode. ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 30: Battery Life

    Mains power failure alarm is sent to the alarm receiver (SLCC) after 30 minutes of mains power failure. Testing the battery alarm: Unplug the battery contact during the battery status check. The SafeLine 3000 will now emit a battery alarm and LED 2 and battery alarm relay will be activated(if so programmed).

  • Page 31: Troubleshooting

    At least one phone number (and one ID code if using data identifi cation) must be programmed to enable making a call from the unit. Refer to the parameter list (*11*). ENGLISH V. 4.04 © 2011 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 32 BELGIUM Tel: +46(0)84477932 Tel: +32(0)2 762 98 10 Fax: +46(0)84477931 Fax: +32(0)2 762 97 10 E-mail: order@safeline.eu E-mail: order@safeline.eu SafeLine-Deutschland SafeLine Elevator Parts UK Westfalenstraße 22a 3 Evegate Park Barn D-51688 Wipperfürth Smeeth DEUTSCHLAND Ashford Kent Tel: +49 (0) 2267 - 8 67 96 63...
