Relay Functions

This applies for SW 4.00 or
later. (Functions for earlier
versions, please contact the
support team.)
Relays 1 and 2 can be
programmed independently.

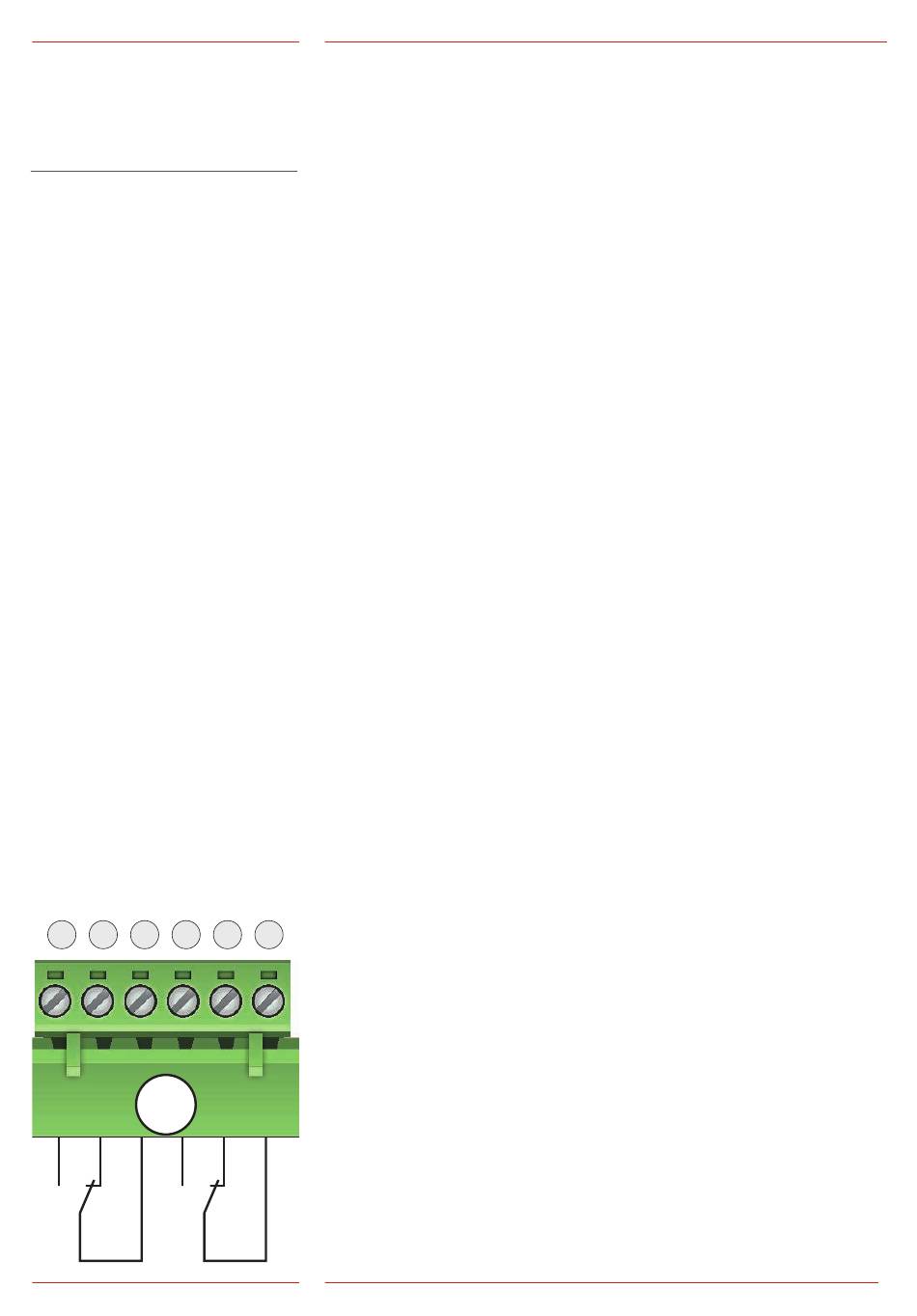

6 5 4 3
E
Configuration
Alarm status outputs
• Relay will be activated when set time reached.
• Relay will be deactivated when emergency call ends.
Battery failure
• Relay will be activated when the battery test has failed.
• Relay will be deactivated by pressing the reset button.
Pictogram yellow (only relay 1)
• Relay will be activated when the alarm button is pressed
(yellow pictogram).
• Relay will be deactivated when the reset button is pressed
or if alarm centre presses "5".
Pictogram green (only relay 2)
• Relay will be activated when the call is acknowledged
(green pictogram).
• Relay will be deactivated when the call is disconnected.
Activate with DTMF 8 (only relay 1)
• Relay will be activated for 5 seconds when DTMF "8" is
pressed.
Activate with DTMF 9 (only relay 2)
• Relay will be activated for 5 seconds when DTMF "9" is
pressed.
Manual reset
• Relay will be activated when set time reached.
Emergency call failure
• Relay will be activated when the emergency call falied after
12 attemts, "Emergency Call Fail".
2 1 System failure
• Relay will be activated when power (230 VAC) and PSTN/
GSM net is OK.
• Relay will be deactivated when power supply is gone more
then 15 min or when there is no GSM-net.
Emergency bell
• Relay will be activated when the emergency bell input is
active.
• Relay will be deactivated when the emergency bell input is
deactivated.
