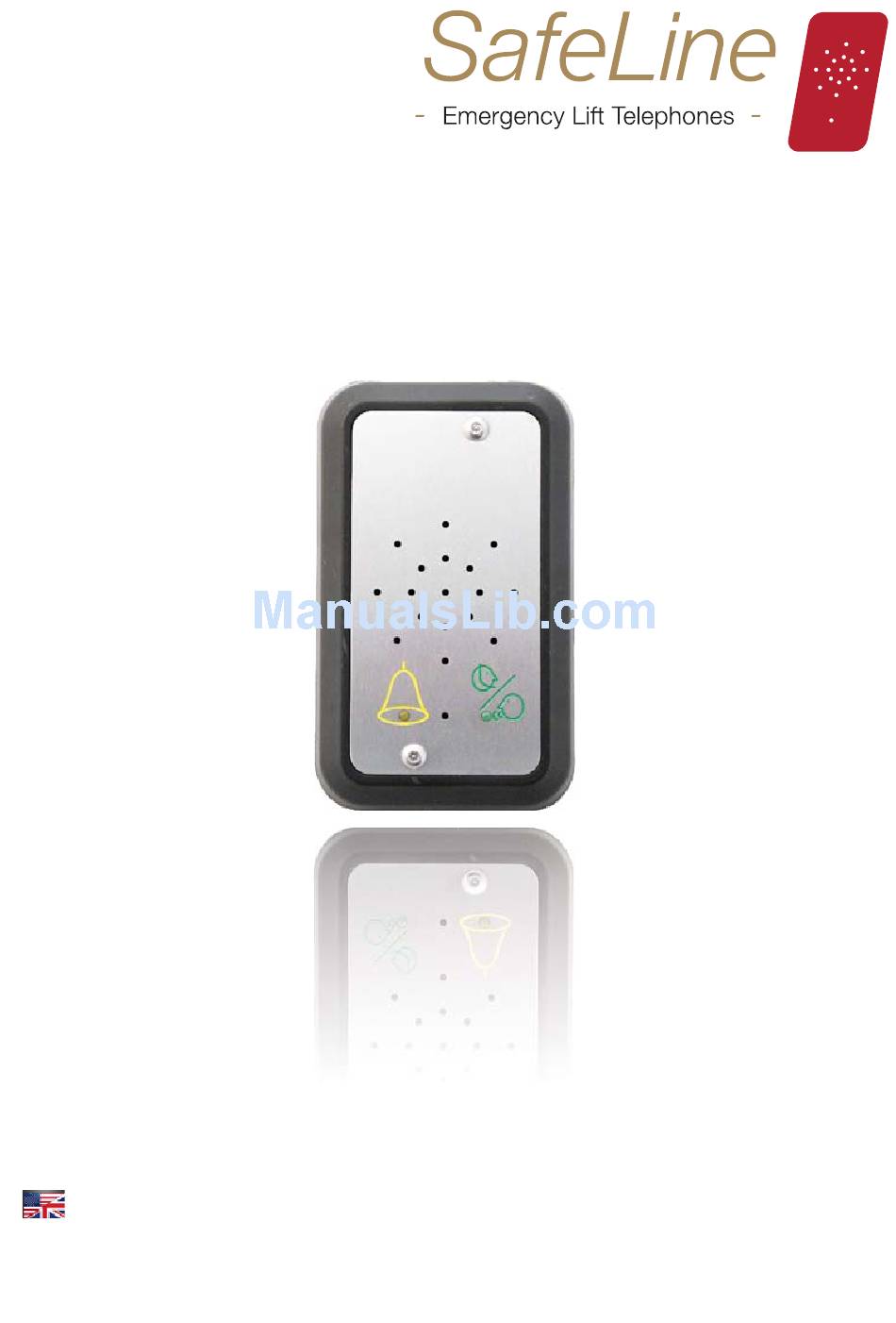

- Page 1 ® SafeLine Installation manual Small, inexpensive and intelligent Probably the world’s smallest EN81-28 compatible lift telephone! ENGLISH V. 4.02 10.2010...
- Page 2 SafeLine Installation manual TECHNICAL DATA Power: Supply voltage: 10 - 30 VDC. Current consumption max 50 mA. Emergency signal button: Can be set as NO or NC, 10-30VDC. Auxillary input: Can be set as NO or NC, 10-30VDC. Size HxWxD: 130x78x18mm safeline.eu...
-
Page 3: Table Of Contents
Wiring diagram, SafeLine MX2 on PSTN line Menu LED indication Programming interfaces Programming Programming method Programming example Programming unit numbers Parameter list Operating Testing Emergency calling process Service Troubleshooting ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 4: General Information
The SafeLine may only be used for its intended purpose. Note in particular that, no unauthorized changes or additions may be made inside the SafeLine or to individual components. -
Page 5: Installation
For fi rmware update and programming with SafeLine Pro. 3. Volume control Turn right to increase the volume. 4. Keyboard For programming. 5. System LED ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 6: Measurements
Surface mount SafeLine MX2 with pic- tograms and emergency alarm button Cable hole diameter: 8mm Article number: *SLMX_SM-PicB 69,5 SafeLine MX2 COP Article number: *SLMX_COP 12 12 ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 7: Wiring Diagram
GREEN Telephone line out YELLOW to next SafeLine BLUE Telephone line in BROWN NOTE! Unconnected cables must be isolated, to avoid short circuiting. ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 8: Wiring Diagram, Safeline Mx2 On Pstn Line
WIRING DIAGRAM, SAFELINE MX2 ON A PSTN LINE (MAX 9 UNITS) Parallel-wiring Phone line in Unit numbers must be pre-programmed. Daisy-chain-wiring (serial wiring) Phone line in Unit numbers can be programmed from remote. ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 9: Menu
Green LED Yellow LED Green steady: Flashing twice every second: Call connected. Emergency signal button active. Yellow steady: Activated alarm. Remains lit until reset. ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 10: Programming Interfaces
The unit can be programmed on-site with the hand unit. Plug the hand unit into the SafeLine, and enter function codes through the easy to use menu in the hand unit. ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 11: Programming
Refer to parameter list 2 short beeps 2 short beeps One long beep, only last code has to be Call has ended reentered. ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 12: Programming Unit Numbers
3 beeps Unit number The next unit answers Terminate programming Program unit as number [2-9] Hang up End Programming? Unit programming is done ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 13: Programming Example
Enter number of days between test alarm: 9. Set test alarm protocol to P100: 10. Enter alarm button delay: 11. End programming: ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 14: Parameter List
Alarm character LMS *45* - - # LMS(Lift Monitoring System) (Battery alarm) Normally 17 Alarm character Test alarm *46* - - # Normally 26 ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. - Page 15 No of signals before SafeLine answers incoming call. Can be set from 00-16. 00=no answer. (Default = 02) Unit number *82* Program Unit number 1-9 (Default = 0) ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 16 3 = Default CPC(The following codes will be set): *21*3#, *22*3#, *27*03#, *80*1#, *84*1#, *88*1# 4 = Default VOICE(The following codes will be set): *21*1#, *22*1#, * 27*03#, *80*1#, *84*1#, *88*1# ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law.
-
Page 17: Operating
Check telephone line Press on keypad No connection Phone line dial tone Check landline, Dial out on keypad Go to Troubleshoot, page 19 ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 18: Emergency Calling Process
Calling 1st phone number Answer Calling 2nd phone number Answer Calling 3rd phone number Answer Calling 4th phone number Answer Alarm operator made connection ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 19: Service
At least one phone number (and one ID code if using data identifi cation) must be programmed to enable making a call from the unit. Refer to the parameter list (*11*). ENGLISH V. 4.02 © 2010 SafeLine and all the SafeLine products and accessories are copyrighted by law. - Page 20 ® safeline.eu Phone: SAFELINE EUROPE +32 (0)2 762 98 10 Fax: Blvd de la Woluwelaan 42, +32 (0)2 762 97 10 E-mail: 1200 Brussel info@safeline.eu Support: www.safeline.eu/support BELGIUM...
