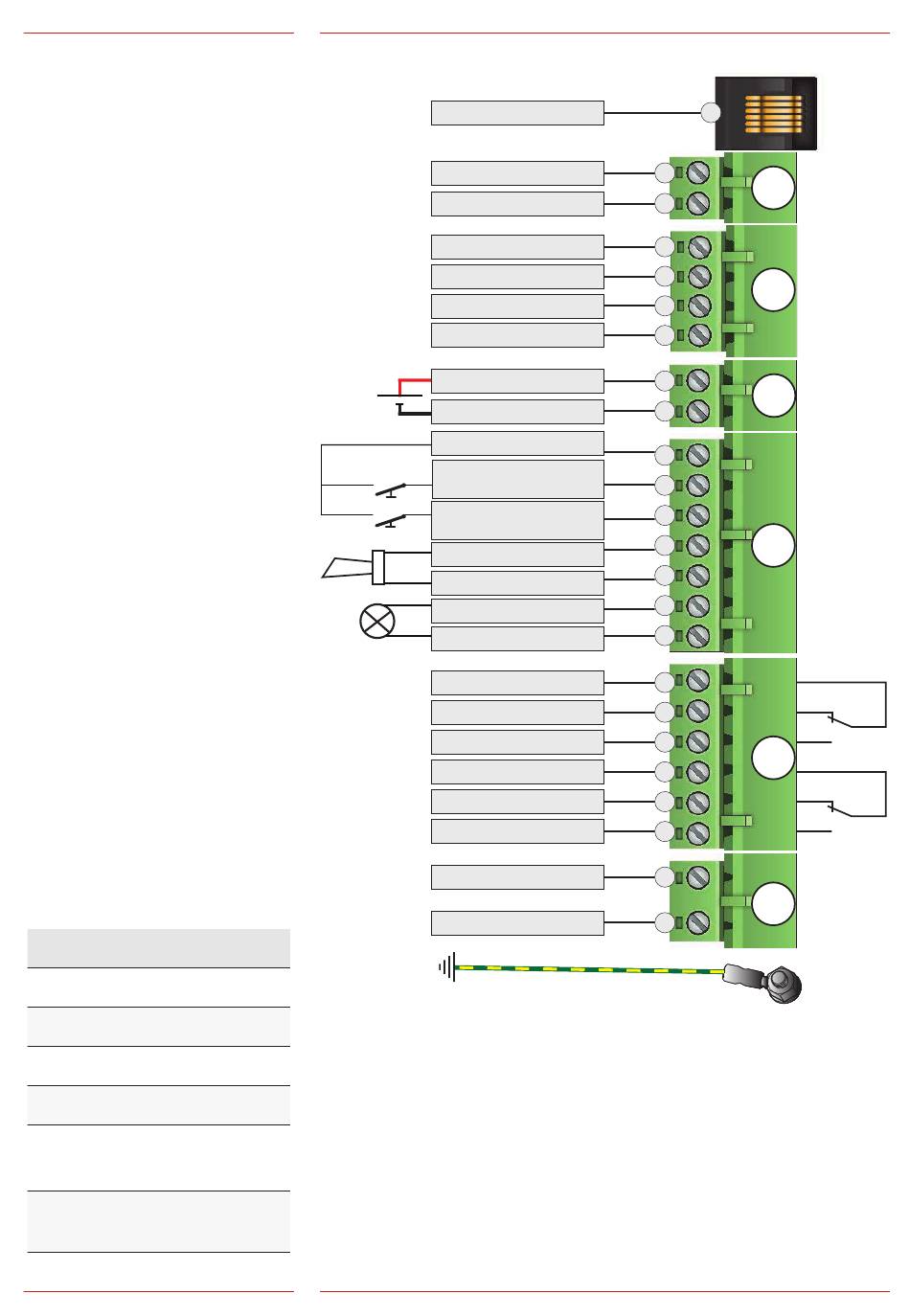

Wiring Diagram
SL6+ Main Unit
INPUT 1 AND 2 OPTIONS
NONE
FILTER
LMS/SMS
CLEAR/MAINTENANCE
FIRE MODE
(default input 2)
ALARM BUTTON
(default input 1)
CALL DELAY
Installation
Phone line, RJ12
Phone line
Phone line
Bus 12 VDC
Bus GND
Bus A
Bus B
Battery +12 VDC
Battery 0 VDC
+12 VDC
Input 1*
(configurable)
Input 2*
(configurable)
Emerg. bell + **
Emerg. bell – **
Emerg. light + ***
Emerg. light – ***
Relay 1 Common
Relay 1 N/C
Relay 1 N/O
Relay 2 Common
Relay 2 N/C
Relay 2 N/O
230 VAC L
230 VAC N
* Input 1 and 2 are configurable N/O or N/C inputs with
SafeLine Pro as indicated to the right.
** Maximum 200 mA on the emergency bell output.
*** Maximum 500 mA on the emergency light output.
12
A
1
2
1
B
2
3
4
C
1
2
1
2
3
D
4
5
6
7
1
2
E
3
4
5
6
1
F
2
EN SL6+ v.3.04
