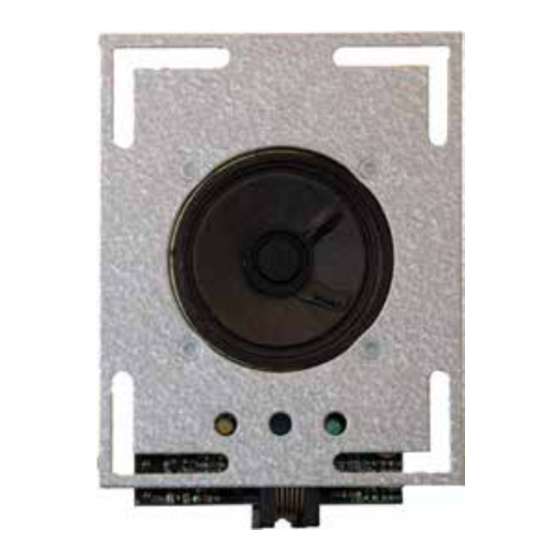

- Page 1 SL1 manual Lift Emergency Telephone Reliability – brought to you from Tyresö Sweden www.safeline-group.com 02.2023 © 2023 SafeLine and all the SafeLine products and SL1 v.2.1.0 EN accessories are copyrighted by law.
- Page 2 Can be set as N/O or N/C, 10-30 VDC Auxillary input Can be set as N/O or N/C, 10-30 VDC Size (H x W x D) 100 x 60 x 24mm Operation temperature +5°- 40° Air humidity 30%-90% R SL1 v.2.1.0 EN...
-
Page 3: Table Of Contents
Content General information Overview Measurements Measurements and component list Installation Wiring diagram Wiring diagram, SafeLine SL1 on a PSTN LINE Configuration Configuration overviews Configuration method Configuration unit numbers Configuration examples Parameter list Operating LED indication for pictogram in car Testing... -
Page 4: General Information
If it is to be used It is extremely important that for any other purpose, SafeLine these installation instructions must be contacted in advance. are made available at all times... -
Page 5: Overview
(Vol. -) System LED Connector terminal Power, emergency button, phone line and auxillary inputs. RS232 PC connection For firmware update and configuration with SafeLine Pro. Keyboard For configuration. Volume control Buttons 2 and 8 raises respectively lowers the speaker volume. -
Page 6: Measurements
Measurements SafeLine SL1 COP Article number: *SL1 69,5 13,2 26,3 SL1 v.2.1.0 EN... -
Page 7: Measurements And Component List
Measurements SafeLine SL1 - alarm button with microphone Article number: *LT-stat01 and component list ALARM Button PSTN Microphone SafeLine SL1- alarm button, microphone and speaker Article number: *LT-stat02 Speaker ALARM Button Mic. PSTN SL1 v.2.1.0 EN... -
Page 8: Installation
Installation Wiring diagram (Vol. +) (Vol. -) Extra pictograms Max 100mA LED SL1 v.2.1.0 EN... -
Page 9: Wiring Diagram, Safeline Sl1 On A Pstn Line
(Vol. +) (Vol. +) (Vol. +) (Vol. -) (Vol. -) (Vol. -) Daisy-chain-wiring (serial wiring) Four wires required. Unit numbers can be configured remotely. Phone line in (Vol. +) (Vol. +) (Vol. +) (Vol. -) (Vol. -) (Vol. -) SL1 v.2.1.0 EN... -
Page 10: Configuration
Configuration Configuration Keyboard configuration The integrated keyboard at the rear of the SafeLine enables a fast overviews configuration of the unit. Configuration methods and configuration codes with a telephone is described (Vol. +) later on the following pages: "Remote configura- (Vol. -) tion with telephone" and "On-site configuration with telephone". - Page 11 Remote confi guration For remote confi guration, you can use any PSTN tone dial phone. Dial the phone number of the SafeLine. Enter the function codes on the phone keypad to start the confi guration (password has to be entered).
-
Page 12: Configuration Method
Continue configuration? *00*# Enter code and data, eg: *11*012341234# 2 short beeps One long beep. Invalid Call disconnected or end input. Last code has 2 short beeps? of configuration. SL1 will to be re-entered. restart with new settings. SL1 v.2.1.0 EN... -
Page 13: Configuration Unit Numbers
Unit number *82*n# Re-dial the phone number Terminate programming Press the next unit *00*# number repeatedly until hearing 3 beeps The next unit answers Program unit as number [1- 9] Hang up End programming? Unit programming is done SL1 v.2.1.0 EN... -
Page 14: Configuration Examples
Alarm button delay: * 8 7 * 0 3 # - Example: 3 seconds delay. End configuration: * 0 0 * Example 2 SLCC (SafeLine Call Centre) and 3 day test. Start configuration: Enter P100 ID code: * 0 1 * 4 5 6 4 5 6 4 5 # Lift ID code (each lift must have its own unique code). Set test alarm type: * 3 1 * 0 # - Example: Test alarm type P100. -
Page 15: Parameter List
Change this only if your alarm operator is using any of the mentioned protocols. Call type 4th number *24* Call type LMS number *30* LMS(Lift Monitoring System) call type 0 = P100 3 = CPC (Only battery alarm) SL1 v.2.1.0 EN... - Page 16 1 = Enables recorded message. *61* Play the the recorded message. Options for the recorded *62* 0 = Disable recorded message. message from lift car 1 = Enables recorded message. *62* Play the the recorded message. SL1 v.2.1.0 EN...
- Page 17 ”*”. No ascending tones will be heard. Indicator mode *78* 0 = Standard 1 = Strictly EN81-28 Voice communication *79* 1 - 20 minutes. Standard = 8 min time-out Reset active alarm automa- *80* 0 = OFF, tically 1 = ON (Default) SL1 v.2.1.0 EN...
- Page 18 Configure Unit number 1-9 (Default = 0) Detect dial tone *83* 0 = Off 1 = On (Default) Set to off if SafeLine has problem to detect the dial tone. Receipt to alarm receiver *84* Select which message(s) to send to the alarm receiver at an alarm call.
-
Page 19: Operating
LED is lit as soon as the LED turns on as soon as side of the unit. alarm button is pressed. the SafeLine unit detects a responding voice. The LED is turned off when the call is terminated. Standard (*78*0#) -
Page 20: Testing
Testing Testing the SafeLine SL1 Connect 10-30 VDC SafeLine SL1 will make a self test Yellow LED flashes 5 times. Green LED flashes 5 times. Long tone in the speaker. Short tone in the speaker. Check the mic and Connect telephone line... -
Page 21: Emergency Calling Process
3 times. This adds up to the 12 call limit. Dial tone? Line missing or busy Calling 1st phone number. Answer? Calling 2nd phone number. Answer? Calling 3rd phone number. Answer? Calling 4th phone number. Answer? Alarm operator made connection Emergency call completed SL1 v.2.1.0 EN... -
Page 22: Service
• The problem might be due to induction in the phone cable. The unit can not make an alarm call. At least one phone number (and one ID code if using data identi- fication) must be configured to enable making a call from the unit. Refer to the parameter list (*11*). SL1 v.2.1.0 EN... -
Page 23: Declaration Of Conformity
EMC/Lifts: Immunity, Electromagnetic compatibility EN 50581:2012 RoHS: Technical doc. for assessment of restriction of RoHS. Tyresö, 2017-04-07 Tyresö, 2017 04 07 Lars Gustafsson, Technical Manager, R&D , SafeLine Group Antennvägen 10, 13548 Tyresö, Sweden +46 (0)8-447 79 32, www.safeline-group.com SL1 v.2.1.0 EN... - Page 24 SafeLine Group UK Unit 47 · Acorn Industrial Park · Crayford · Kent · DA1 4AL · United Kingdom Tel.: +44 (0) 1322 52 13 96 · info@safeline-group.uk SafeLine is a registered trademark of SafeLine Sweden AB. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.
