Wiring Diagram Voice Unit - Safeline SL6+ Manual

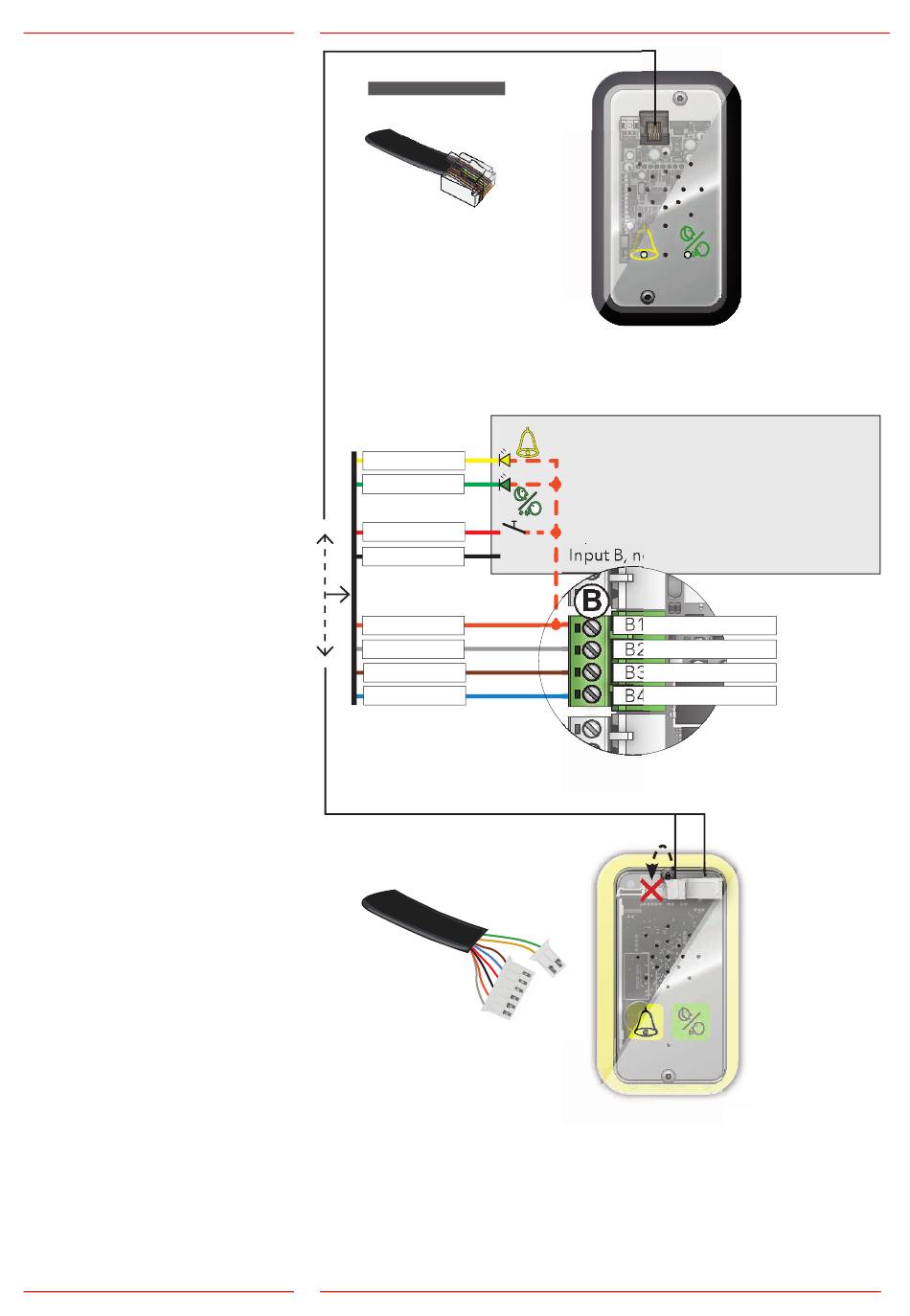

Wiring Diagram
Voice Unit
Installation
RJ45 connection
*Cable03
EXTERNAL PICTOGRAM AND ALARM BUTTON
Yellow
Green
Red
Black
Orange
Grey
Brown
Blue
JST connection
*Cable18
*Input A is confi gurable with either:
• SafeLine Pro N/O (default) or N/C.
• Parameter *89*, please refer to the corresponding
code in the "Parameter List".
13
ONLY WHEN USING
Output A, yellow pict. (optional)
Output B, green pict. (optional)
Input A, alarm button (optional)
Input B, not in use
B
B1 bus 12 VDC
B2 bus GND
B3 bus A
44553 44553 44553 44553 44553 44553 44553 44553 44553 44553
1000 1000 1000 1000 1000
6E 6E 6E 6E
B4 bus B
ADDRESS: 1
EN SL6+ v.3.04
