Replacing The Primary Collimator - Planmeca ProOne Technical Manual

PARTS REPLACEMENT
3.3

Replacing the primary collimator

Note that you should remove the primary collimator also when replacing the tube head,
see chapter 3.2 "Replacing the tube head/PSU" on page C-35 for more information.
Carefully detach the cable and remove the attachment screws on the collimator with a
2.5mm Allen key.

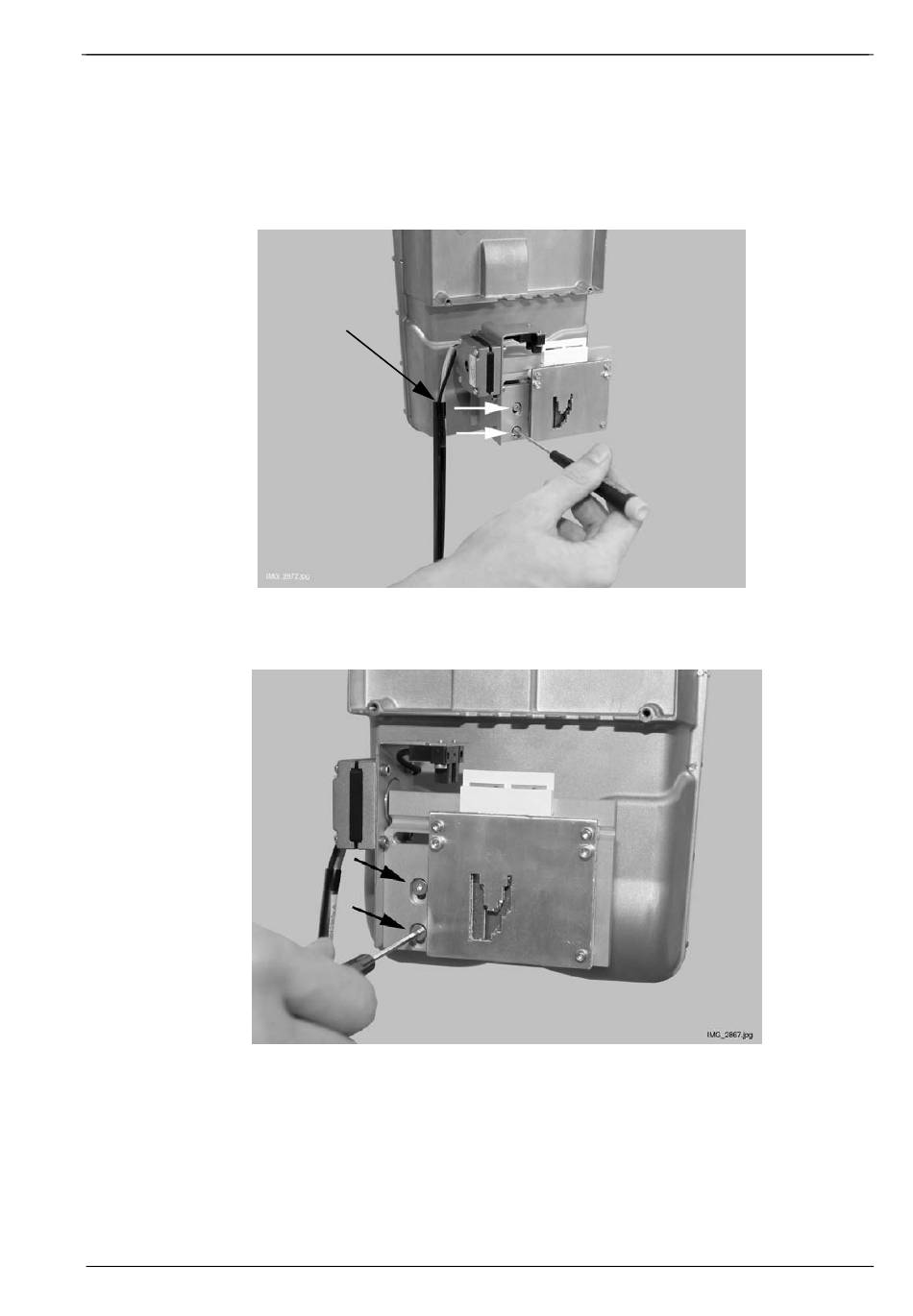

Figure 57
Figure 58
Technical Manual
Detach the
cable
CHAPTER C
C-ARM AND UPPER ARM
Planmeca ProOne C-37
