Installation/Fitting

5 Installation/Fitting

5.1 Transport and Delivery

5.1.1 Scope of Delivery

The scope of delivery of the ISD 410 servomotor
comprises:
•
The servomotor
•
These operating instructions
•
An installation tool for threaded cable connectors

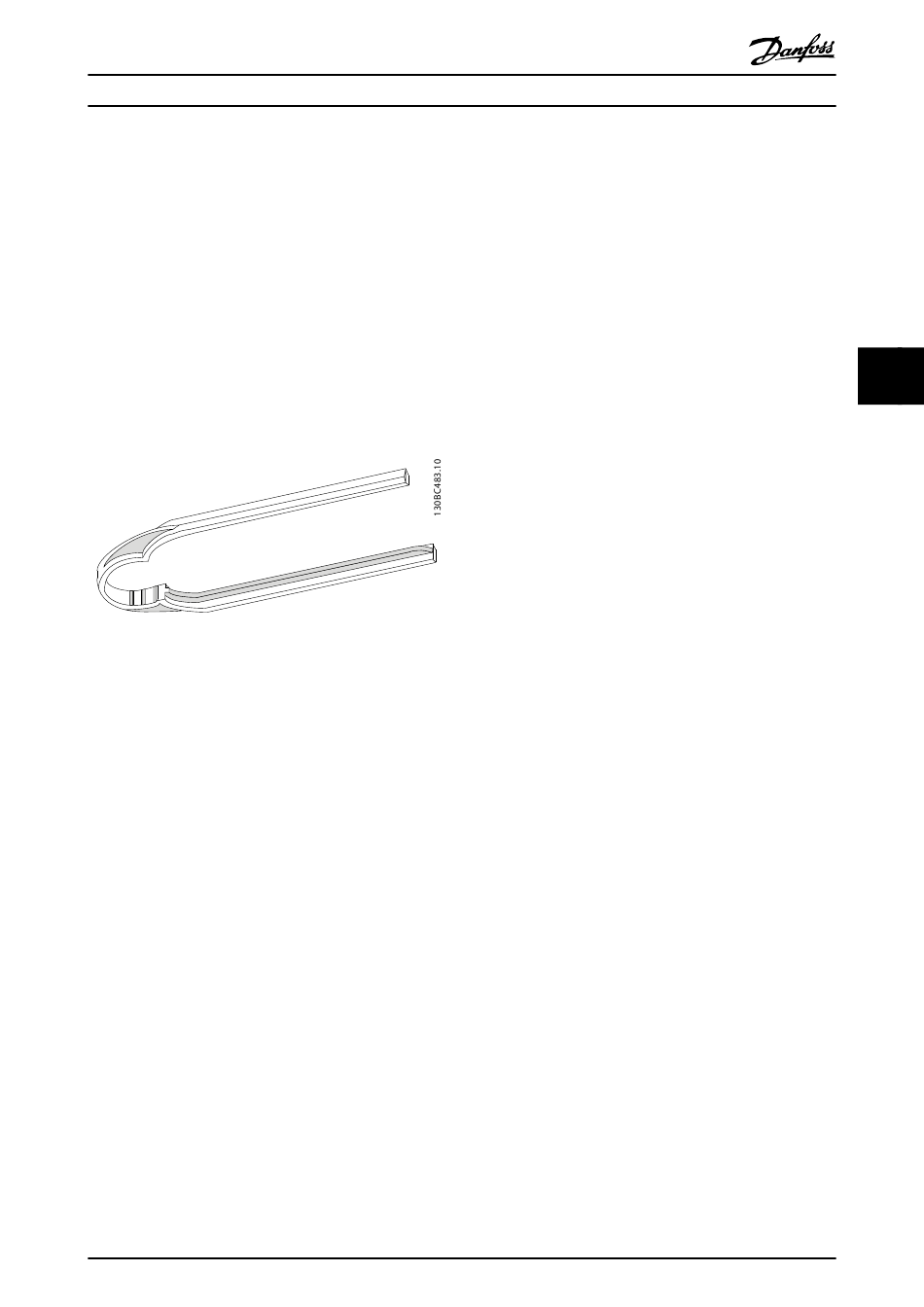

Illustration 5.1 Installation Tool for Threaded Cable Connectors
The packaging unit depends on the number of delivered
servomotors. However, operating instructions and an
installation tool for threaded cable connectors is supplied
for each servomotor.
Save the packaging for use in the event of product return.

5.1.2 Transport

The maximum weight of an individual package is approxi-
mately 7 kg. Note:
•
Always use means of transport and lifting gear
with sufficient load capacity to transport motors
•
Avoid vibration during transport of motors
•
Avoid heavy impacts and blows
®
VLT ISD 410 Servomotor Operating Instructions

5.1.3 Inspection on Receipt

After receiving the delivery, immediately check whether
the scope of delivery matches the shipping documents.
Danfoss will not honour claims for faults registered at a
later time.
Register a complaint immediately:

5.2 Safety Measures during Installation

Always observe the safety instructions in 3 Safety
Instructions during installation.
Pay particular attention to ensuring that the following
points are observed carefully:

5.3 Installation Environment

Environmental Conditions
The installation must provide the following environmental
conditions to allow the servomotors to be operated safely
and efficiently.
Contact Danfoss if it is not possible to comply with these
environmental conditions.
®
MG75D102 - VLT is a registered Danfoss trademark
•
with the carrier in case of visible transport
damage;
•
with the responsible Danfoss representative in
case of visible defects or incomplete delivery.
•
Installation may only be performed by qualified
staff.
•
Installation must be performed with due care and
attention.
•
All safety regulations and protective measures are
complied with, and the environmental conditions
are observed.
•
The documentation is read and understood.
•
The allowable operating ambient temperature
range is not exceeded.
•
The relative humidity is ≤ 85%, non-condensing.
•
The vibration level is ≤ 2 g/20 m/s2 without
resonance excitation.
•
Unrestricted ventilation is available.
•
The mounting structure is suitable for the
application, adequately rigid, etc.
