4.3.3 Sensor Cable

The sensor cable is usually supplied with the sensor.
Sensors and sensor cables are not included with the
servomotors.

4.4 Ports/Connector Pin Assignment

4 4
Connection and supply voltage cabling for the servomotor
is provided by the hybrid cable, which is attached to the B
side of the servomotor using threaded connectors.
A sensor cable can also be connected to the B side of the
servomotor.
1

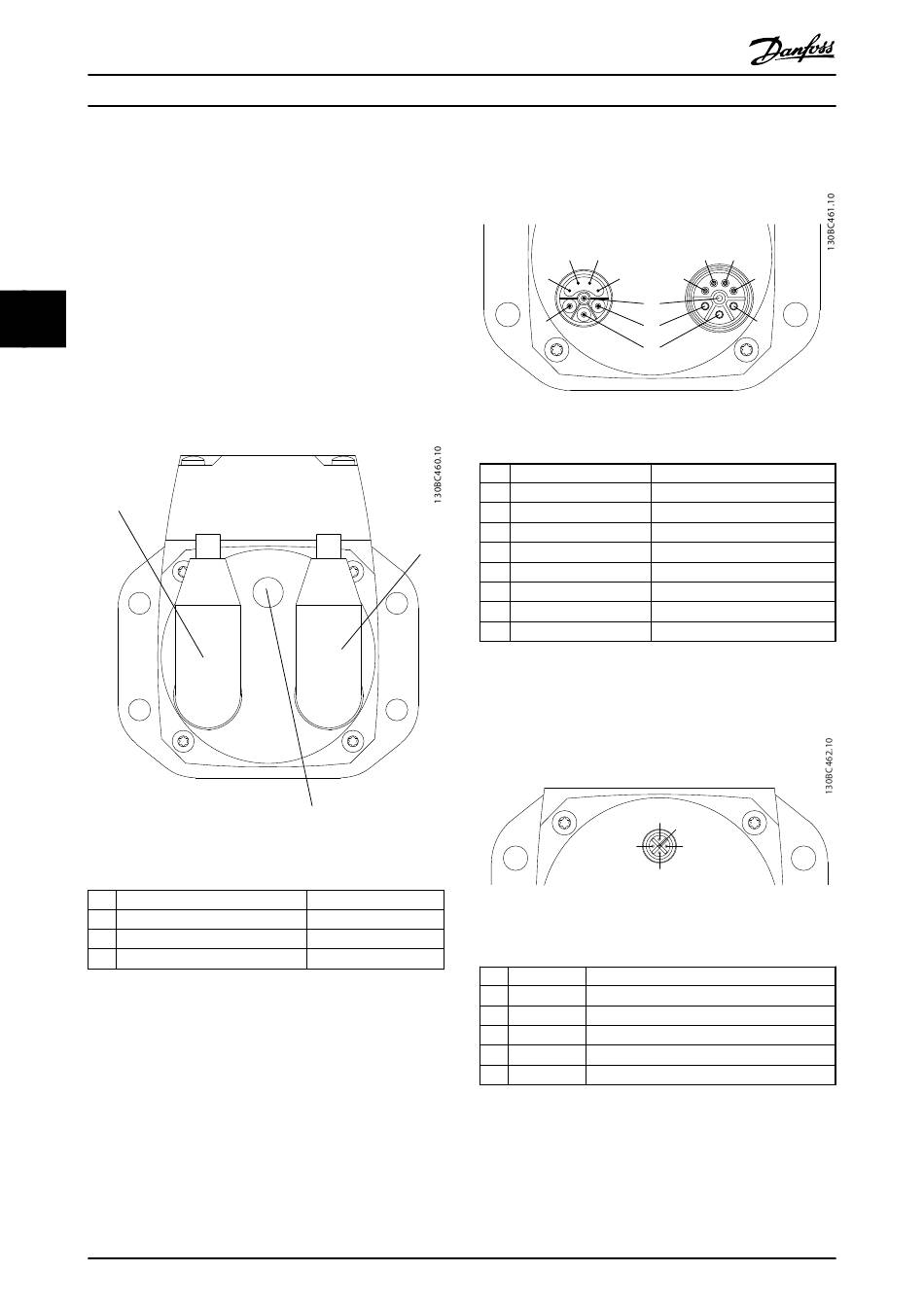

Illustration 4.13 Connectors
No. Description
1 Power and CAN bus (Input)
2 Power and CAN bus (Output)
3 Sensor (Input)
Table 4.8 Connectors
20
®
VLT ISD 410 Servomotor Operating Instructions
Pin
A
B
C
2
D
1
2
3
4
3
Size
M23, external thread
M23, internal thread
M12, external thread
Pin Signal
1
2
3
4
5
®
MG75D102 - VLT is a registered Danfoss trademark
input
B C
A D
4
1
3
2
PE
Illustration 4.14 Power and CAN Bus Ports
Signal Function
CAN GND CAN earth
CAN_L CAN low
CAN_H CAN high
CAN V CAN +5 V
cc
–UDC Power earth
PE PE
+UDC +300 V
+24 V Safety (STO) STO, referenced to –UDC
Table 4.9 Power and CAN Bus Ports
4
3
2
Illustration 4.15 Sensor Port
Function
PELV+ External sensor supply voltage (PELV)
Analog In Analog input
PELV-GND Earth
Digital In Digital input
Digital Out Digital output
Table 4.10 Sensor Port
