2 Appendix

2.2 Software updating

The Teldat C+ can be updated to newer versions. Please contact your dealer for further details on new versions.
There are several ways to update a Teldat router. For further information, please see the software upgrading manual.
The software required to update Teldat routers is supplied in a format known as distribution. This consists of a
single file that contains all the files needed to update your device, as well as detailed information on the content.

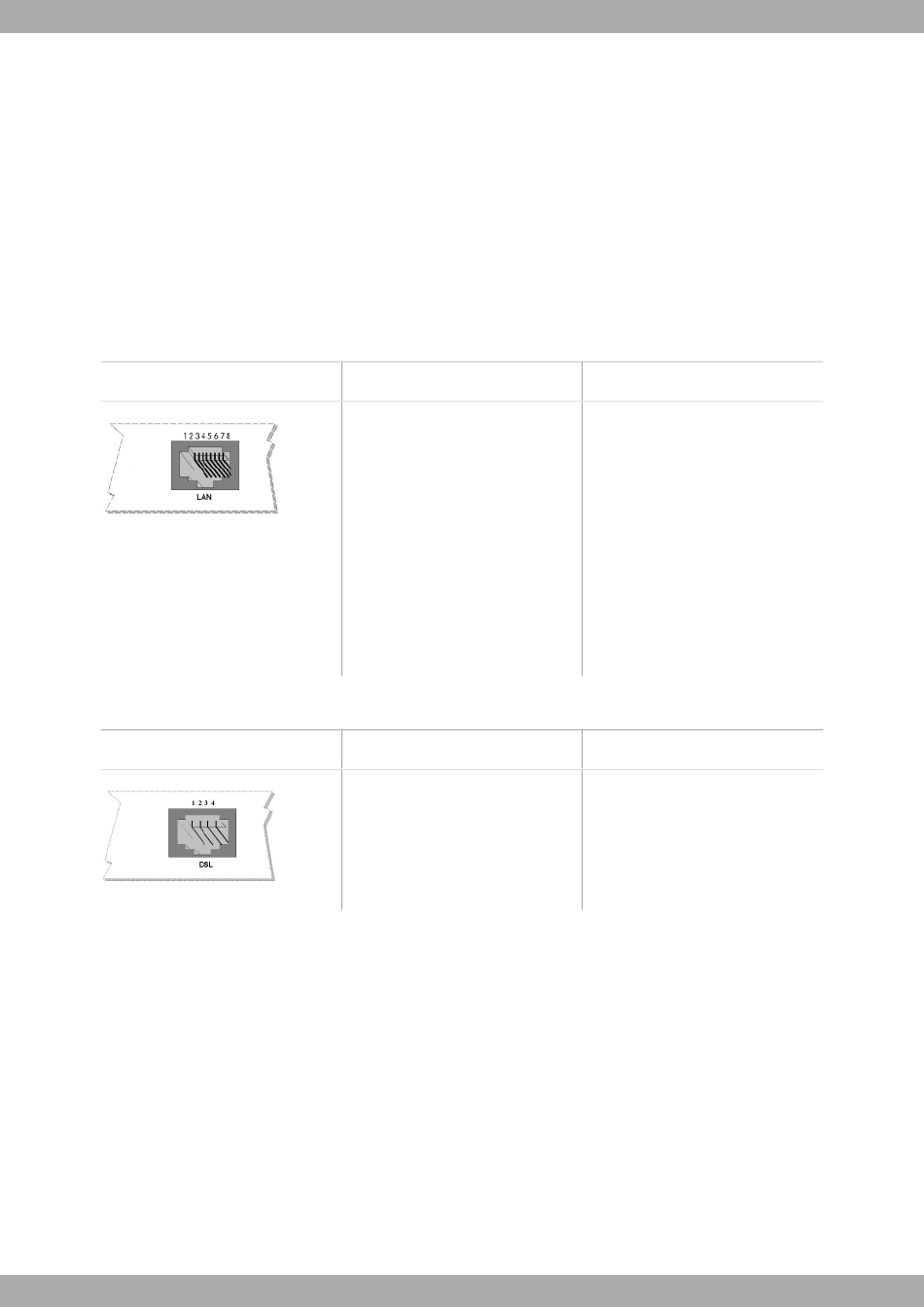

2.3 Connectors

2.3.1 LAN Connector

,RJ45 LAN

2.3.2 DSL Connector

RJ11 DSL
16
RJ45 PINOUT
1
2
3
4
5
6
7
8
RJ11 PINOUT
1
2
3
4
LAN
Tx+(input)
Tx-(input)
Rx+(output)
--
--
Rx-(output)
--
--
DSL
Joined to 2
Line
Line
Joined to 3
