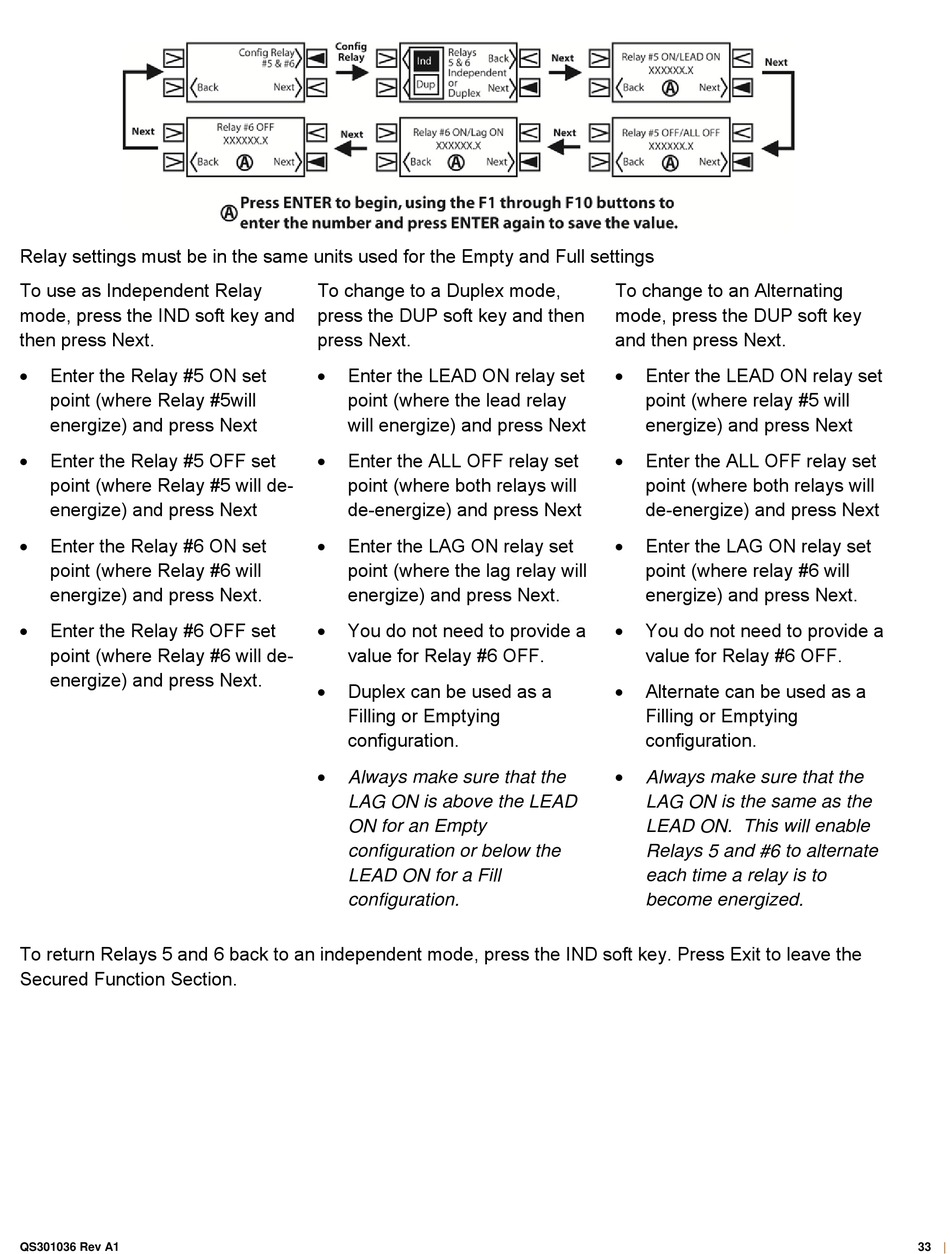

Relay settings must be in the same units used for the Empty and Full settings
To use as Independent Relay
mode, press the IND soft key and
then press Next.

Enter the Relay #5 ON set
point (where Relay #5will
energize) and press Next

Enter the Relay #5 OFF set
point (where Relay #5 will de-
energize) and press Next

Enter the Relay #6 ON set
point (where Relay #6 will
energize) and press Next.

Enter the Relay #6 OFF set
point (where Relay #6 will de-
energize) and press Next.
To return Relays 5 and 6 back to an independent mode, press the IND soft key. Press Exit to leave the
Secured Function Section.
QS301036 Rev A1
To change to a Duplex mode,
press the DUP soft key and then
press Next.

Enter the LEAD ON relay set
point (where the lead relay
will energize) and press Next

Enter the ALL OFF relay set
point (where both relays will
de-energize) and press Next

Enter the LAG ON relay set
point (where the lag relay will
energize) and press Next.

You do not need to provide a
value for Relay #6 OFF.

Duplex can be used as a
Filling or Emptying
configuration.

Always make sure that the
LAG ON is above the LEAD
ON for an Empty
configuration or below the
LEAD ON for a Fill
configuration.
To change to an Alternating
mode, press the DUP soft key
and then press Next.

Enter the LEAD ON relay set
point (where relay #5 will
energize) and press Next

Enter the ALL OFF relay set
point (where both relays will
de-energize) and press Next

Enter the LAG ON relay set
point (where relay #6 will
energize) and press Next.

You do not need to provide a
value for Relay #6 OFF.

Alternate can be used as a
Filling or Emptying
configuration.

Always make sure that the
LAG ON is the same as the
LEAD ON. This will enable
Relays 5 and #6 to alternate
each time a relay is to
become energized.
