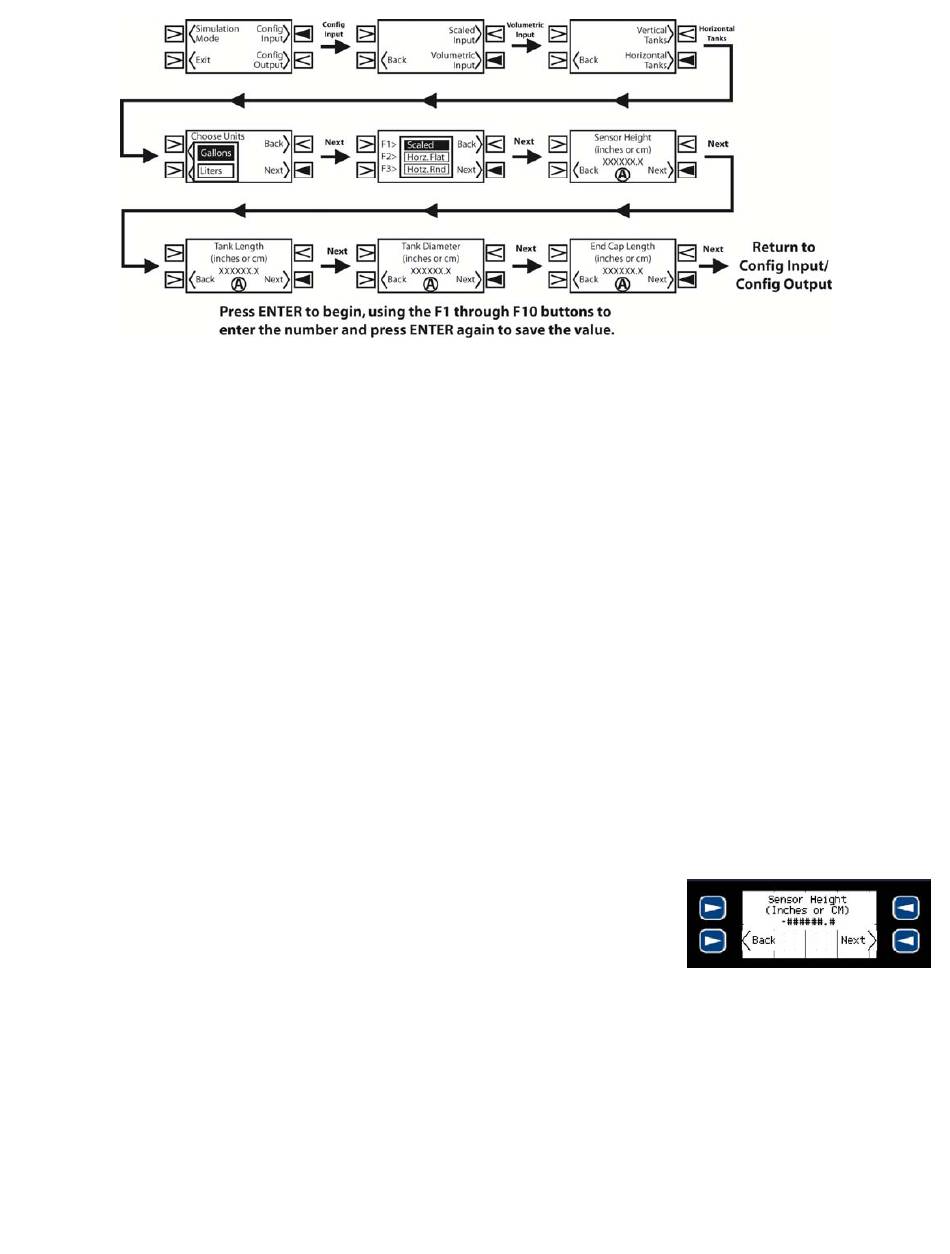

2. Press the Config Inputs Soft Key to begin. The first screen to appear is for Scaled Inputs or
Volumetric Inputs.
a. Use the Scaled Input Soft Key to advance to the Scaled/Non-Scaled Configuration (see
previous section).
b. Use the Volumetric Input Soft Key to advance to Vertical or Horizontal Tanks.
3. Press the Soft Key for either Vertical or Horizontal Tanks.
a. Use the Vertical Tanks Soft Key to advance to Vertical Tanks (see next section).
b. Use the Horizontal Tanks Soft Key to advance to Choose Units.
4. Choose Units allows the selection of either Gallons or Liters to appear in the display. Use the Gallons
Soft Key to select Gallons and the Liters Soft Key to select Liters.
5. Press the Next Soft Key to continue on to Tank Shape.
6. Tank Shape allows the selection of a tank shape for calculating the volume of the tank. Use the Horz.
Flat Soft Key to select a Horizontal Tank with Flat Ends and the Horz. Rnd Soft Key to select a
Horizontal Tank with Round Ends. See above to review the tanks shapes.
7. Press the Next Soft Key to proceed to Sensor Height.
8. Sensor Height is the distance from the bottom of the tank to the bottom of the sensor. Measure this
distance in inches or cm.
9. To change the Sensor Height value, first press the ENTER key. The
value will now be highlighted and you can enter the number using the
F-Keys as you would a 10-digit key pad, with the down arrow to enter
the decimal point. Then, press ENTER again to complete the entry and
store the value into memory.
10. Press the Next Soft Key to proceed to Tank Length.
11. Tank Length is the height of the tank. Please refer to the illustrations above to identify the dimension
to measure.
