MOUNTING THE COMMANDER CONTROLLER
The Commander Controller can be mounted through a panel or on a DIN rail.
Panel Mounting
Panel design should be completed with the Commander
Controller's requirements in mind. Use the standard cutout for a
¼ DIN: 3.622" (92 mm) x 3.622" (92 mm). Use the four mounting
clips to secure the display to the panel. A mounting clip will
attach to all four sides of the display. With this in mind, panel
mount accordingly:
1) Remove all connectors from the Commander Controller;
2) Press the DIN rail clip up for passing the Commander
Controller through the cutout;
3) Verify that the Commander Controller's gasket is
installed, is free from dust and debris, and has all corners
secure;
4) Pass the Commander Controller through the cutout;
5) Insert each of the four mounting clips into the Commander Controller's case. One clip should be
installed at each corner. Tighten each screw so that the clip is held in place;
6) Tighten the screws on the clips so that the gasket is pressed against the panel; and
7) Mounting is now complete.
DIN rail mounting
The Commander Controller is designed to clip onto a standard 35
millimeter DIN rail. If your installation requires liquid or dust
protection, make sure the controller is placed in an appropriate
sealed panel when mounting on the DIN rail. Use the following
steps to mount on the DIN rail.
1) Move the DIN rail clip to the lower position;
2) Clip the "Top Clips" on the top of the DIN rail;
3) Press the Commander Controller into place; and
4) Press the DIN rail clip up. A small flat-head screwdriver
can be used in the slot of the DIN rail clip if clearance is an
issue.
The DIN rail connection does NOT provide an earth ground.
Only qualified personnel familiar with the construction and operation of this equipment and the hazards involved
should install, adjust, operate, or service this equipment. Read and understand all applicable manuals in their
entirety before proceeding. Failure to observe this precaution could result in severe bodily injury or loss of life. All
applicable codes and standards need to be followed in the installation of this product.
QS301036 Rev A1

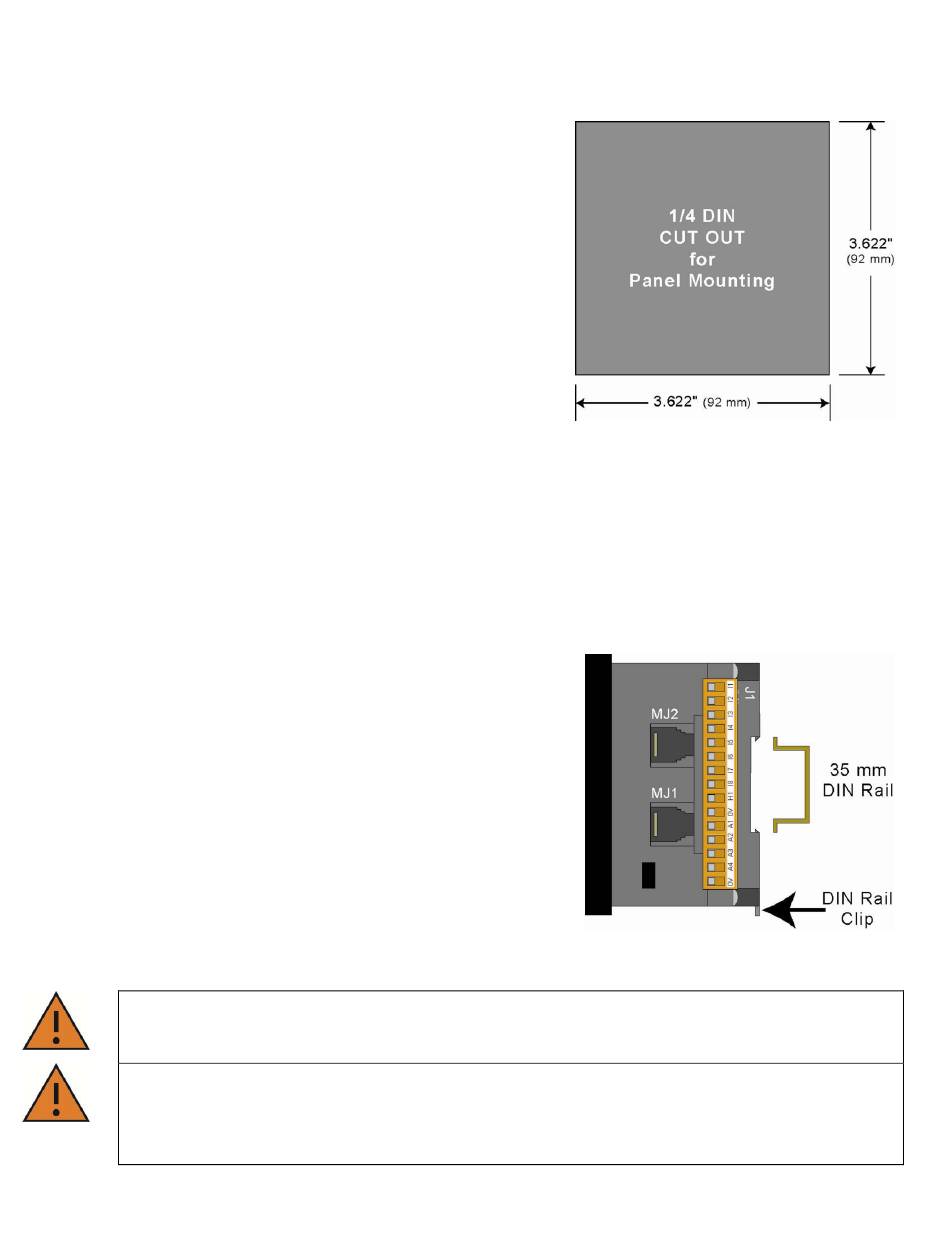

Panel Mounting Cut Out
Din Rail Mounting
