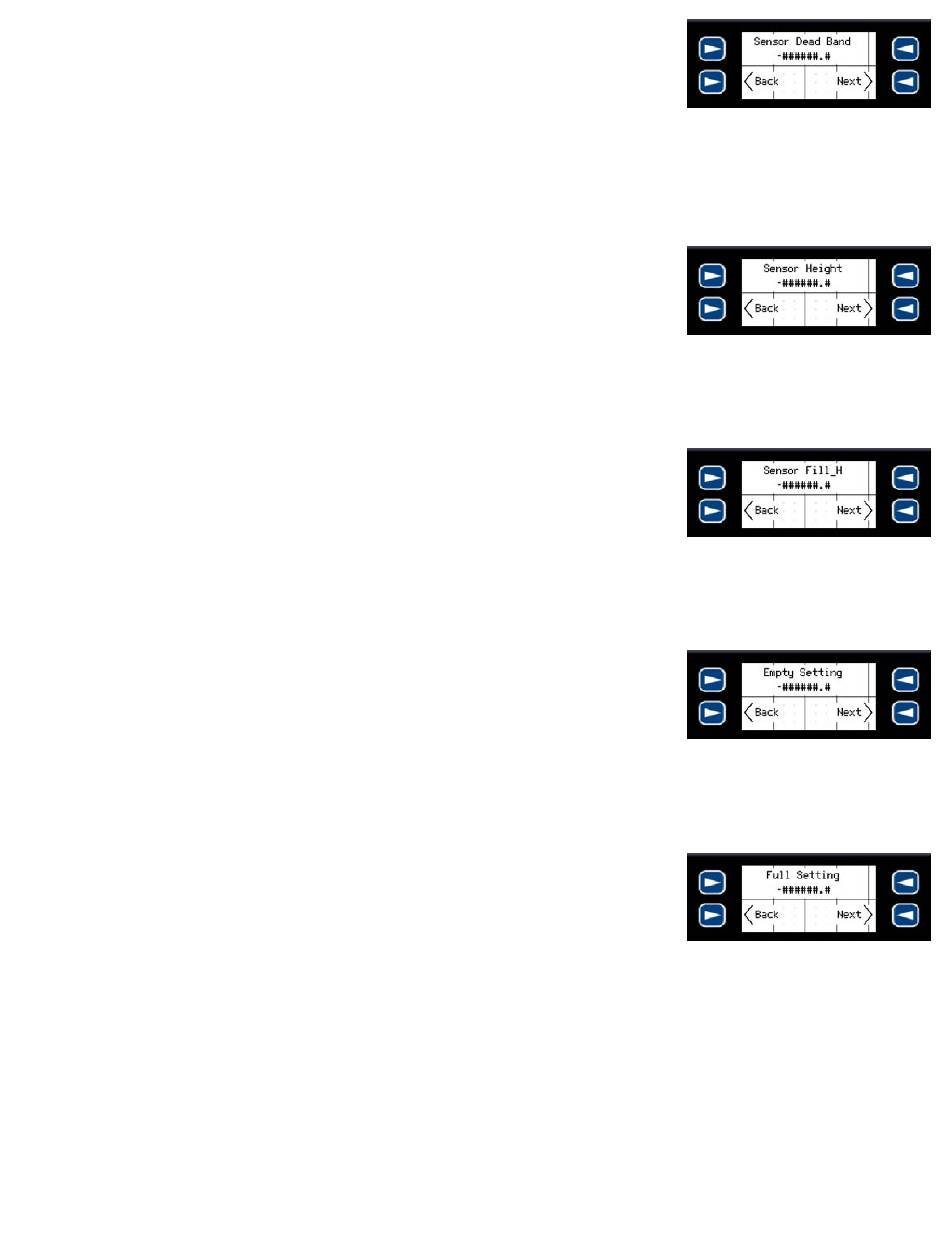

8. To change the Sensor Dead Band value, first press the ENTER key.
The value will now be highlighted and you can enter the number using
the F-Keys as you would a 10-digit key pad, with the down arrow to
enter the decimal point. Then, press ENTER again to complete the
entry and store the value into memory.
9. Press the Next Soft Key to proceed to Sensor Height.
10. Sensor Height is the distance from the bottom of the tank to the bottom of the installed sensor (see
next page).
11. To change the Sensor Height value, first press the ENTER key. The
value will now be highlighted and you can enter the number using the
F-Keys as you would a 10-digit key pad, with the down arrow to enter
the decimal point. Then, press ENTER again to complete the entry and
store the value into memory.
12. Press the Next Soft Key to proceed to Sensor Fill-H.
13. Sensor Fill-H is the distance from the bottom of the tank to the highest level of liquid (see next page).
14. To change the Sensor Fill-H value, first press the ENTER key. The
value will now be highlighted and you can enter the number using the
F-Keys as you would a 10-digit key pad, with the down arrow to enter
the decimal point. Then, press ENTER again to complete the entry and
store the value into memory.
15. Press the Next Soft Key to proceed to Empty Setting.
16. Empty Setting is the display value when the tank is empty.
17. To change the Empty Setting value, first press the ENTER key. The
value will now be highlighted and you can enter the number using the
F-Keys as you would a 10-digit key pad, with the down arrow to enter
the decimal point. Then, press ENTER again to complete the entry and
store the value into memory.
18. Press the Next Soft Key to proceed to Full Setting.
19. Full Setting is the display value when the tank is full.
20. To change the Full Setting value, first press the ENTER key. The
value will now be highlighted and you can enter the number using the
F-Keys as you would a 10-digit key pad, with the down arrow to enter
the decimal point. Then, press ENTER again to complete the entry and
store the value into memory.
21. Press the Next Soft Key to return to Config Channel #_ screen.
22. If you need to configure another Input Channel, go back to step 2. If not, continue on to step 23.
23. Press the NEXT Soft Key to return to the Config Inputs and Config Outputs screen.
24. Press Exit Soft Key to end configuration.
