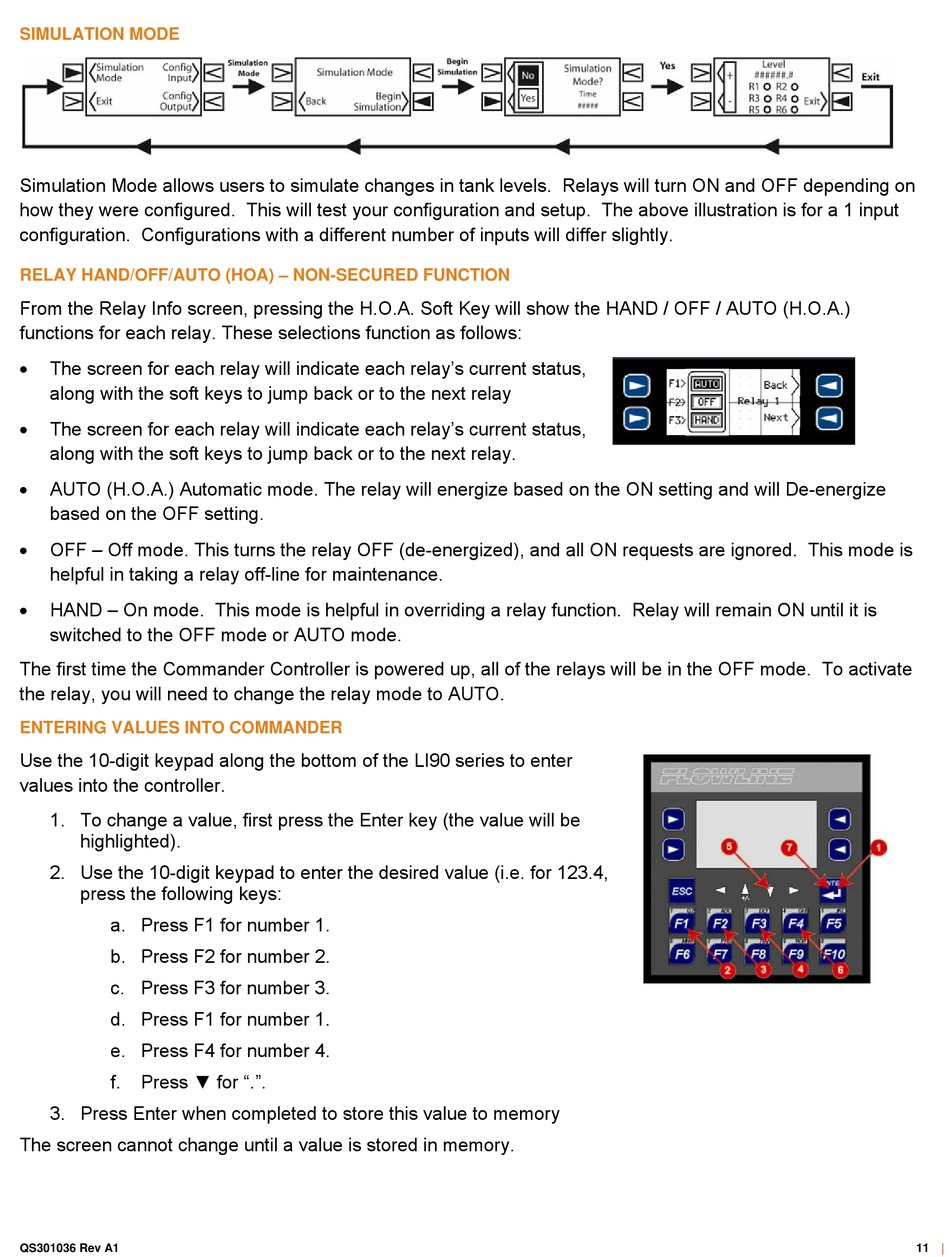

SIMULATION MODE

Simulation Mode allows users to simulate changes in tank levels. Relays will turn ON and OFF depending on
how they were configured. This will test your configuration and setup. The above illustration is for a 1 input
configuration. Configurations with a different number of inputs will differ slightly.
RELAY HAND/OFF/AUTO (HOA) – NON-SECURED FUNCTION
From the Relay Info screen, pressing the H.O.A. Soft Key will show the HAND / OFF / AUTO (H.O.A.)
functions for each relay. These selections function as follows:

The screen for each relay will indicate each relay's current status,
along with the soft keys to jump back or to the next relay

The screen for each relay will indicate each relay's current status,
along with the soft keys to jump back or to the next relay.

AUTO (H.O.A.) Automatic mode. The relay will energize based on the ON setting and will De-energize
based on the OFF setting.

OFF – Off mode. This turns the relay OFF (de-energized), and all ON requests are ignored. This mode is
helpful in taking a relay off-line for maintenance.

HAND – On mode. This mode is helpful in overriding a relay function. Relay will remain ON until it is
switched to the OFF mode or AUTO mode.
The first time the Commander Controller is powered up, all of the relays will be in the OFF mode. To activate
the relay, you will need to change the relay mode to AUTO.
ENTERING VALUES INTO COMMANDER
Use the 10-digit keypad along the bottom of the LI90 series to enter
values into the controller.
1. To change a value, first press the Enter key (the value will be
highlighted).
2. Use the 10-digit keypad to enter the desired value (i.e. for 123.4,
press the following keys:
a. Press F1 for number 1.
b. Press F2 for number 2.
c. Press F3 for number 3.
d. Press F1 for number 1.
e. Press F4 for number 4.
f. Press ▼ for ".".
3. Press Enter when completed to store this value to memory
The screen cannot change until a value is stored in memory.
QS301036 Rev A1 11 |
