FlowLine Commander LI90 Series Quick Start Manual page 31

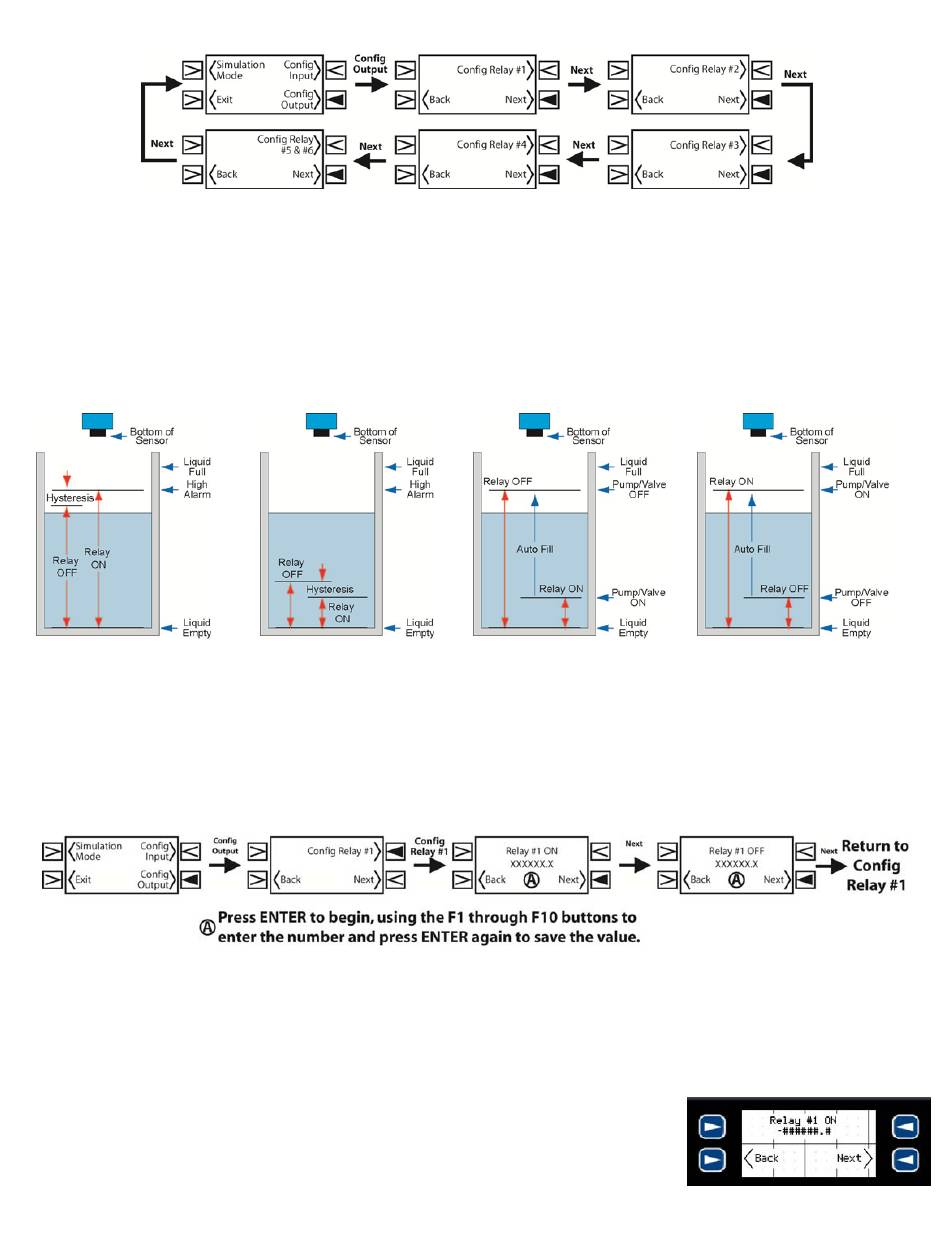

CONFIGURE OUTGOING RELAYS
To configure outgoing data, simply press the Config Outputs Soft Key from within the Secured Functions
section. Press the Next or Back soft keys to scroll to the relay you would like to configure. As an option,
Relays 5 and 6 can be used as a Duplex / Alternation function. Select the Config. Relay #5 and #6 upper right
soft key to configure relays #5 and #6. This setting will always configure both relays #5 and #6.
Relays #1, #2, #3 and #4 are controlled directly by the Transmitter Input. Each relay will ask for a Relay ON
and Relay OFF level. These settings must be in the same units used for the Empty and Full incoming data
settings.
High Alarm
EXAMPLE: If a tank's sensor is reading between 0 to 500 gallons, then the relay set points must be measured
in gallons. For Alarms (High or Low), use the ON point where the relay will start and the OFF as a hysteresis
to prevent chattering of the relay. For Pumps and Valves (Auto Fill or Auto Empty), use both settings as the
ON/OPEN and OFF/CLOSE points for the device.
1. Press ENTER key for 5 seconds to access the Config Inputs and Config Outputs screen.
2. Press the Config Outputs Soft Key to begin. The first screen to appear is for Relay #1.
a. Use the Next Soft Key to advance to the next relay.
b. Use the Back Soft Key to return to the previous screen.
3. If the correct Relay is displayed, press the Config Relay #_ Soft Key to advance to Relay #_ ON.
4. Relay #_ ON is the set point where the relay will energize. For Alarm
functions, this is the liquid level where the alarm will activate. For
Automatic Fill or Empty functions, this is the level where the process
begins.
QS301036 Rev A1
Low Alarm Automatic Fill Automatic Empty
31 |
