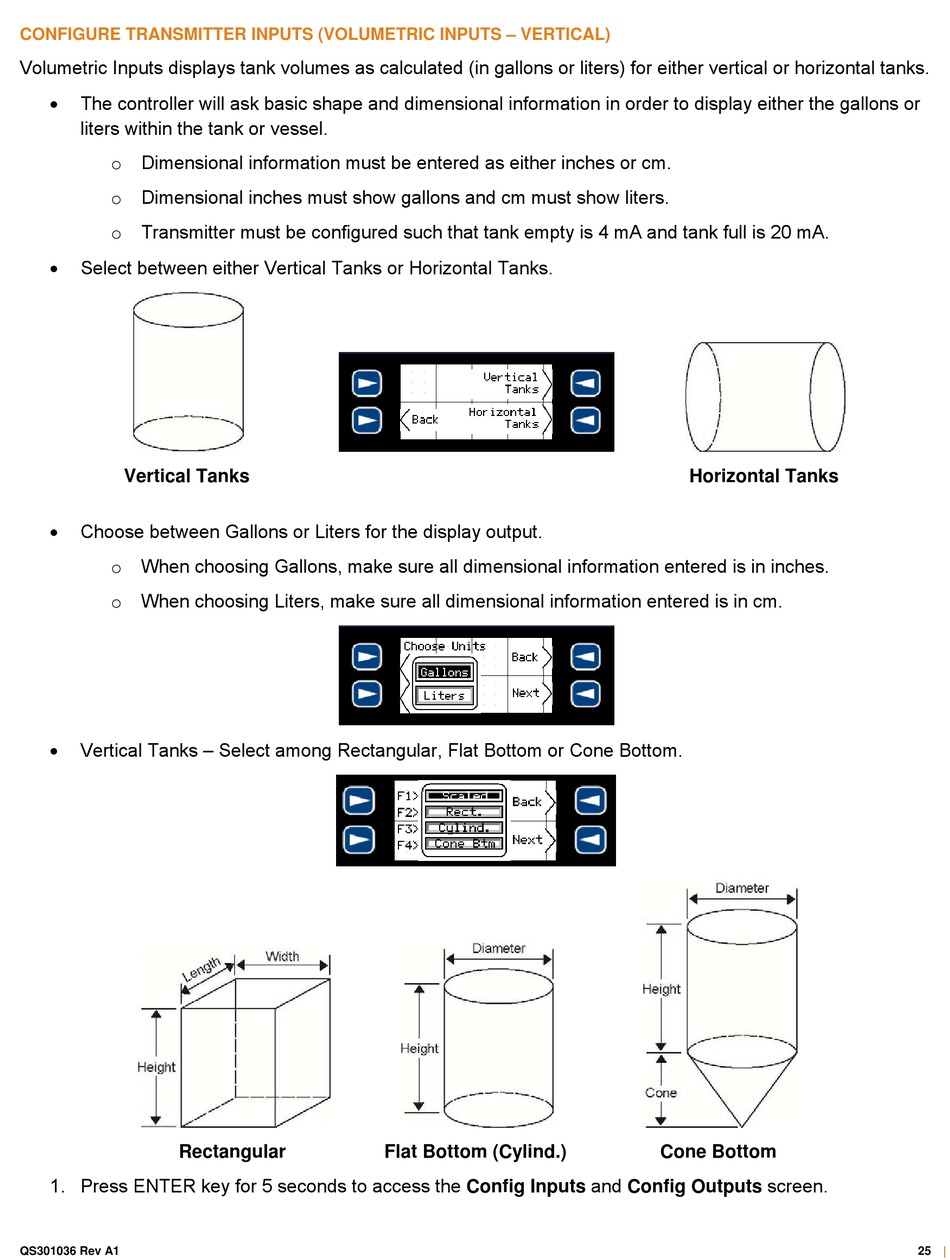

CONFIGURE TRANSMITTER INPUTS (VOLUMETRIC INPUTS – VERTICAL)
Volumetric Inputs displays tank volumes as calculated (in gallons or liters) for either vertical or horizontal tanks.

The controller will ask basic shape and dimensional information in order to display either the gallons or
liters within the tank or vessel.
o Dimensional information must be entered as either inches or cm.
o Dimensional inches must show gallons and cm must show liters.
o Transmitter must be configured such that tank empty is 4 mA and tank full is 20 mA.

Select between either Vertical Tanks or Horizontal Tanks.
Vertical Tanks

Choose between Gallons or Liters for the display output.
o When choosing Gallons, make sure all dimensional information entered is in inches.
o When choosing Liters, make sure all dimensional information entered is in cm.

Vertical Tanks – Select among Rectangular, Flat Bottom or Cone Bottom.
Rectangular
1. Press ENTER key for 5 seconds to access the Config Inputs and Config Outputs screen.
QS301036 Rev A1
Flat Bottom (Cylind.)
Horizontal Tanks
Cone Bottom
