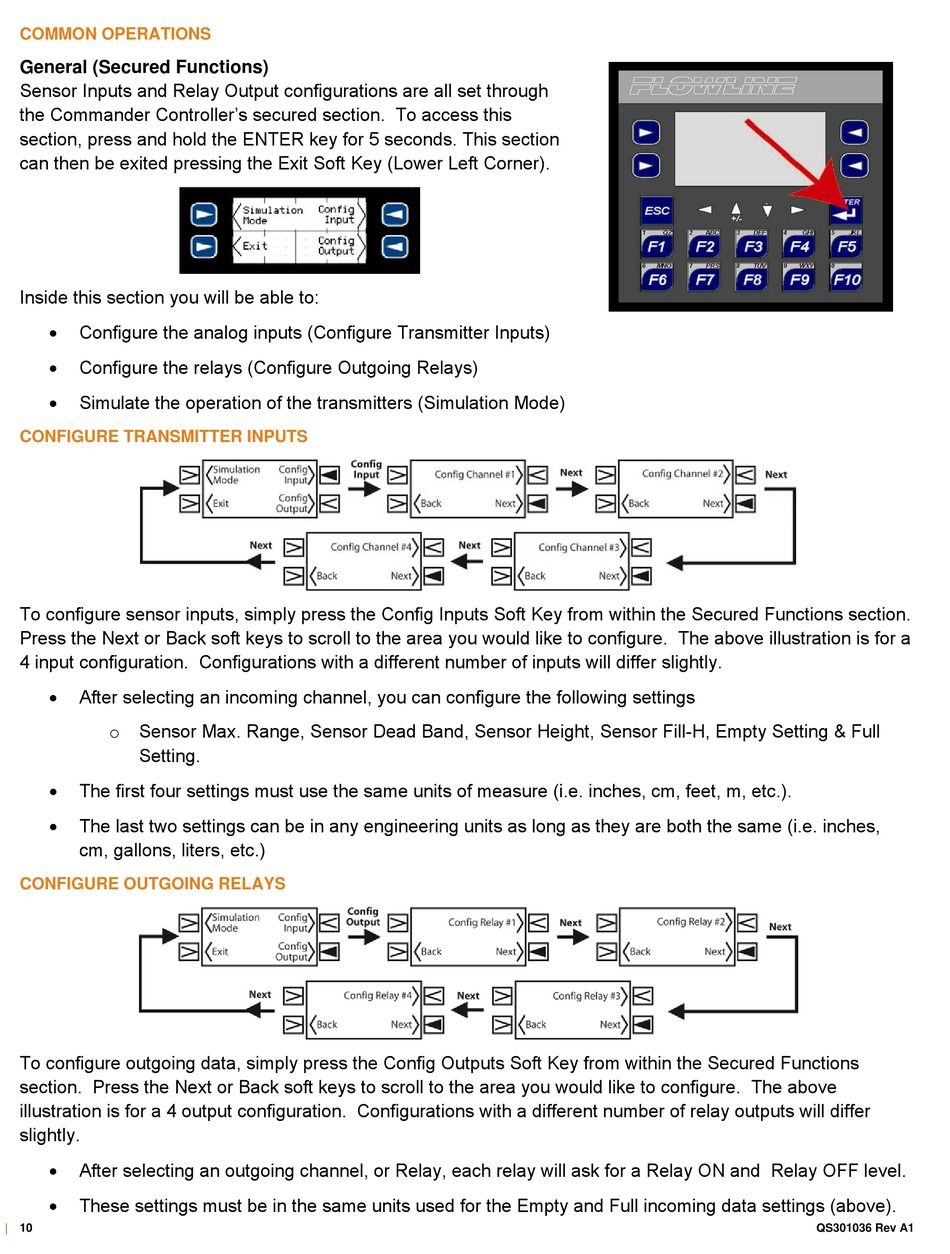

COMMON OPERATIONS

General (Secured Functions)
Sensor Inputs and Relay Output configurations are all set through
the Commander Controller's secured section. To access this
section, press and hold the ENTER key for 5 seconds. This section
can then be exited pressing the Exit Soft Key (Lower Left Corner).
Inside this section you will be able to:

Configure the analog inputs (Configure Transmitter Inputs)

Configure the relays (Configure Outgoing Relays)

Simulate the operation of the transmitters (Simulation Mode)
CONFIGURE TRANSMITTER INPUTS
To configure sensor inputs, simply press the Config Inputs Soft Key from within the Secured Functions section.
Press the Next or Back soft keys to scroll to the area you would like to configure. The above illustration is for a
4 input configuration. Configurations with a different number of inputs will differ slightly.

After selecting an incoming channel, you can configure the following settings
o Sensor Max. Range, Sensor Dead Band, Sensor Height, Sensor Fill-H, Empty Setting & Full
Setting.

The first four settings must use the same units of measure (i.e. inches, cm, feet, m, etc.).

The last two settings can be in any engineering units as long as they are both the same (i.e. inches,
cm, gallons, liters, etc.)
CONFIGURE OUTGOING RELAYS
To configure outgoing data, simply press the Config Outputs Soft Key from within the Secured Functions
section. Press the Next or Back soft keys to scroll to the area you would like to configure. The above
illustration is for a 4 output configuration. Configurations with a different number of relay outputs will differ
slightly.

After selecting an outgoing channel, or Relay, each relay will ask for a Relay ON and Relay OFF level.

These settings must be in the same units used for the Empty and Full incoming data settings (above).
| 10 QS301036 Rev A1
