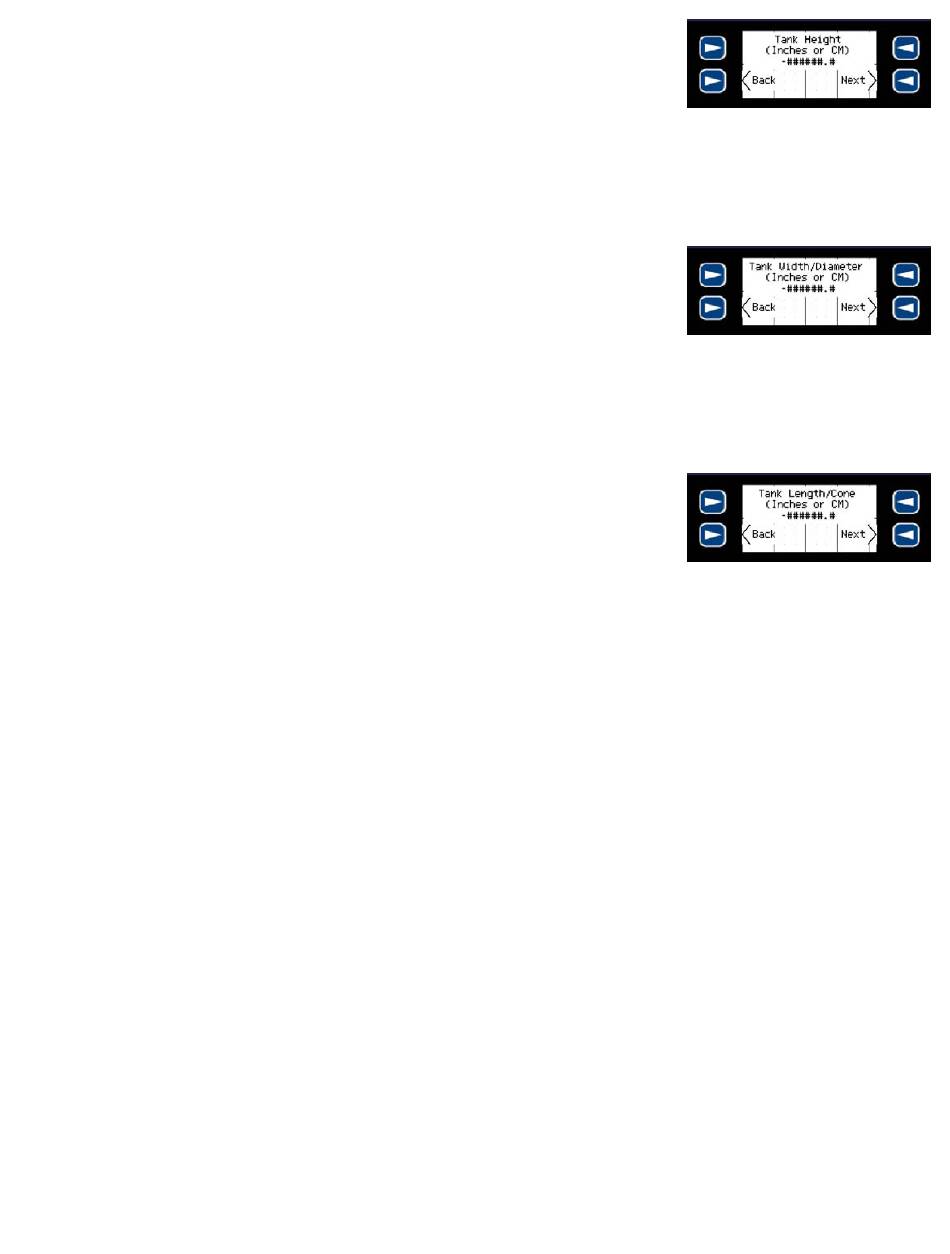

12. To change the Tank Height value, first press the ENTER key. The
value will now be highlighted and you can enter the number using the
F-Keys as you would a 10-digit key pad, with the down arrow to enter
the decimal point. Then, press ENTER again to complete the entry and
store the value into memory.
13. Press the Next Soft Key to proceed to Tank Width/Diameter.
14. Tank Width/Diameter is the width or diameter of the tank. Please refer to the illustrations above to
identify the dimension to measure.
15. To change the Tank Width/Diameter value, first press the ENTER
key. The value will now be highlighted and you can enter the number
using the F-Keys as you would a 10-digit key pad, with the down arrow
to enter the decimal point. Then, press ENTER again to complete the
entry and store the value into memory.
16. Press the Next Soft Key to proceed to Tank Length/Cone.
17. Tank Length/Cone is the length or cone of the tank. Please refer to the illustrations above to identify
the dimension to measure
18. To change the Tank Length/Cone value, first press the ENTER key.
The value will now be highlighted and you can enter the number using
the F-Keys as you would a 10-digit key pad, with the down arrow to
enter the decimal point. Then, press ENTER again to complete the
entry and store the value into memory.
19. Press the Next Soft Key to return to the Config Inputs and Config Outputs screen.
20. Press Exit Soft Key to end configuration.
