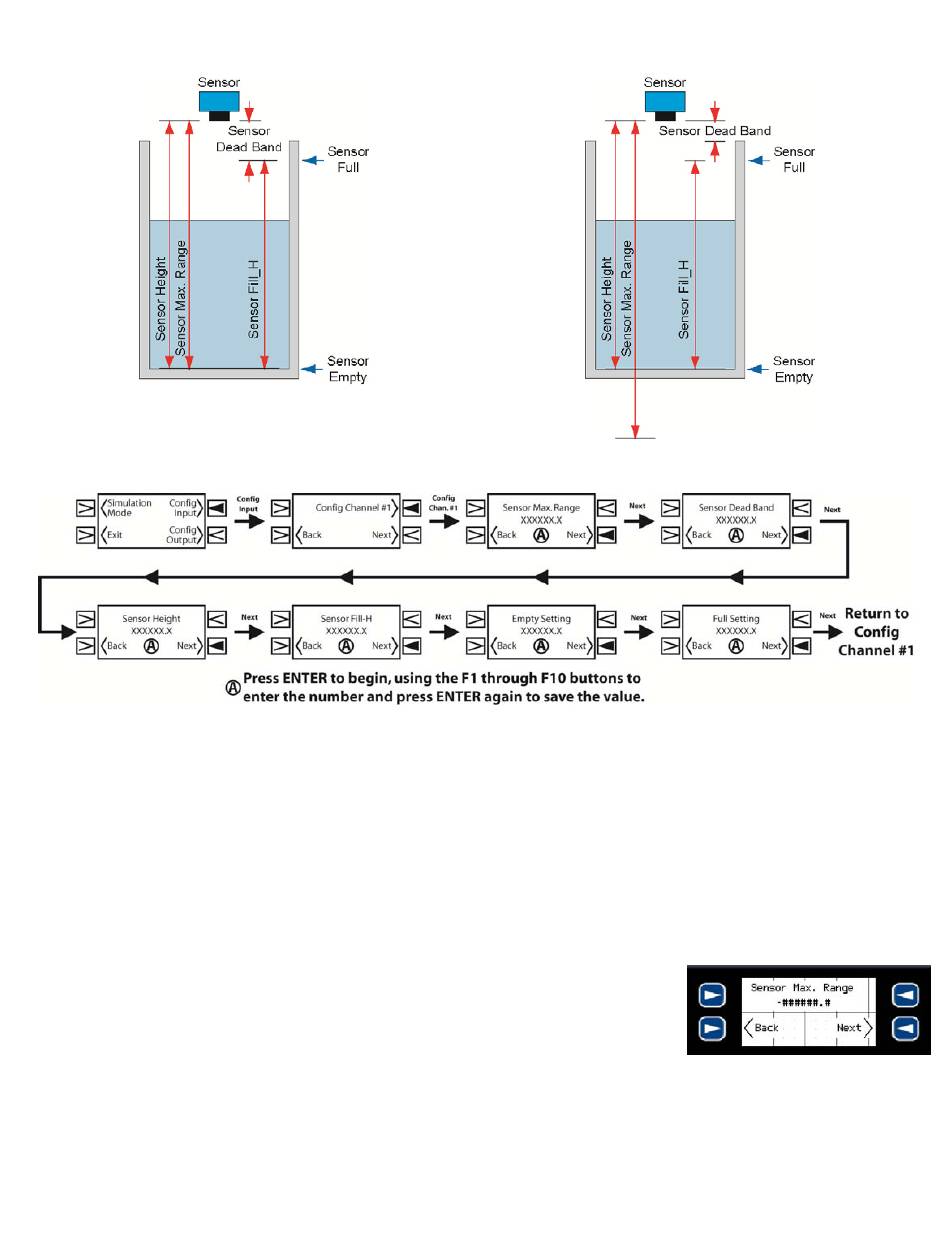

CONFIGURE TRANSMITTER INPUTS
Sensor with Scaled Output
1. Press ENTER key for 5 seconds to access the Config Inputs and Config Outputs screen.
2. Press the Config Inputs Soft Key to begin. The first screen to appear is for Channel #1.
a. Use the Next Soft Key to advance to the next channel.
b. Use the Back Soft Key to return to the previous screen.
3. If the correct Channel is displayed, press the Config Channel #_ Soft Key to advance to Sensor Max.
Range.
4. Sensor Max. Range is the distance from the bottom of the tank to the bottom of the installed sensor
with a scaled 4-20 mA output. For a fixed output, this is the maximum range of the sensor (see next
page). Use the sensor's manual to obtain the sensors maximum range (4 mA output).
5. To change the Sensor Max. Range value, first press the ENTER key.
The value will now be highlighted and you can enter the number using
the F-Keys as you would a 10-digit key pad, with the down arrow to
enter the decimal point. Then, press ENTER again to complete the
entry and store the value into memory.
6. Press the Next Soft Key to proceed to Sensor Dead Band.
7. Sensor Dead Band is the distance from the full level of liquid to the bottom of the sensor with a scaled
4-20 mA output. For a fixed output, this is the dead band for the level sensor (see next page). Use the
sensor's manual to obtain the sensors dead band (20 mA output).
QS301036 Rev A1
Sensor with Non-Scaled Output (fixed output)
