Mounting
38
6.2

Mounting the device

6.2.1

Required mounting tools

• For mounting thread 3/4": Hexagonal wrench 36 mm
• For mounting thread 1-1/2": Hexagonal wrench 55 mm
• To shorten rod or coax probes: Saw
• To shorten rope probes:
– Allen key AF 3 mm (for 4mm ropes) or AF 4 mm (for 6 mm ropes)
– Saw or bolt cutter
• For flanges and other process connections: appropriate mounting tools
• To turn the housing: Hexagonal wrench 8 mm
6.2.2

Shortening the probe

Shortening rod probes
Rod probes must be shortened if the distance to the container floor or outlet cone is less
than 10 mm (0.4 in). The rods of a rod probe are shortened by sawing at the bottom end.
Rod probes of FMP52 can not be shortened as they are coated.

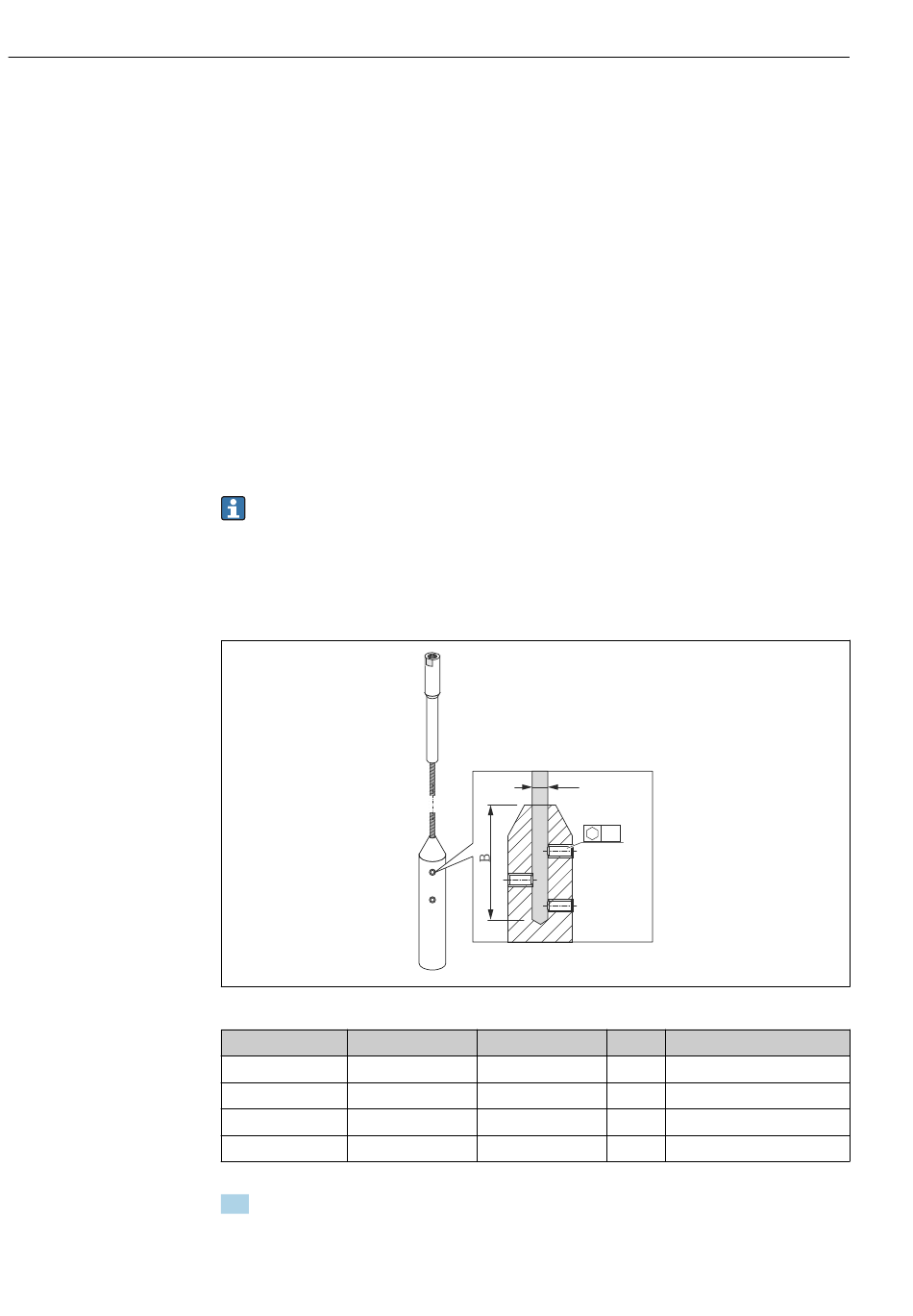

Shortening rope probes
Rope probes must be shortened if the distance to the container floor or outlet cone is less
than 150 mm (6 in).
Rope material A
316 4 mm (0.16 in)
316 6 mm (0.24 in)
PA > steel 6 mm (0.24 in)
PA > steel 8 mm (0.31 in)
1. Using an Allen key, loosen the set screws at the end-of-probe weight. Note: The set
screws have got a clamping coating in order to prevent accidental loosening. Thus an
increased torque might be necessary to loosen them.
Levelflex FMP56, FMP57 HART
A
C
B C
40 mm (1.6 in) 3 mm
55 mm (2.2 in) 4 mm
40 mm (1.6 in) 3 mm
55 mm (2.2 in) 4 mm
A0021693
Torque for set screws
5 Nm (3.69 lbf ft)
15 Nm (11.06 lbf ft)
5 Nm (3.69 lbf ft)
15 Nm (11.06 lbf ft)
