Levelflex FMP56, FMP57 HART
Endress+Hauser

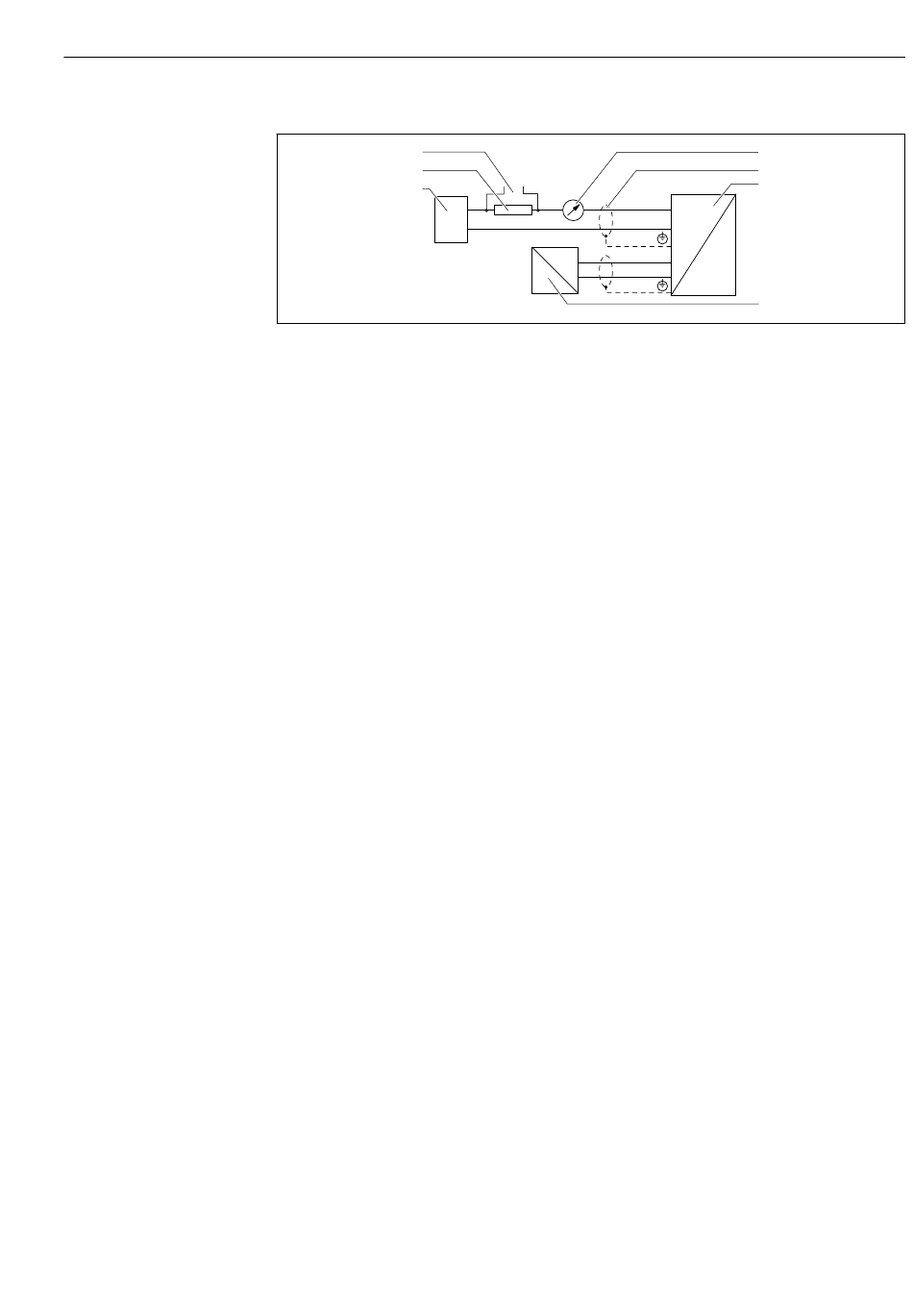

Block diagram 4-wire: 4-20 mA HART (90 to 253 V
3
2
1
 23 Block diagram 4-wire: 4-20 mA HART (90 to 253 V
1 Evaluation unit, e.g. PLC
2 HART communication resistor (≥ 250 Ω); observe maximum load
3 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem)
4 Analog display device; observe maximum load
5 Cable scree; observe cable specification
6 Measuring device
7 Supply voltage; observe terminal voltage, observe cable specification
Electrical connection
)
AC
4
5
6
+
3
I
-
4
L
1
Y
N
2
7
)
AC
A0036527
51
