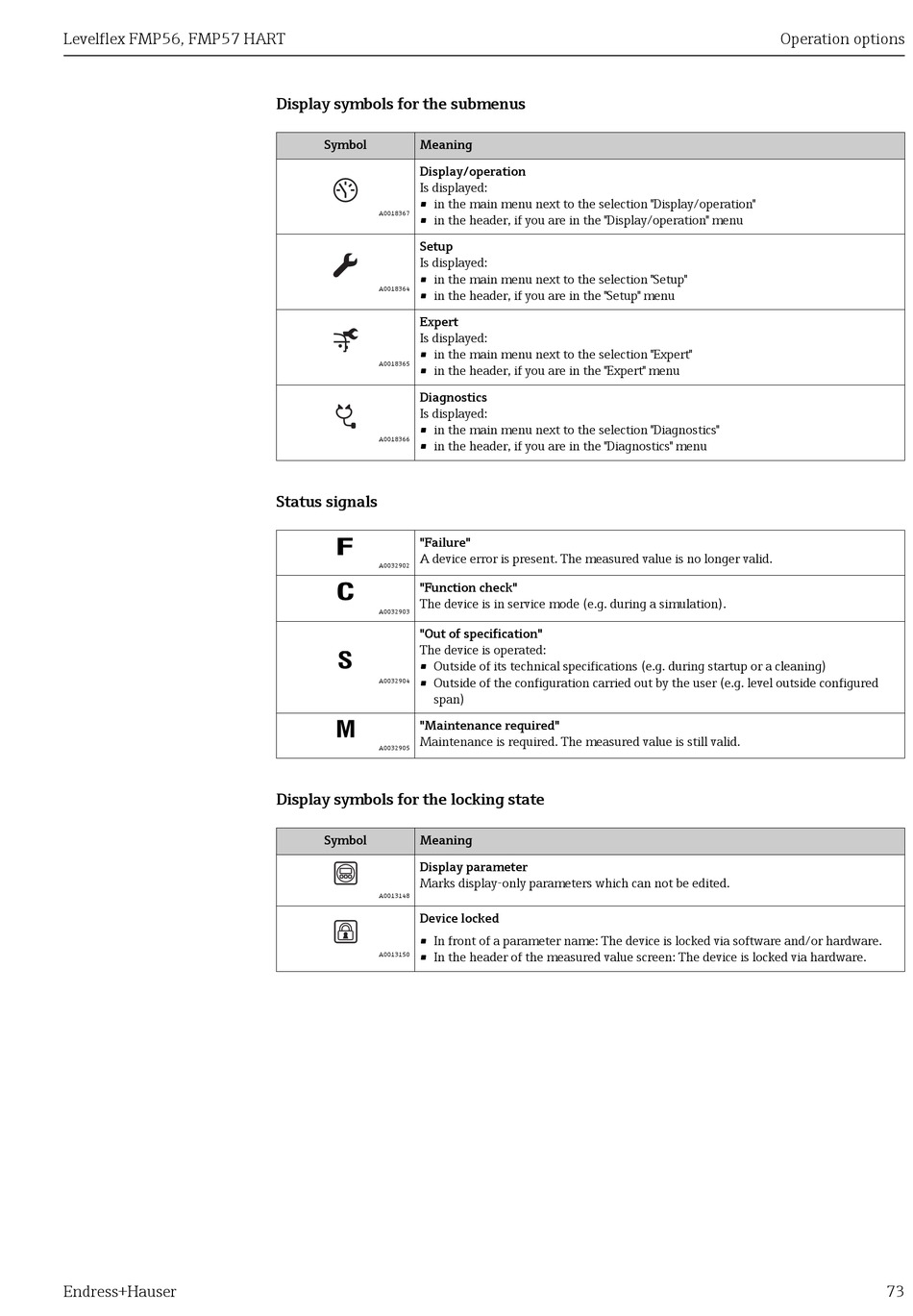

Levelflex FMP56, FMP57 HART
Endress+Hauser
Display symbols for the submenus
Symbol
Meaning
Display/operation
Is displayed:
• in the main menu next to the selection "Display/operation"
A0018367
• in the header, if you are in the "Display/operation" menu
Setup
Is displayed:
• in the main menu next to the selection "Setup"
A0018364
• in the header, if you are in the "Setup" menu
Expert
Is displayed:
• in the main menu next to the selection "Expert"
A0018365
• in the header, if you are in the "Expert" menu
Diagnostics
Is displayed:
• in the main menu next to the selection "Diagnostics"
A0018366
• in the header, if you are in the "Diagnostics" menu
Status signals
"Failure"
A device error is present. The measured value is no longer valid.
A0032902
"Function check"
The device is in service mode (e.g. during a simulation).
A0032903
"Out of specification"
The device is operated:
S
• Outside of its technical specifications (e.g. during startup or a cleaning)
• Outside of the configuration carried out by the user (e.g. level outside configured
A0032904
span)
"Maintenance required"
Maintenance is required. The measured value is still valid.
A0032905
Display symbols for the locking state
Symbol
Meaning
Display parameter
Marks display-only parameters which can not be edited.
A0013148
Device locked
• In front of a parameter name: The device is locked via software and/or hardware.
• In the header of the measured value screen: The device is locked via hardware.
A0013150
Operation options
