Operating menu
Additional information
Table mode
Navigation
Prerequisite
Description
Selection
Factory setting
Additional information
160
H

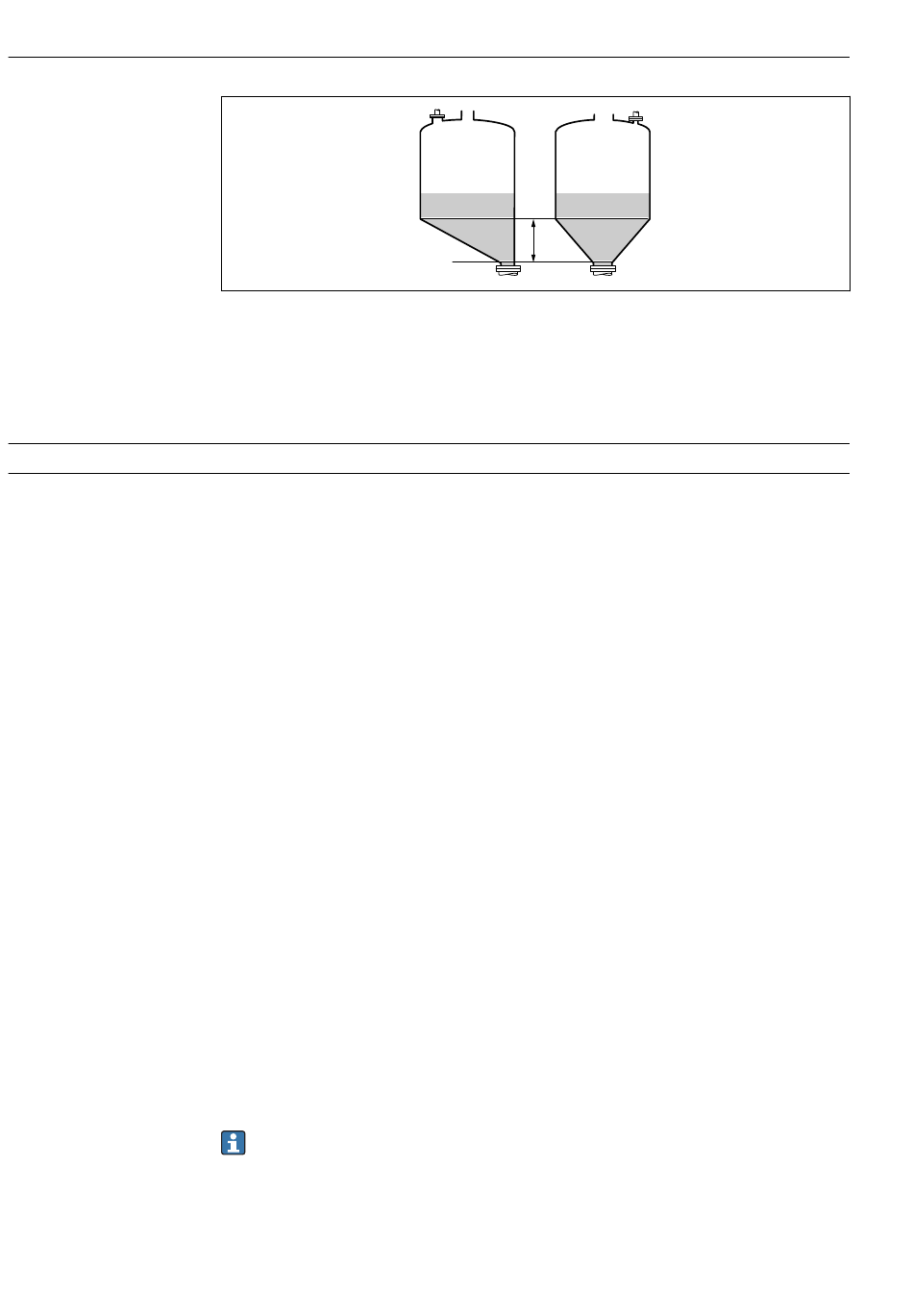

Intermediate height

The unit is defined in the Distance unit parameter (→  138).
 Setup → Advanced setup → Linearization → Table mode
Linearization type (→  156) = Table
Select editing mode of the linearization table.
• Manual
• Semiautomatic
• Clear table
• Sort table
Manual
Meaning of the options
• Manual
The level and the associated linearized value are entered manually for each linearization
point.
• Semiautomatic
The level is measured by the device for each linearization point. The associated
linearized value is entered manually.
• Clear table
Deletes the existing linearization table.
• Sort table
Rearranges the linerization points into an ascending order.
Conditions the linearization table must meet:
• The table may consist of up to 32 pairs of values "Level - Linearized Value".
• The table must be monotonic (monotonically increasing or decreasing).
• The first linearization point must refer to the minimum level.
• The last linearization point must refer to the maximum level.
Before entering a linearization table, the values for Empty calibration (→  139)
and Full calibration (→  139) must be set correctly.
If values of the table need to be changed after the full or empty calibration have been
changed, a correct evaluation is only ensured if the existing table is deleted and the
complete table is entered again. To do so delete the existing table (Table mode
(→  160) = Clear table). Then enter a new table.
H
0%
Levelflex FMP56, FMP57 HART
