Operation options
64
8.1.4
Remote operation
Via HART protocol
3
2
1
31

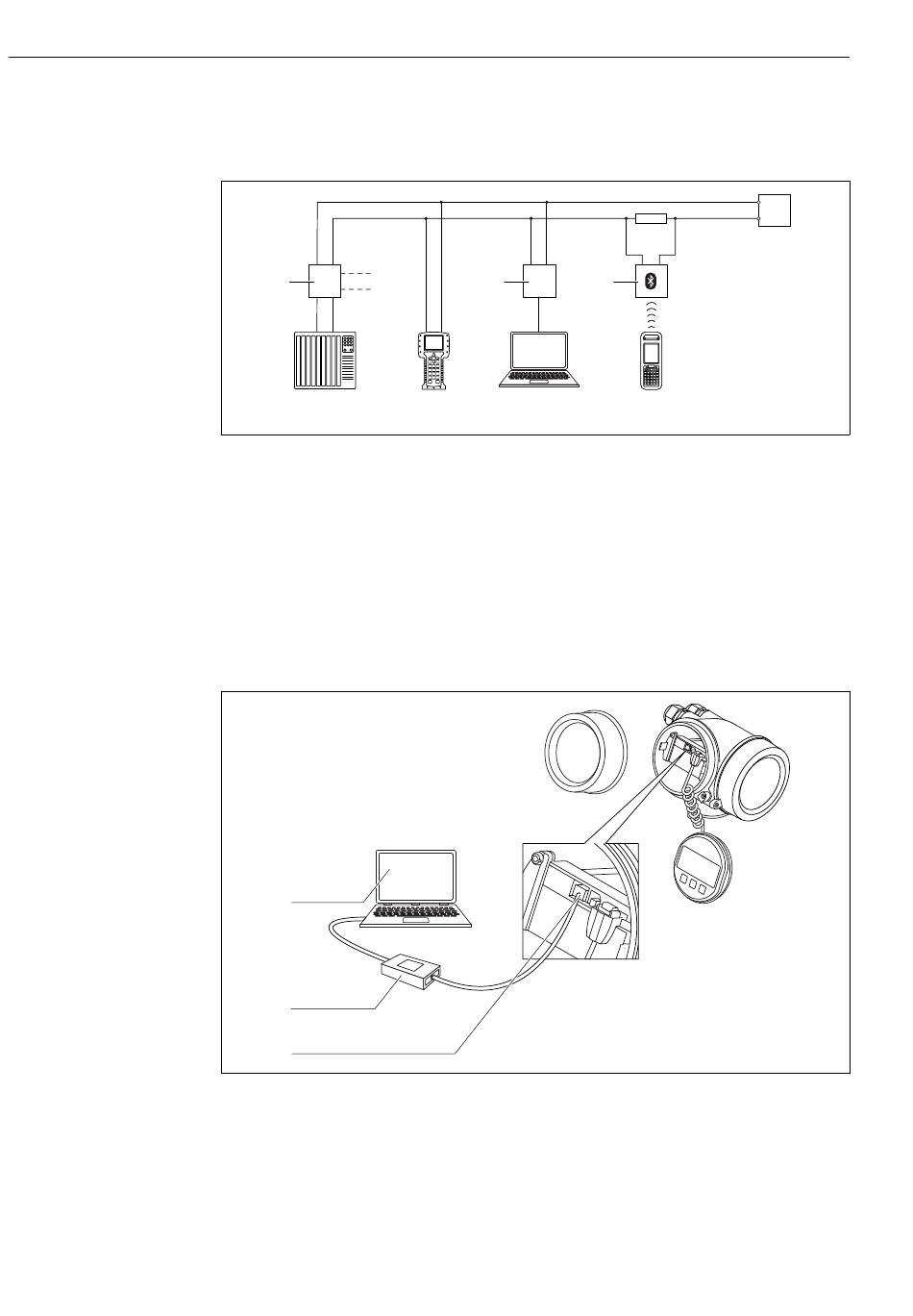

Options for remote operation via HART protocol
1
PLC (Programmable Logic Controller)
2
Transmitter power supply unit, e.g. RN221N (with communication resistor)
3
Connection for Commubox FXA191, FXA195 and Field Communicator 375, 475
4
Field Communicator 475
5
Computer with operating tool (e.g. DeviceCare/FieldCare , AMS Device Manager, SIMATIC PDM)
6
Commubox FXA191 (RS232) or FXA195 (USB)
7
Field Xpert SFX350/SFX370
8
VIATOR Bluetooth modem with connecting cable
9
Transmitter
DeviceCare/FieldCare via service interface (CDI)
3
2
1
32
DeviceCare/FieldCare via service interface (CDI)
1
Service interface (CDI) of the instrument (= Endress+Hauser Common Data Interface)
2
Commubox FXA291
3
Computer with DeviceCare/FieldCare operating tool
6
4
5
Levelflex FMP56, FMP57 HART
9
8
7
Endress+Hauser
A0036169
