Levelflex FMP56, FMP57 HART
Endress+Hauser

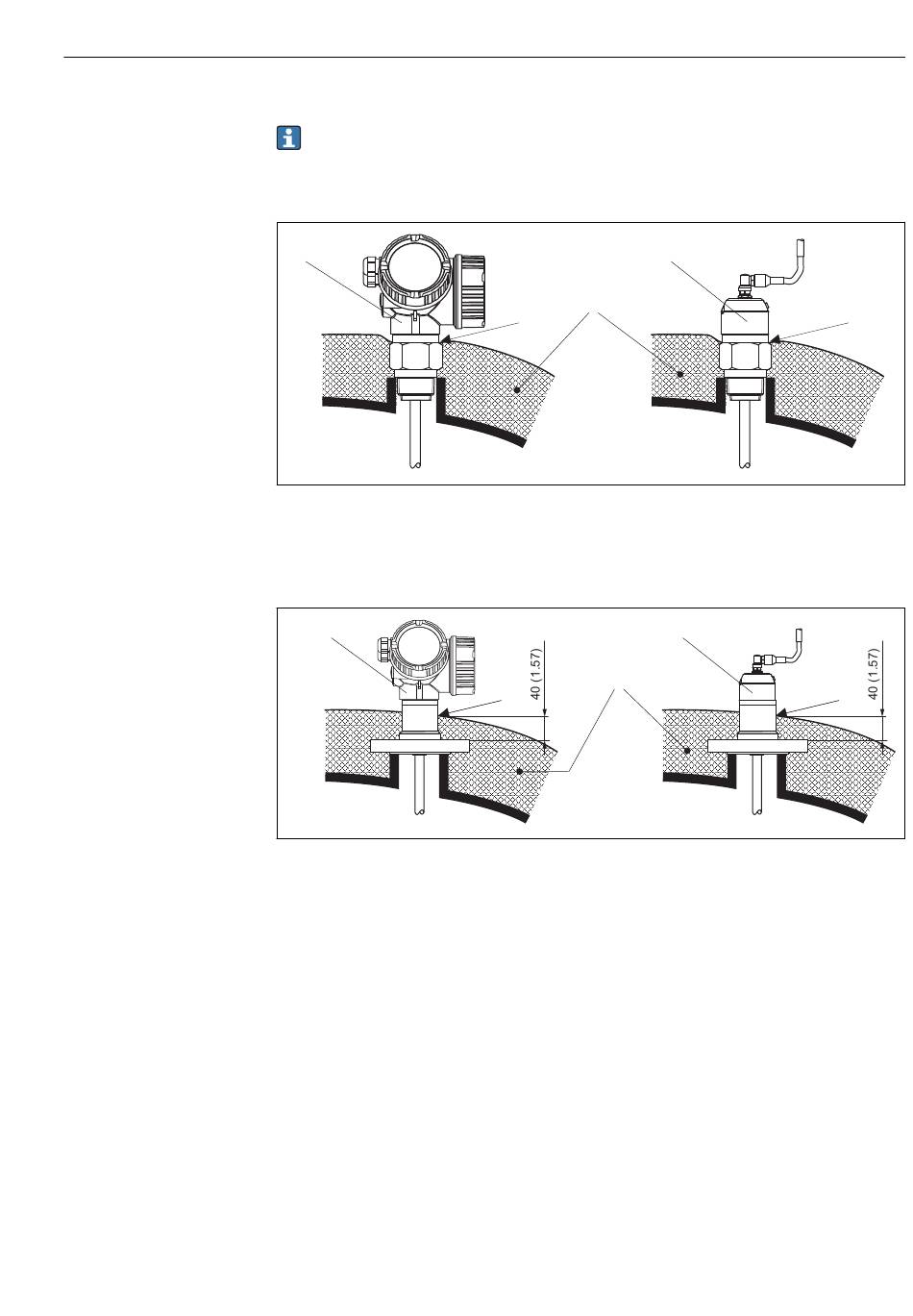

Vessels with heat insulation
If process temperatures are high, the device must be included in normal tank
insulation to prevent the electronics heating up as a result of heat radiation or
convection. The insulation may not exceed beyond the points labeled "MAX" in the
drawings.
2
 10 Process connection with thread - FMP56, FMP57
1 Tank insulation
2 Compact device
3 Sensor remote (feature 600)
2
mm (in)
 11 Process connection with flange - FMP57
1 Tank insulation
2 Compact device
3 Sensor remote (feature 600)
1
MAX
1
MAX
3
MAX
3
MAX
Mounting
A0014653
A0014654
