8. By wiping from the side, additional information (e.g. main menu) can be dragged
into the image


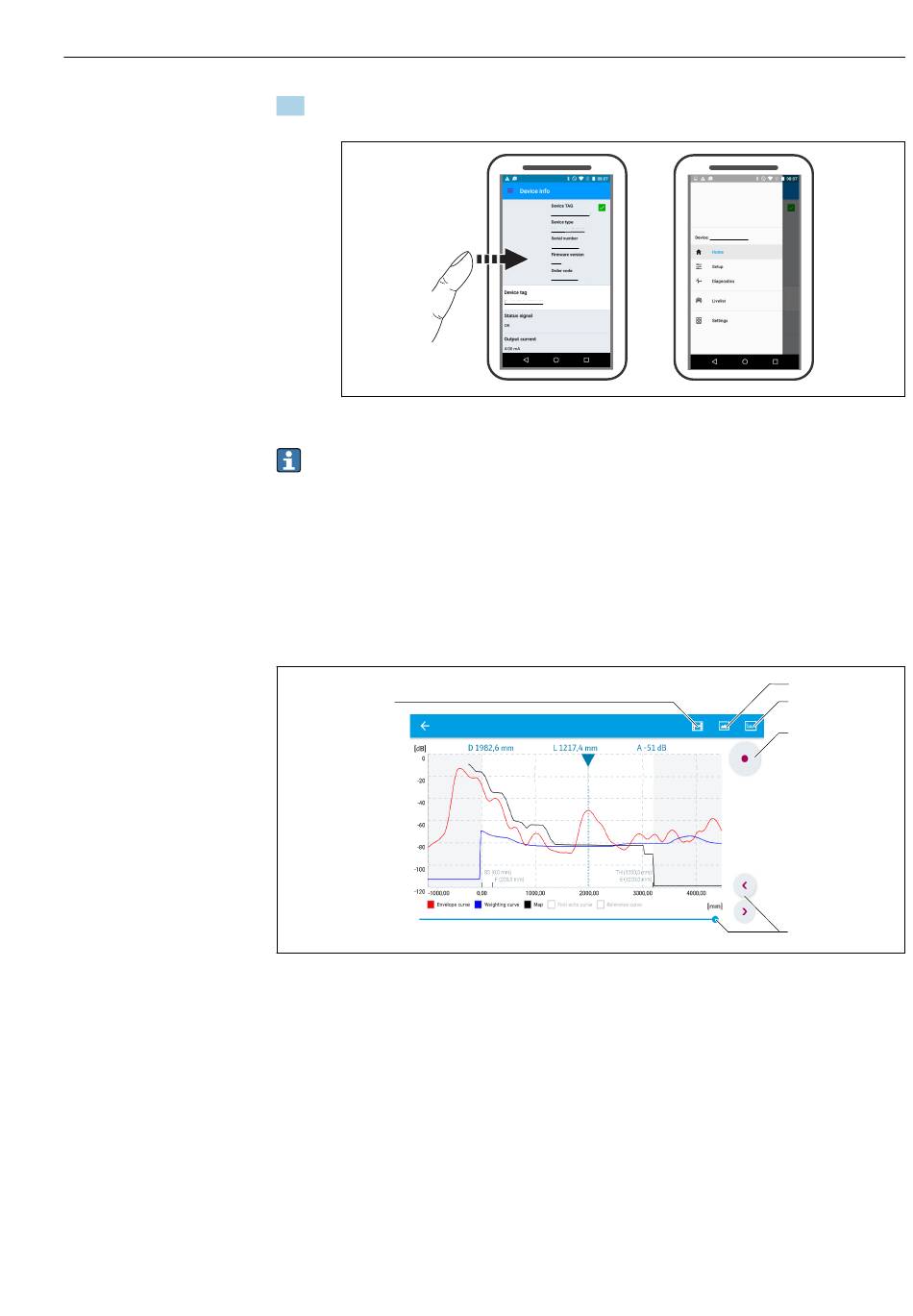

 39 Main menu
Envelope curves can be displayed and recorded
Additionally to the envelope curve, the following values are displayed:
• D = Distance
• L = Level
• A = Absolute amplitude
• In the case of screenshots, the displayed section (zoom function) is saved
• In video sequences, always the whole area without zoom function is saved
It is also possible to send envelope curves (video sequences) using the relevant
smartphone or tablet functions.
1
 40 Envelope curve display (example) in SmartBlue; Android view
1 Record video
2 Create screenshot
3 Navigation to mapping menu
4 Start / stop video recording
5 Move time on time axis
Commissioning via SmartBlue (app)
2
3
4
5
A0029504
