Phase 5 Coin Microprocessor Control Panel Assembly - ADC ADG-758 Parts Manual

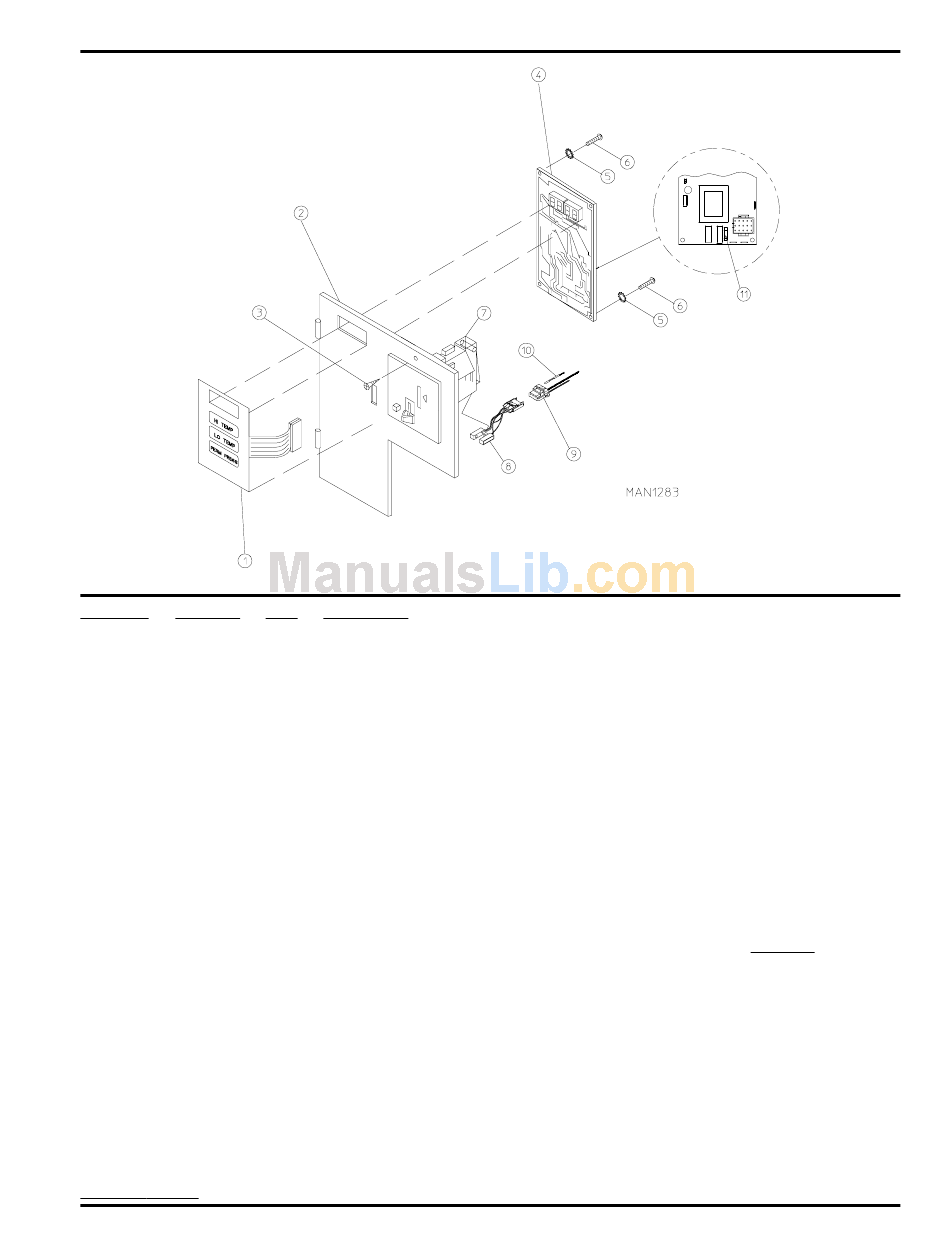

Phase 5 Coin Microprocessor Control Panel Assembly

Illus. No. Part No.
1 112526
2 801213
801229
801259
801258
3 150309
4 137213
824998
5 153010
6 150005
7 --------
8 137056*
9 137023*
10 137021*
880772
824080
122800
11 136048
* For dual coin models double the quantity shown.
IMPORTANT: Check label on computer chip to verify correct part number of controller (computer).
Telephone: (508) 678-9000
Qty. Description
1 Coin Keyboard Label Assembly
1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
1 Coin Control Panel
1 Coin Control Panel ONLY with Battery Bracket
1 #10-16 x 1/2" Hex Head TEK Crimptite Screw
1 Phase 5 Coin Microprocessor Controller (computer)
1 Phase 5 Battery Clip
2 #6 Star Washer
2 #6-32 x 1/4" Phillips Round Head Machine Screw
1 Coin Acceptor
(refer to Microprocessor Coin Acceptors Listing on page 39)
1 Optic Switch
1 Optic Switch Connector
3 Microprocessor Socket ONLY
1 Single Coin Optical Switch Harness
1 Dual Coin Optical Switch Harness
1 Microprocessor (female) Pin Extraction Tool
1 1/8-Amp (Slo-Blo) Fuse
5
