Idler Bearing Assembly - ADC ADG-758 Parts Manual

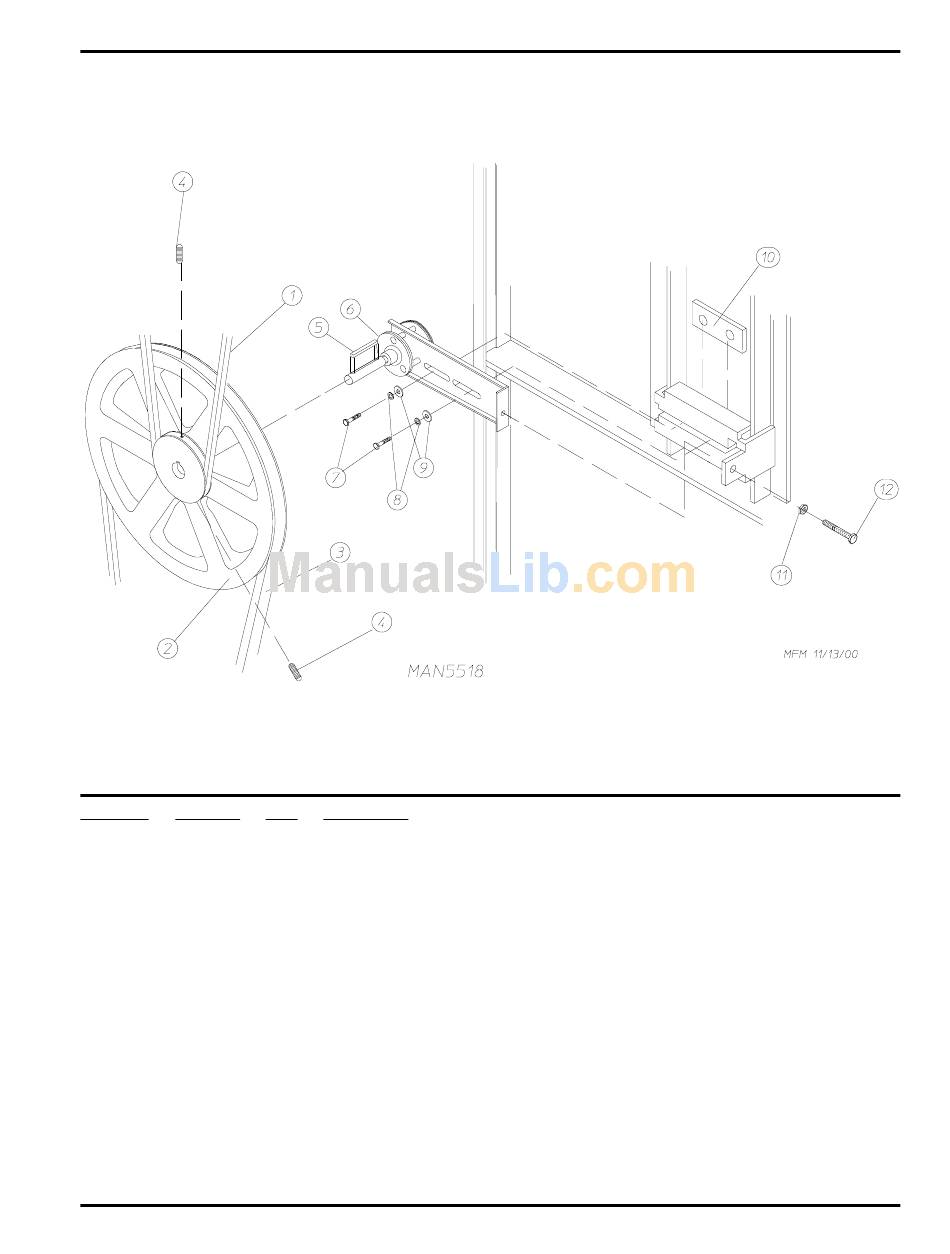

Idler Bearing Assembly

Illus. No. Part No.
1 100165
100106
2 101140
3 100166
100167
100109
4 154301
5 100705
6 882576
7 150617
8 153005
9 153004
10 801009
11 152004
12 150509
Telephone: (508) 678-9000
Qty. Description
1 5L-610 V-Belt (idler to basket [tumbler]) for Non-Reversing Models ONLY
1 5L-690 V-Belt (idler to basket [tumbler]) for Reversing Models ONLY
1 14" x 3" Compound Pulley
1 4L-790 V-Belt (idler to motor) 60 Hz (for non-reversing models Only)
1 4L-800 V-Belt (idler to motor) 50 Hz (for non-reversing models Only)
1 4L-650 V-Belt (idler to motor) 50/60 Hz (for reversing models Only)
2 5/16-18 x 1" Allen Setscrew
1 3/16" x 3/16" x 1-3/8" Key
1 Idler Bearing Assembly Complete
(includes illus. nos. 5 through 12)
2 3/8-16 x 1" Hex Head Machine Bolt
2 3/8" Lock Washer
2 3/8" Flat Washer
1 Idler Square Washer
1 5/16-18 Hex Nut
1 5/16-18 x 3" Hex Head Machine Bolt
21
