Dual Timer "Tap Touch" Controls For Models Mfd. As Of November 3, 2000 - ADC ADG-758 Parts Manual

8

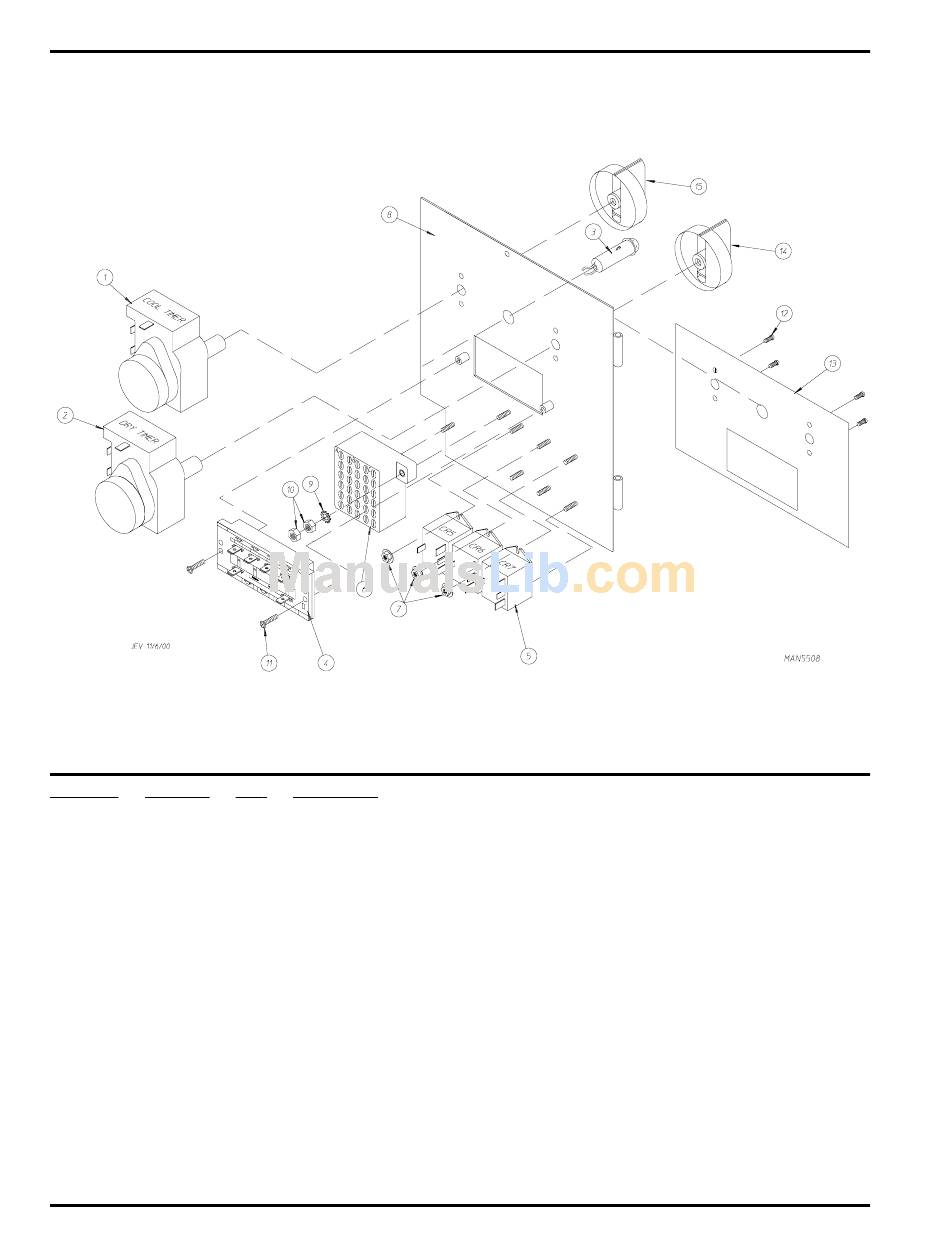

Illus. No. Part No.
1 124030
2 124025
3 824175
4 122301
5 131932
6 120730
7 151000
8 882903
850392
9 153010
10 152000
11 150207
12 150110
13 112563
14 124104
15 124105
American Dryer Corporation
Qty. Description
1 15 Minute Timer - 24 VAC
1 60 Minute Timer - 24 VAC
1 Red Pilot Light - 24 VAC
1 "Tap Touch" Switch
3 Relay SPST 24v
1 30-Position Terminal Block
6 #6-32 Pal Nut
1 Dual Timer Panel Complete
(includes illus. nos. 1 through 15)
- Dual Timer Panel ONLY
2 #6 Star Washer
3 #6-32 Hex Nut
2 #10-24 x 1/2" Phillips Pan Head Machine Screw
4 #8-32 x 1/4" Phillips Round Head Machine Screw
1 Dual Timer Panel Overlay
1 Pure Touch Knob with Red Pointer
1 Pure Touch Knob with Blue Pointer
Dual Timer "Tap Touch" Controls
For Models Mfd. as of November 3, 2000
