Drop Lint Door Assembly With Trim; For All Coin Models - ADC ADG-758 Parts Manual

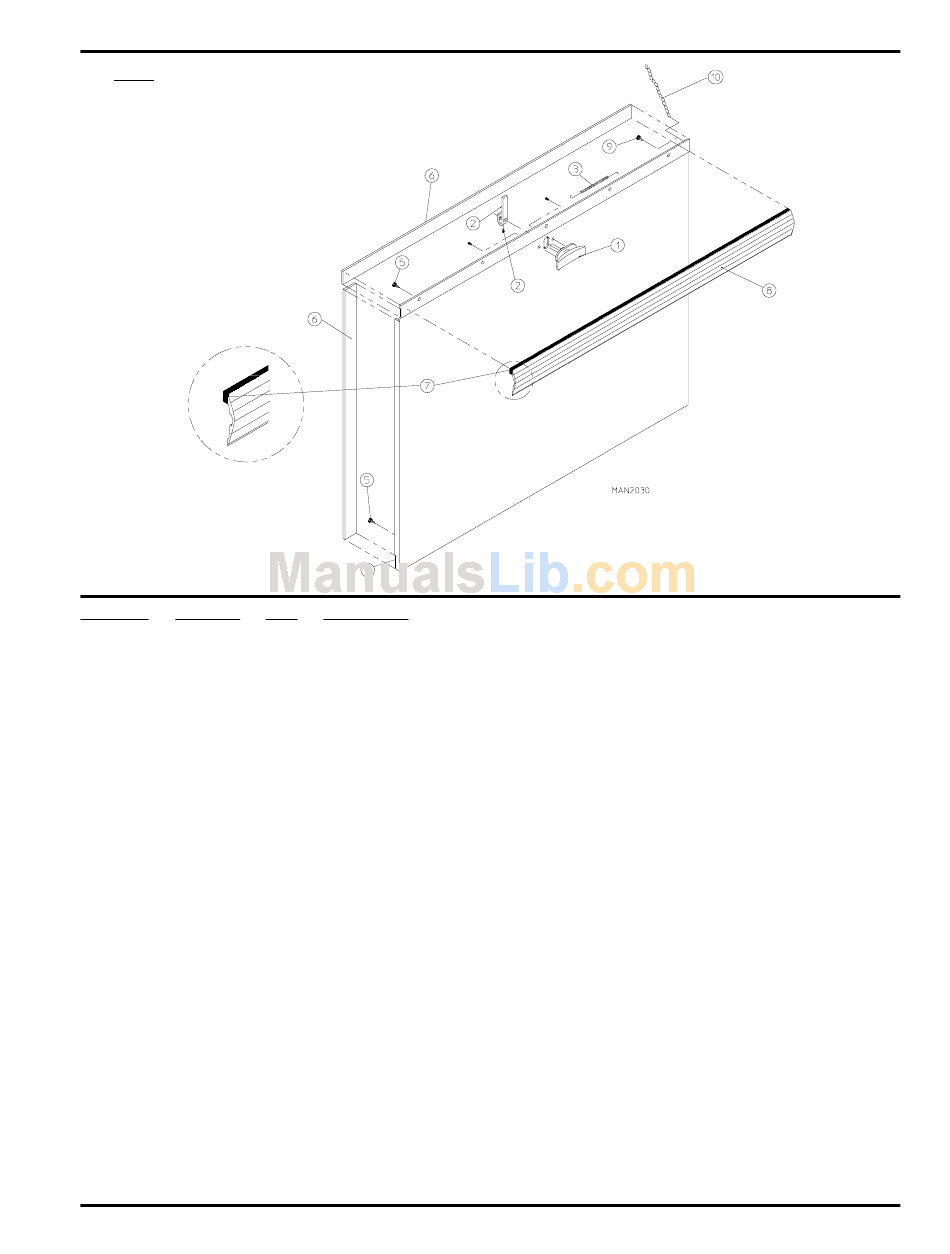

Drop Lint Door Assembly With Trim

For ALL Coin Models

Illus. No. Part No.
1 160001
160103
800150
160200
160003
160104
2 160008
160009
150425
3 157000
4 800237*
880229
5 150201
6 117604
7 117603
8 180212
9 150419
150418
10 108120
* Specify color when ordering.
Telephone: (508) 678-9000
Qty. Description
1 AD-100 Lock Assembly with Key (for coin models Only)
1 AD-100 Key ONLY
1 Knob Latch Kit Assembly
(includes illus. nos. 1 and 2)
1 Knob Latch ONLY with 2 Screws (without cam)
1 Dummy Lock ONLY (for non-coin models)
1 MK-100 Key ONLY (for dummy lock)
1 Lock Cam for AD-100 and Dummy Lock
1 Knob Latch Adjustable Cam ONLY
1 #12-24 x 3/8" Round Head Machine Screw ONLY
(screw for knob latch adjustable cam)
1 Drop Lint Door Spring
1 Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
1 Stainless Steel Insulated Drop Lint Drawer Assembly
(includes illus. nos. 4 through 8)
6 #10-32 x 1/4" Phillips Pan Head TEK Screw
7 Neoprene Sponge Tape (sold by the foot)
3 Noise Suppressor Tape (sold by the foot)
1 Mid Trim/Kick Plate - Gray (8-1/4" length)
2 #6 x 1/2" Tamperproof TEK Screw
1 Tamperproof Screw Hand Driver
1 Chain for Drop Lint Door (10-1/2" length)
