Basket (Tumbler)/Support Assemblies - ADC ADG-758 Parts Manual

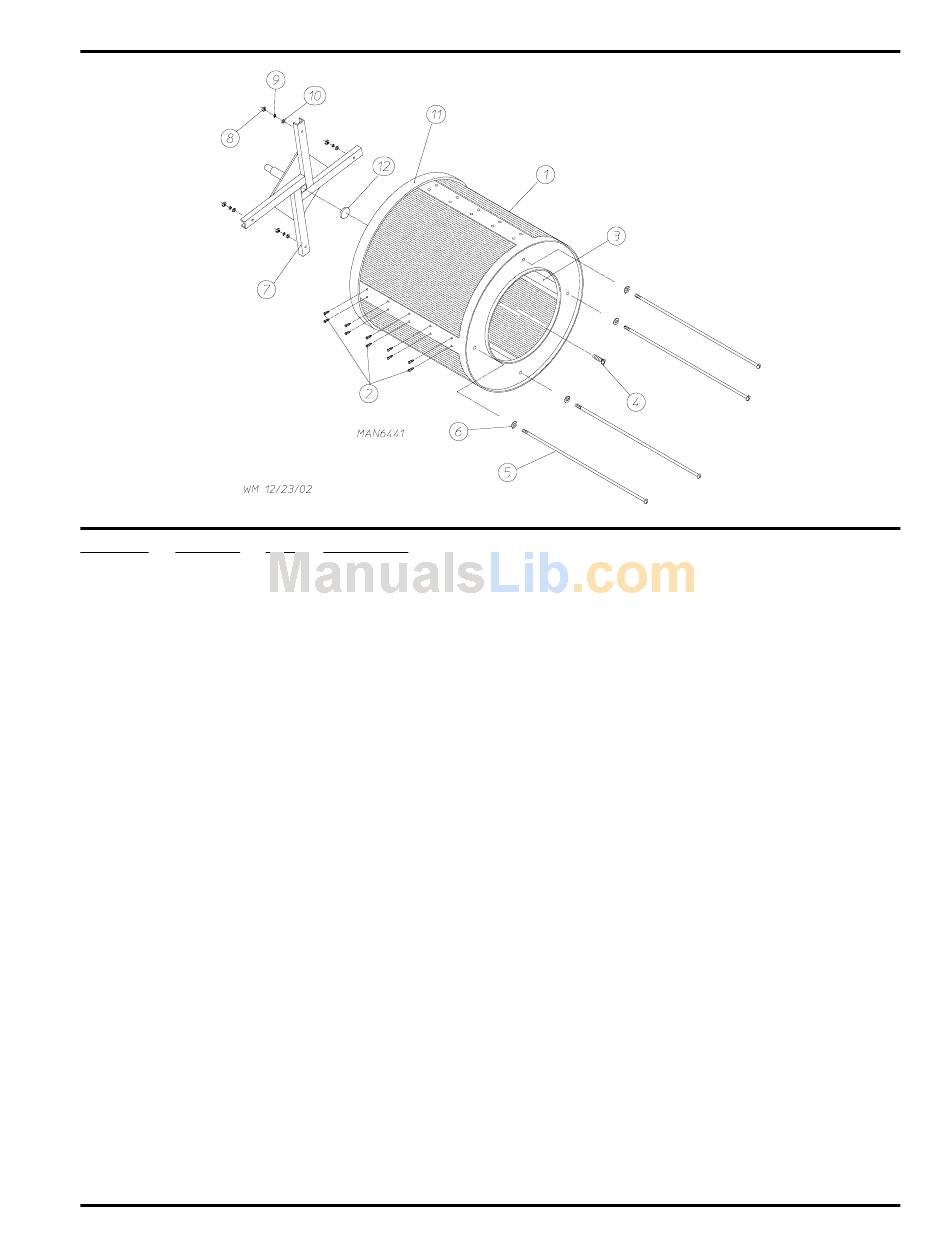

Basket (Tumbler)/Support Assemblies

Illus. No. Part No.
1* 800708
800857
800816
800819
800873
800876
2 150413
150429
3 301308
301408
4 150500
5 100905
6 153004
7 800613
800615
8 152005
9 153005
10 153004
11 116000
-- 401010
12 115986
* Felt collar is not included and must be ordered separately.
Telephone: (508) 678-9000
Qty. Description
1 Basket (tumbler) ONLY without Felt Collar
1 Stainless Steel Basket (tumbler) ONLY without Felt Collar
1 Non-Reversing Basket (tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10)
1 Reversing Basket (tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10)
1 Stainless Steel Non-Reversing Basket (tumbler) and Support Assembly
Complete
(includes illus. nos. 1 through 10)
1 Stainless Steel Reversing Basket (tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10)
40 #10-16 x 1/2" TORX Head Crimptite Screw
1 TORX Hand Driver (for removal of TORX head screw)
4 Basket (tumbler) Rib ONLY
4 Stainless Steel Basket (tumbler) Rib ONLY
1 5/16-18 x 3/4" Socket Button Head Screw
4 3/8-16 x 37" Tie Rod
4 3/8" Flat Washer
1 Non-Reversing Basket (tumbler) Support ONLY
1 Reversing Basket (tumbler) Support ONLY
4 3/8" Hex Nut
4 3/8" Lock Washer
4 3/8" Flat Washer
1 Felt Collar ONLY
1 #847 Adhesive for Felt Collar
1 1/4" x 2" Basket (tumbler) Pad
