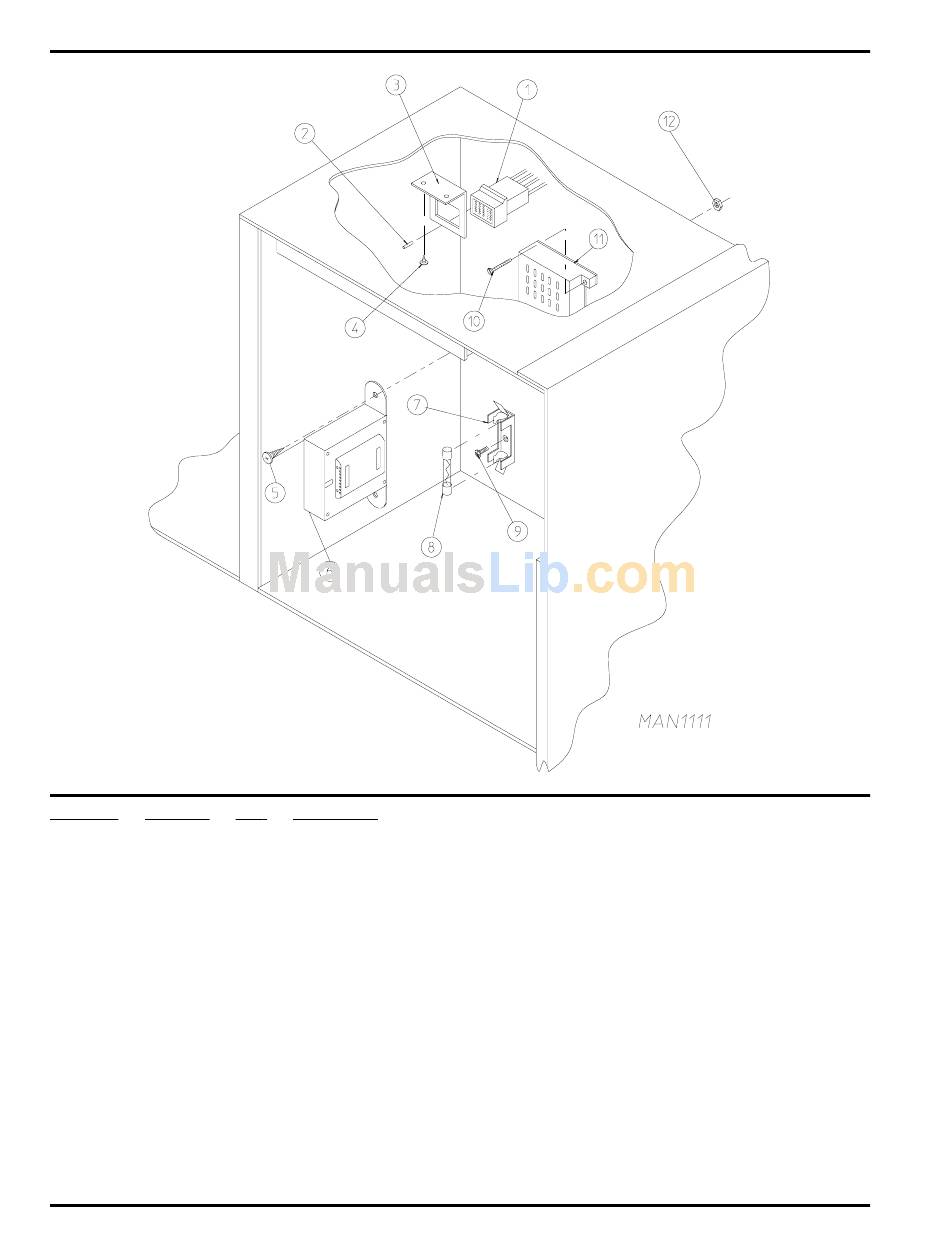

Dual Timer Control Box Assembly - ADC ADG-758 Parts Manual

10
Illus. No. Part No.
1 122603
2 122701
122801
3 315010
4 150300
5 150300
6 141403
7 136008
8** 136057
9 150301
10 150002
11 120715
12 151000
* As required.
** Check fuse rating for verification.
American Dryer Corporation
Qty. Description
1 9-Pin Socket Connector
8 Socket Terminal
1 Pin/Socket Extraction Tool
1 9-Pin Connector Bracket
2 #10-16 x 1/2" Hex Washer TEK Screw
2 #10-16 x 1/2" Hex Washer TEK Screw
1 Transformer - 24 VAC
* Fuse Block/Strip
* 1/2-Amp (Slo-Blo) Fuse
* #8-18 x 7/16" Phillips Pan Head TEK Screw
2 #6-32 x 1" Phillips Round Head Machine Screw
1 30-Position Terminal Block
2 #6-32 Pal Nut

Dual Timer Control Box Assembly
