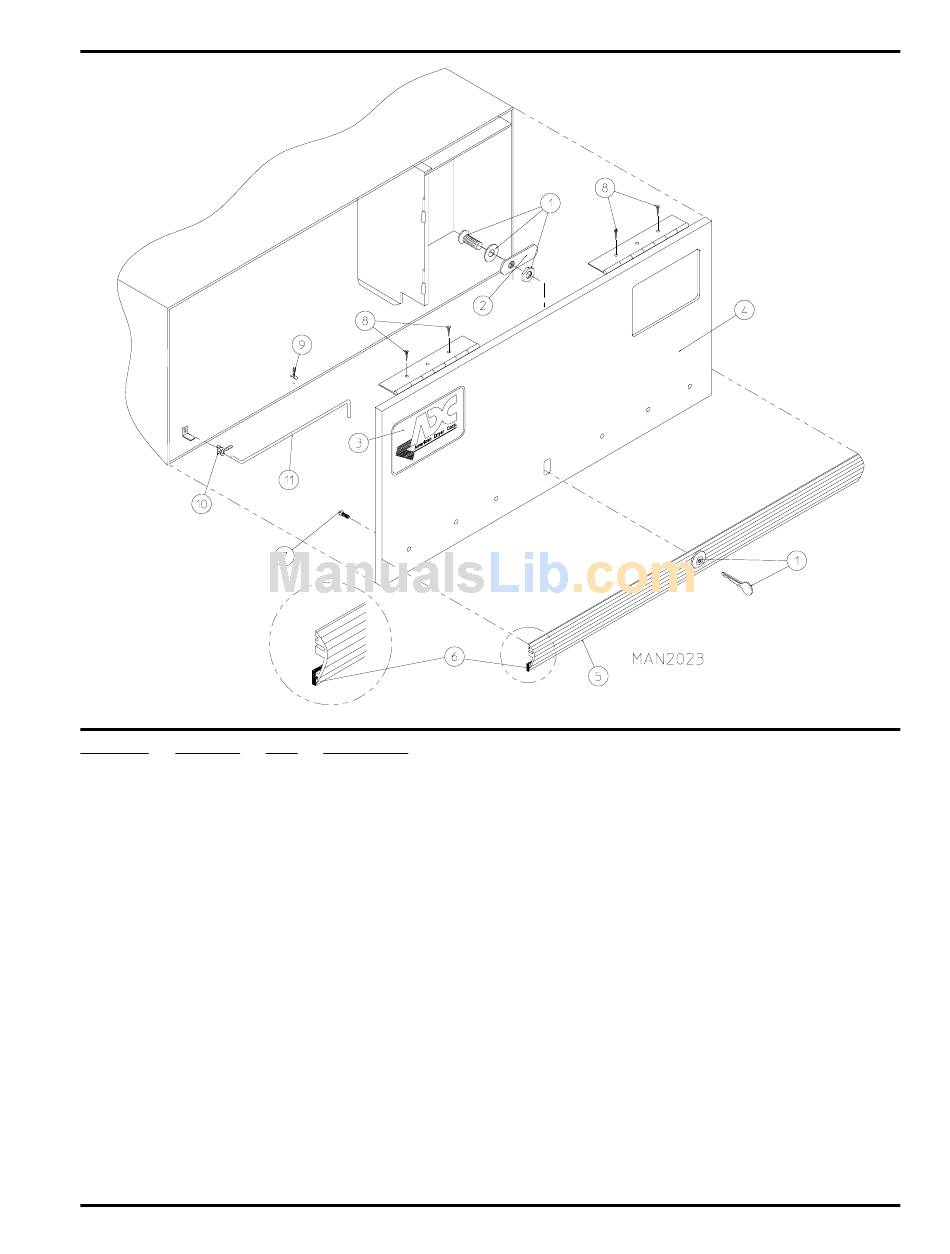

Control Door Assembly With Trim

Illus. No. Part No.
1 160015
160017
160104
2 160016
3 881053
870011
4 800020*
800144
5 180202
6 117603
7 150201
8 150309
9 102600
10 102601
11 102502
* Specify color when ordering.
Telephone: (508) 678-9000
Qty. Description
1 High Security MK-100 Lock Assembly with Key (for coin models Only)
1 Special Dummy Lock (for non-coin models Only)
1 MK-100 Key
1 Lock Cam
1 ADC Logo
1 Logo Double Tape Kit
1 High Security Control Door Assembly
(includes illus. nos. 4 through 7)
1 Stainless Steel High Security Control Door Assembly
(includes illus. nos. 4 through 7)
1 Top Trim Strip (gray) with Lock Hole (38-1/4" length)
3 Suppressor Tape/Gasket (sold by the foot)
6 #10-32 x 1/4" Phillips Round Head Machine Screw
4 #10-16 x 1/2" Hex Head TEK Crimptite Screw
1 Control Door Rod Support Catch
1 Control Door Rod Retainer Clip
1 Control Door Support Rod
