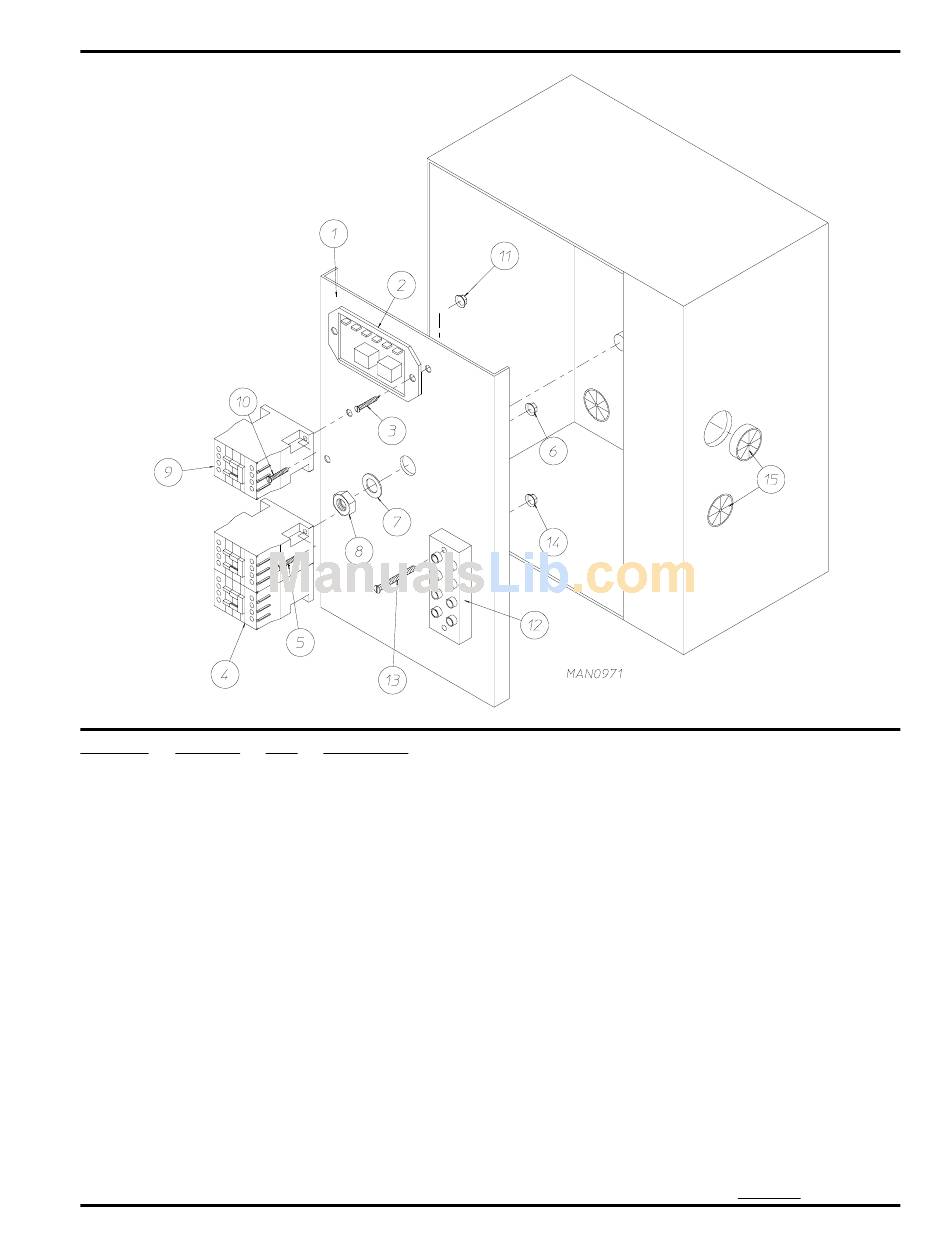

Dual Timer Reversing Rear Control Box Assembly
Illus. No.
Part No.
1
322812
2
132198
3
150301
4
882386
5
150103
6
151001
7
153002
8
152004
9
132430
10
150103
11
151001
12
120701
13
150008
14
151000
15
121300
---
322809
---
150301
---
--------
Telephone: (508) 678-9000
Qty.
Description
1
Back Electrical Box Component Plate
1
Reversing Timer (50/60 Hz) 24 VAC
2
#8-18 x 7/16" Phillips Pan Head TEK Screw
1
Reversing Contactor (208/230/240v, 50/60 Hz) 24 VAC
2
#8-32 x 3/4" Phillips Round Head Machine Screw
2
#8-32 Pal Nut
1
5/16" Lock Washer
1
5/16-18 Hex Nut
1
Impellor Contactor (208/230/240v, 50/60 Hz) 24 VAC
2
#8-32 x 3/4" Phillips Round Head Machine Screw
2
#8-32 Pal Nut
1
4-Position Terminal Block
2
#6-32 x 1-1/4" Slotted Round Head Machine Screw
2
#6-32 Pal Nut
3
Open/Closed Bushing
1
Back Electrical Box Cover...Not Illustrated
4
#8-18 x 7/16" Phillips Pan Head TEK Screw...Not Illustrated
1
Transformer
(refer to Step Down Transformer Usage Listing on page 40)
