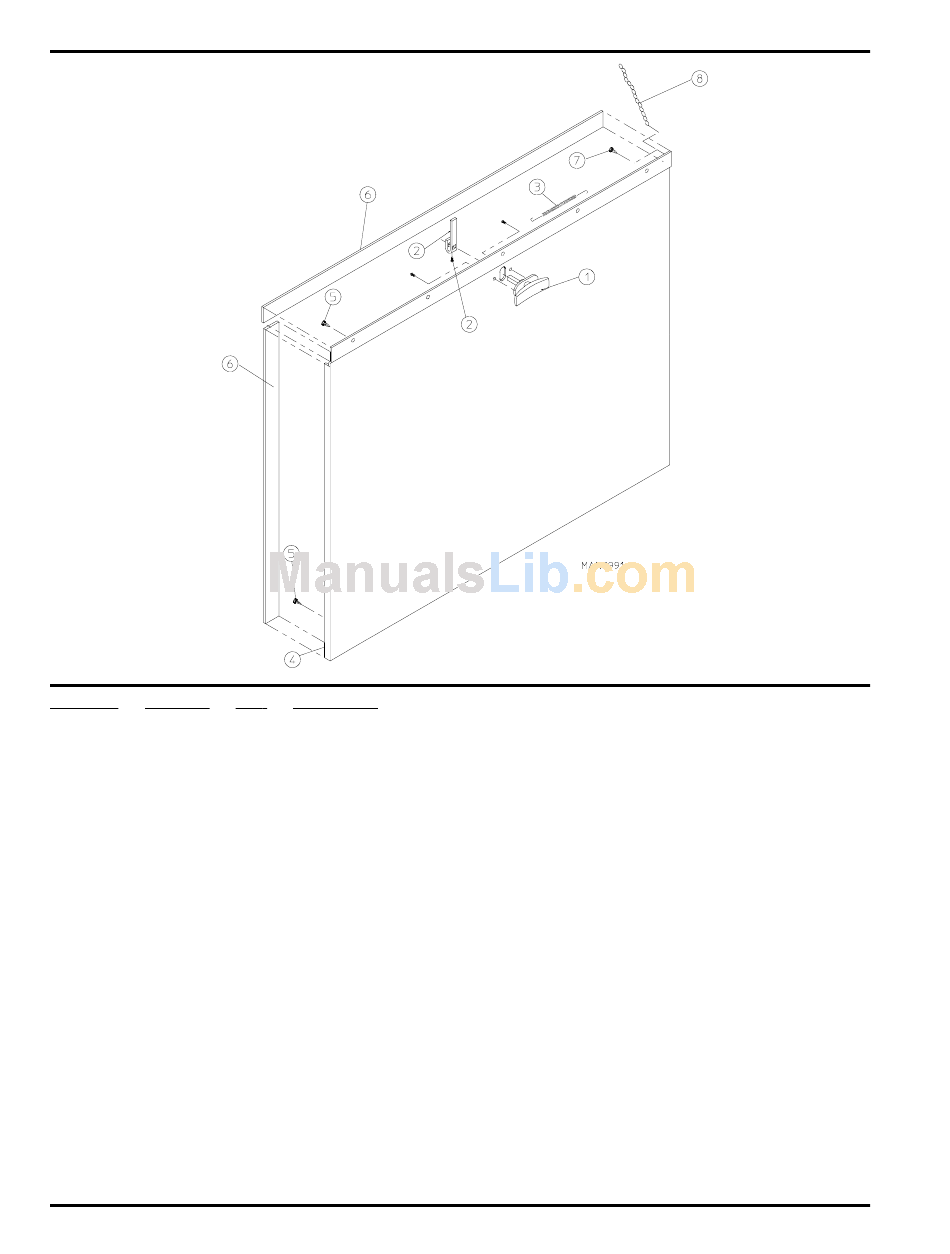

Drop Lint Door Assembly Without Trim - ADC ADG-758 Parts Manual

18
Illus. No. Part No.
1 800150
160200
160003
160104
2 160008
160009
150425
3 157000
4 802104*
882106
5 150201
6 117604
7 150419
150418
8 108120
* Specify color when ordering.
American Dryer Corporation
Qty. Description
1 Knob Latch Kit Assembly
(includes illus. nos. 1 and 2)
1 Knob Latch ONLY with 2 Screws (without cam)
1 Dummy Lock ONLY (for non-coin models)
1 MK-100 Key ONLY (for dummy lock)
1 Lock Cam for AD-100 and Dummy Lock
1 Knob Latch Adjustable Cam ONLY
1 #12-24 x 3/8" Round Head Machine Screw ONLY
(screw for knob latch adjustable cam)
1 Drop Lint Door Spring
1 Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
1 Stainless Steel Insulated Drop Lint Drawer Assembly
(includes illus. nos. 4 through 8)
6 #10-32 x 1/4" Phillips Pan Head TEK Screw
7 Neoprene Sponge Tape (sold by the foot)
2 #6 x 1/2" Tamperproof TEK Screw
1 Tamperproof Screw Hand Driver
1 Chain for Drop Lint Door (10-1/2" length)

Drop Lint Door Assembly Without Trim
